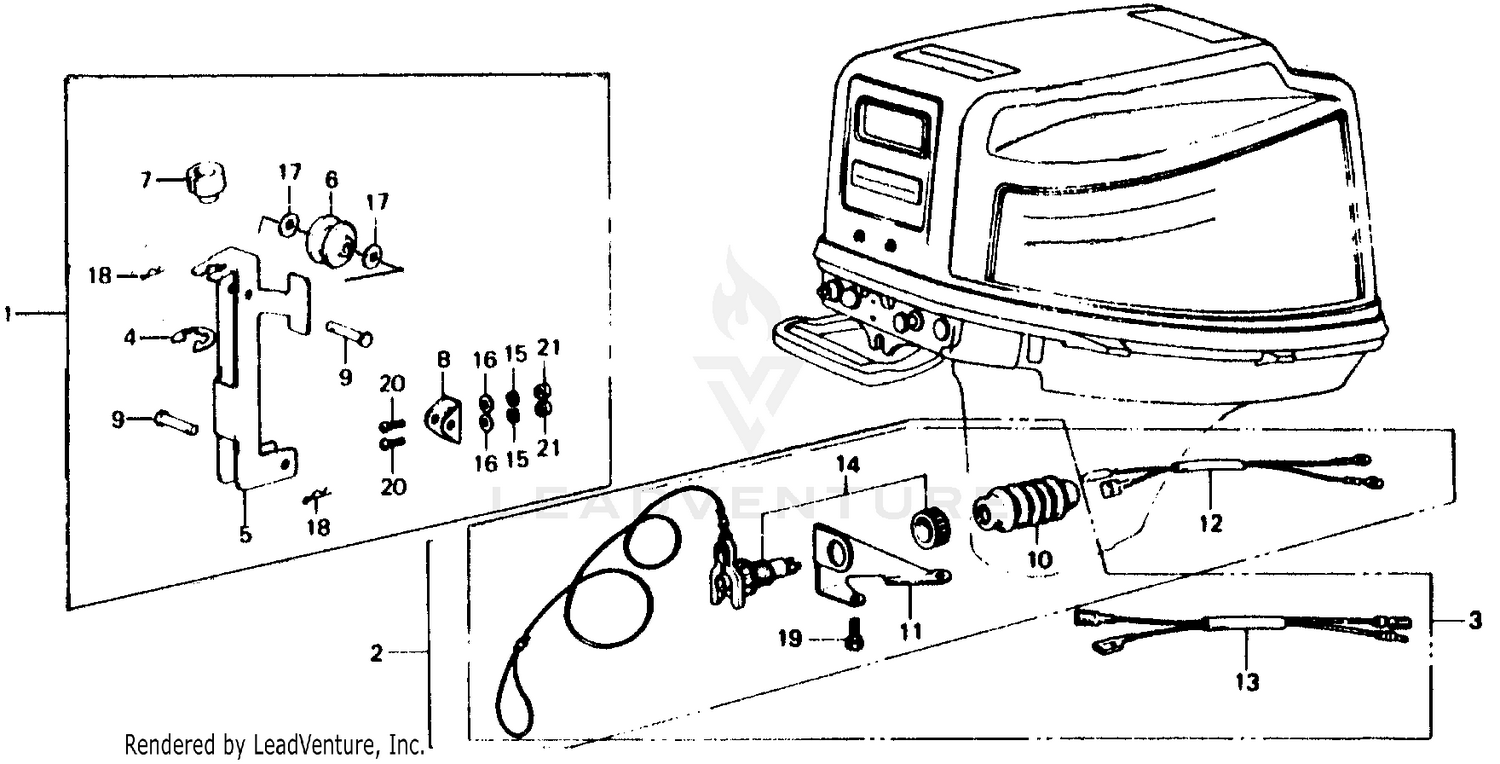

| Ref | Part Number | Description |
|---|
| 1 |
06280-881-810 |
STARTER KIT, VERTICAL (N/A: SEE COMPONENTS) Price: Call Us |
| 3 |
06360-881-506 |
SWITCH KIT, SAFETY This part replaces 06360-881-812. Price: $77.80 |
| 4 |
28457-921-000 |
E-RING Price: $5.44 |
| 5 |
28480-881-810 |
STAY, VERTICAL STARTER Price: $86.18 |
| 6 |
28481-881-810 |
IDLER, VERTICAL STARTER Price: $59.26 |
| 7 |
28482-881-810 |
GUIDE, ROPE Price: $15.86 |
| 8 |
28483-881-810 |
BRACKET, VERTICAL STARTER Price: $10.20 |
| 9 |
28484-881-810 |
PIN, VERTICAL STARTER Price: $33.44 |
| 10 |
36102-881-810 |
RUBBER, SEALING (NOT AVAILABLE) Price: Call Us |
| 11 |
36103-881-810 |
STAY, SAFETY SWITCH (NOT AVAILABLE) Price: $22.94 |
| 13 |
36105-881-813 |
SEE PART DETAILS - PRI; WIRE B, SWITCH This part replaces 36105-881-812. Price: Call Us |
| 14 |
36106-881-515 |
SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY This part replaces 36106-881-810. Price: Call Us |
| 15 |
90407-920-000 |
WASHER, SPRING (6MM) Price: $1.42 |
| 16 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 17 |
90513-921-000 |
WASHER (10MM) Price: $2.68 |
| 18 |
91402-881-000 |
PIN, LOCK (10MM) Price: $2.32 |
| 19 |
92101-06012-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X12) Price: $2.58 |
| 20 |
93500-06012-4J |
SEE PART DETAILS - PRI; SCREW, PAN (6X12) Price: $1.88 |
