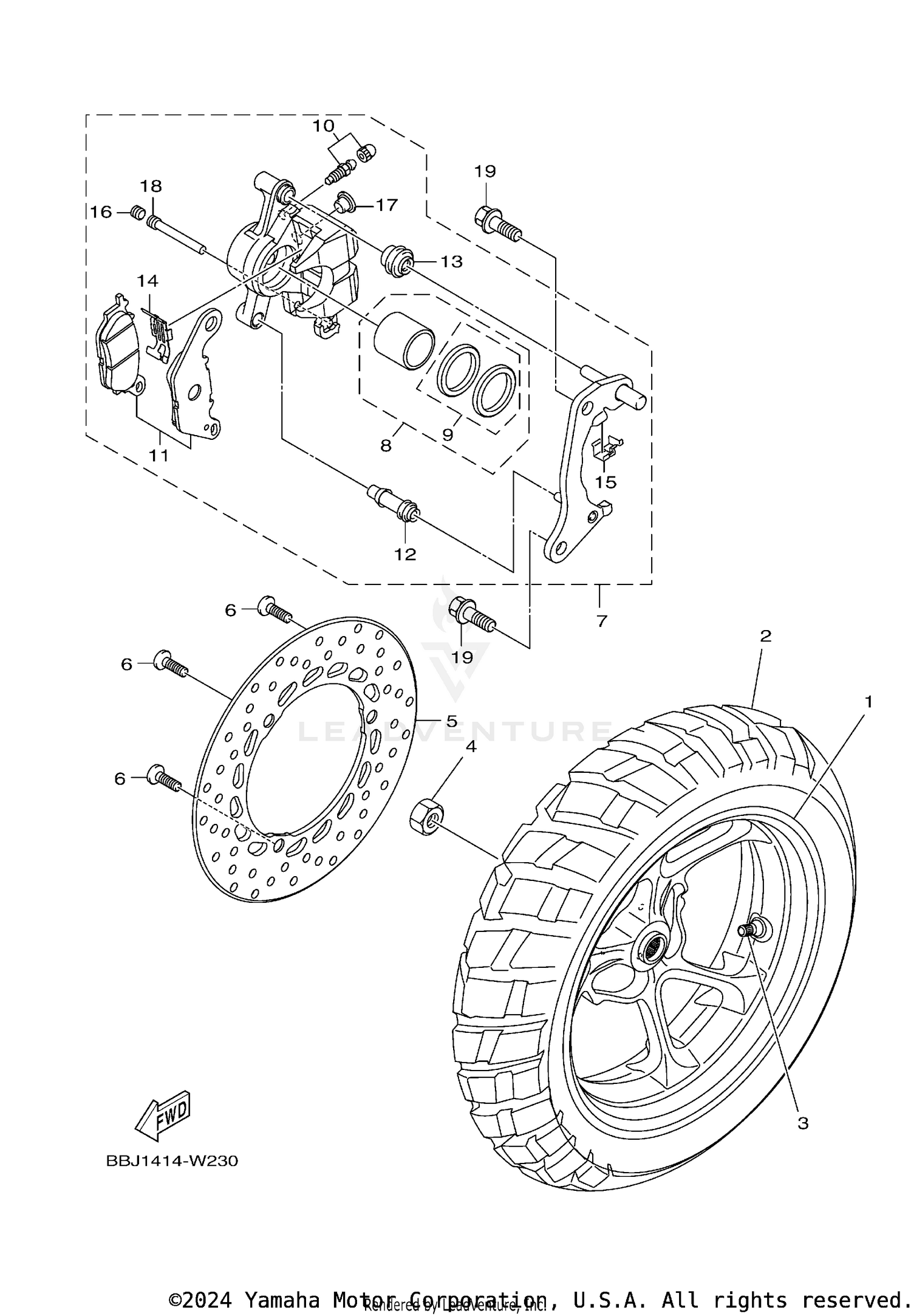

| Ref | Part Number | Description |
|---|
| 2 |
94113-12808-00 |
TIRE Price: $143.99 |
| 3 |
93900-00839-00 |
VALVE, RIM Price: $6.49 |
| 4 |
90185-16800-00 |
NUT, SELF-LOCKING Price: $8.49 |
| 5 |
B8R-F582W-00-00 |
DISK, REAR BRAKE 2 Price: $91.99 |
| 6 |
90109-08232-00 |
BOLT Price: $1.60 |
| 7 |
B8R-F580W-01-00 |
CALIPER ASSY, REAR This part replaces B8R-F580W-00-00. Price: $116.99 |
| 8 |
1DK-W0057-10-00 |
PISTON ASSY, CALIPER Price: $12.49 |
| 9 |
5S9-W0047-00-00 |
CALIPER SEAL KIT Price: $8.49 |
| 10 |
1MS-W0048-00-00 |
BLEED SCREW KIT Price: $2.25 |
| 11 |
2JS-W0046-30-00 |
BRAKE PAD KIT 2 Price: $29.99 |
| 12 |
5ML-F5927-00-00 |
BOOT, CALIPER Price: $2.50 |
| 13 |
5ML-F5937-00-00 |
BOOT 2 Price: $1.60 |
| 14 |
1DK-F5919-00-00 |
SUPPORT, PAD Price: $2.40 |
| 15 |
1DK-F5919-10-00 |
SUPPORT, PAD Price: $2.40 |
| 16 |
1MS-F5139-00-00 |
PLUG, BLIND Price: $1.10 |
| 17 |
5AG-F5845-00-00 |
CAP, INDICATOR Price: $1.15 |
| 18 |
1DK-F5924-00-00 |
PIN, PAD Price: $3.55 |
