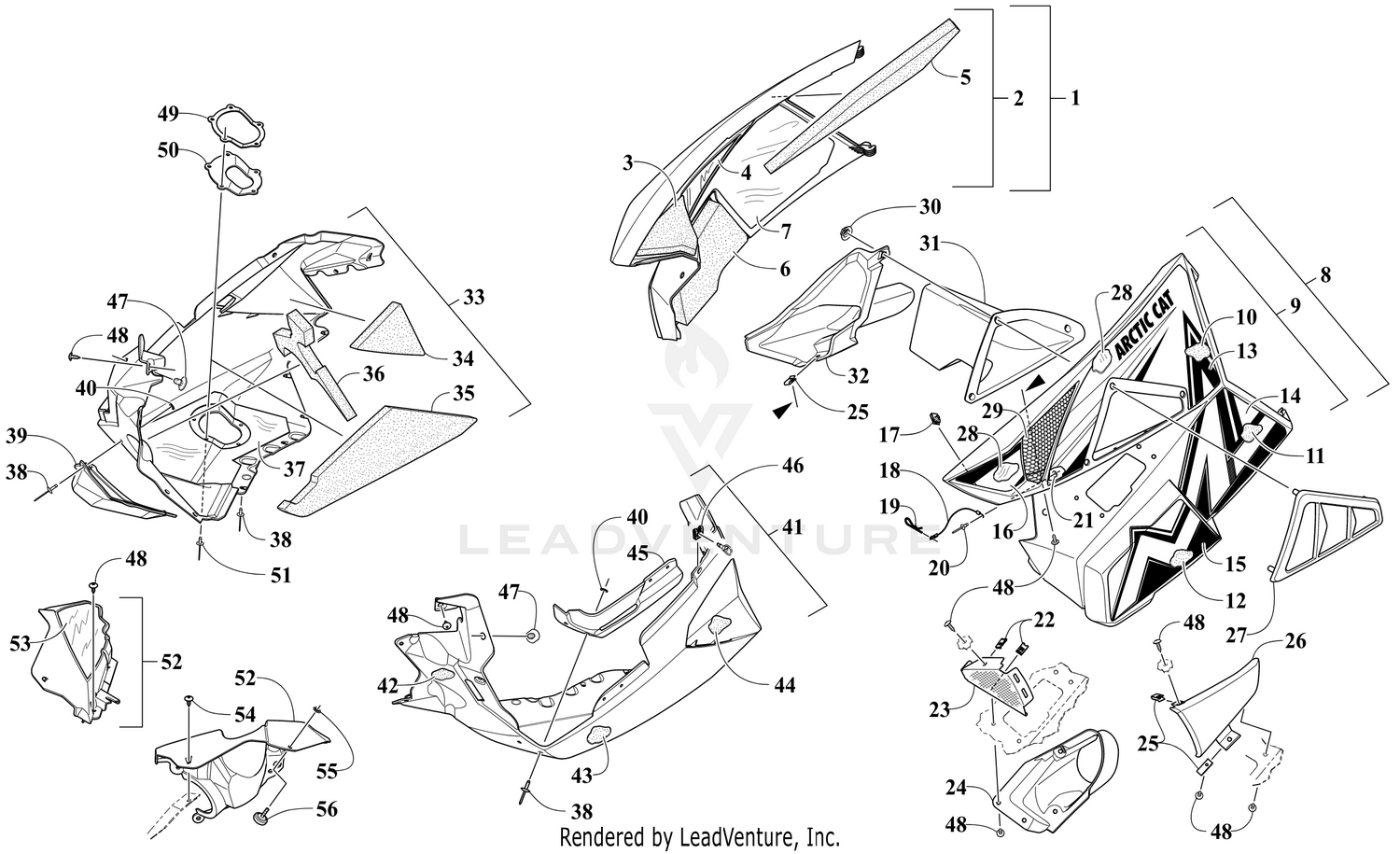

SKID PLATE AND SIDE PANEL ASSEMBLY [106180]

Parts (53)

Ref	Part Number	Description
3	0617-626	Foam, Side Panel - Upper Front - Right Price: $5.09
4	6606-414	Foil, Protective Price: $17.95
5	0617-628	Foam, Side Panel - Upper Rear - Right Price: $45.95
6	0617-632	Foam, Side Panel - Lower Front - Right Price: $24.20
7	6606-416	Foil, Protective Price: $4.23
10	0617-669	Foam, Side Panel - Upper Rear - Left Price: $14.49
11	0617-635	Foam, Side Panel - Lower Rear - Left Price: $19.29
12	0617-681	Foam, Side Panel - Lower Front - Left Price: $7.23
13	2621-490	Decal, Side Panel - Upper Rear - Right - Green Price: $47.95
13	2621-493	Decal, Side Panel - Upper - Left - Green Price: $4.58
14	2621-498	Decal, Side Panel - Lower Rear - Right - Green Price: $35.95
14	2621-499	Decal, Side Panel - Lower Rear - Left - Green Price: $35.95
15	2621-496	Decal, Side Panel - Lower Forward - Right - Green Price: $19.35
15	2621-497	Decal, Side Panel - Lower Forward - Left - Green Price: $19.35
16	2621-494	Decal, Side Panel - Upper Front - Right - Green Price: $6.06
16	2621-495	Decal, Side Panel - Upper Front - Left - Green Price: $6.06
17	1623-637	Clip, U-Nut Price: $2.61
18	0607-447	Cable Price: $11.02
19	0605-283	Clip, Hairpin Price: $2.29
20	8060-486	Rivet Price: $0.29
21	8050-127	Washer Price: $1.57
22	1623-052	Clip, U-Nut Price: $1.08
23	6606-925	Screen, Intake Price: $36.95
24	2602-794	Duct, Intake - Inner Price: $71.95
25	1623-030	Clip, U-Nut Price: $1.08
26	2602-801	Duct, Intake - Outer - Green Price: $6.95
27	0608-648	Vent, Heat Duct Price: $22.99
28	0619-206	Foil, Protective Price: $237.95
29	5706-531	Screen, Intake Price: $22.99
30	1623-469	Nut, Stamped Price: $1.32
31	0708-596	Duct, Heat Price: $21.95
32	1702-367	Duct, Air - Clutch Price: $47.47
34	0617-640	Foam, Skid Plate - Upper Rear - Right Price: $4.23
35	0617-638	Foam, Skid Plate - Center Front - Right Price: $17.95
36	0617-636	Foam, Skid Plate - Upper Front - Right Price: $45.95
37	2612-850	Foil, Protective Price: $12.95
38	8061-708	Rivet Price: $1.08
39	2612-754	Deflector, Heat Price: $31.95
40	0123-802	Washer Price: $0.23
42	0617-637	Foam, Skid Plate - Upper Front - Left Price: $7.95
43	0617-639	Foam, Skid Plate - Center Front - Left Price: $19.35
44	0617-641	Foam, Skid Plate - Upper Rear - Left Price: $4.72
45	6606-613	Panel, Reinforcement Price: $14.49
46	2623-005	Clip, Retaining Price: $2.91
47	6606-592	Pin, Retaining Price: $3.88
48	1623-129	Screw, Self-Tapping Price: $0.29
49	2612-796	Plate, Exhaust Outlet Price: $28.95
50	2612-799	Seal, Exhaust Outlet Price: $4.29
51	8061-710	Rivet Price: $1.20
52	6606-351	Fascia, Front - Left - Black Price: $149.95
53	6606-404	Foil, Protective Price: $3.14
54	0623-784	Screw, Self-Tapping Price: $0.09
55	2623-001	RETAINER,PUSHNUT - 3/16" STUD Price: $0.48
