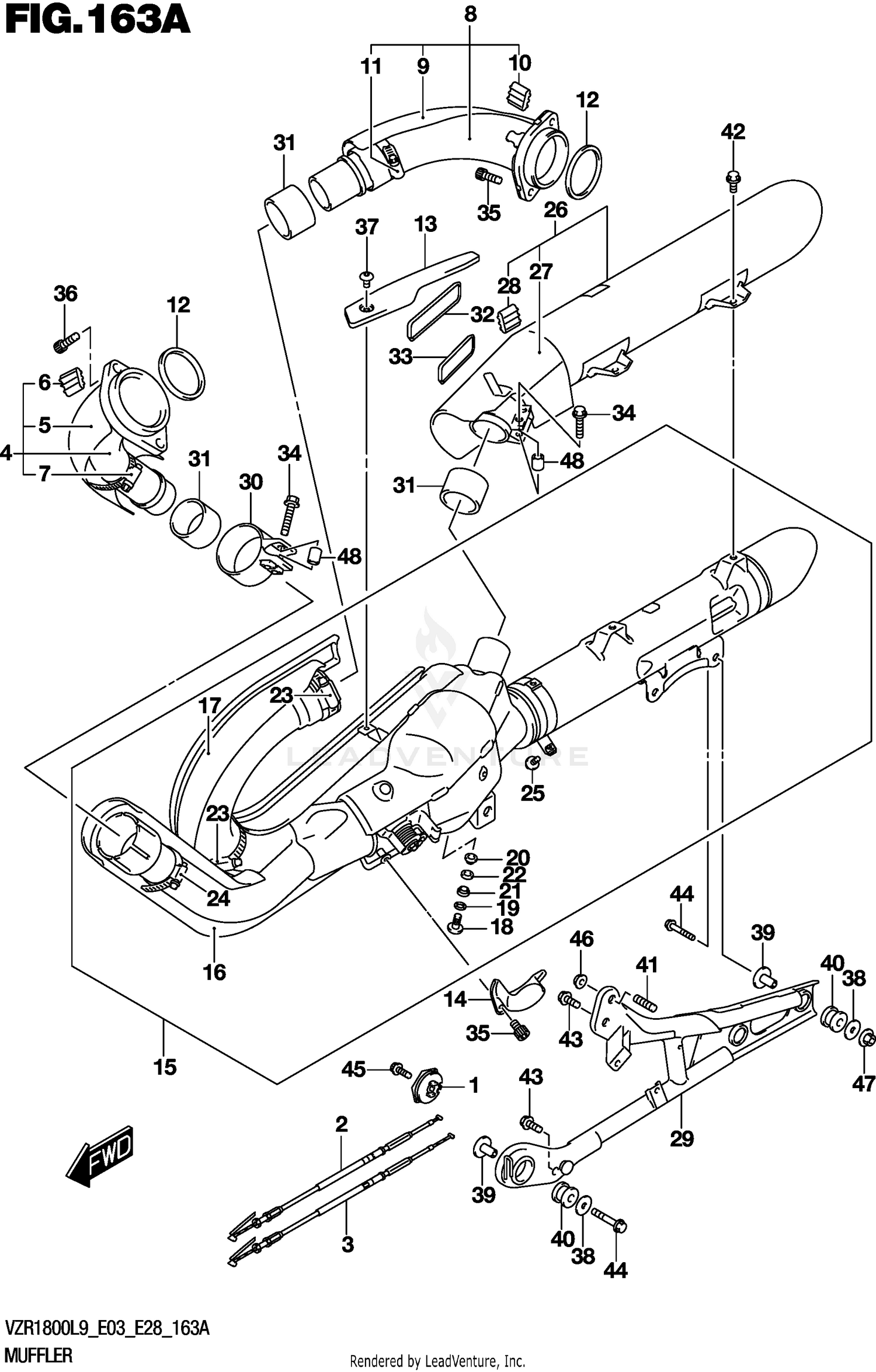

| Ref | Part Number | Description |
|---|
| 1 |
11269-18G01 |
PULLEY,CONTROLLER Price: $31.10 |
| 2 |
11276-48G00 |
CABLE,EXH VALVE NO.1 Price: $59.67 |
| 3 |
11277-48G00 |
CABLE,EXH VALVE NO.2 Price: $59.67 |
| 4 |
14150-48G30 |
PIPE,EXH FR Price: $331.64 |
| 6 |
14795-10FA0 |
GROMMET Price: $7.10 |
| 8 |
14160-48G20 |
PIPE,EXH RR Price: $393.76 |
| 10 |
14795-10FA0 |
GROMMET Price: $7.10 |
| 13 |
14260-48G00 |
COVER,EXH RR UP Price: $168.56 |
| 14 |
14280-48G00 |
COVER,EXH VALVE Price: $26.96 |
| 15 |
14305-48G50-H01 |
MUFFLER,FR (BLACK/MAROON/SILV Price: $3,076.64 |
| 18 |
09139-06028 |
SCREW (6X20) Price: $4.50 |
| 20 |
09180-06331 |
SPACER (6.2X8.4X10.9) Price: $5.01 |
| 21 |
09320-08080 |
CUSHION Price: $9.93 |
| 22 |
09320-08081 |
CUSHION Price: $8.99 |
| 26 |
14340-48G30-H01 |
BODY,MUFFLER RR (BLACK/MAROON Price: $1,166.98 |
| 28 |
14795-10FA0 |
GROMMET Price: $7.10 |
| 29 |
14410-48G00 |
BRACKET,MUF SPRT Price: $262.93 |
| 30 |
14459-48G00 |
CLAMP Price: $26.67 |
| 31 |
14771-42F31 |
CONNECTOR,MUFFLER Price: $29.54 |
| 32 |
14780-48G01 |
PROTECTOR,FR Price: $40.49 |
| 33 |
14790-48G10 |
PROTECTOR,RR Price: $33.96 |
| 35 |
09106-06075 |
BOLT (6X12) Price: $3.02 |
| 36 |
09106-08178 |
BOLT (8X25) Price: $4.01 |
| 37 |
09139-06122 |
SCREW (6X10) Price: $3.76 |
| 38 |
09160-08146 |
WASHER (8.5X33X1.5) Price: $3.02 |
| 39 |
09180-08156 |
SPACER (8.6X12X25.5) Price: $8.28 |
| 40 |
09320-12049 |
CUSHION Price: $13.00 |
| 41 |
01411-0820A |
BOLT,STUD Price: $2.03 |
| 42 |
14425-48G00 |
BOLT Price: $4.26 |
| 43 |
14425-48G00 |
BOLT Price: $4.26 |
| 44 |
01550-0845A |
BOLT Price: $3.89 |
| 45 |
07120-0516A |
BOLT Price: $2.77 |
| 46 |
08319-3108A |
NUT Price: $2.79 |
| 47 |
08361-2508A |
NUT Price: $2.37 |
