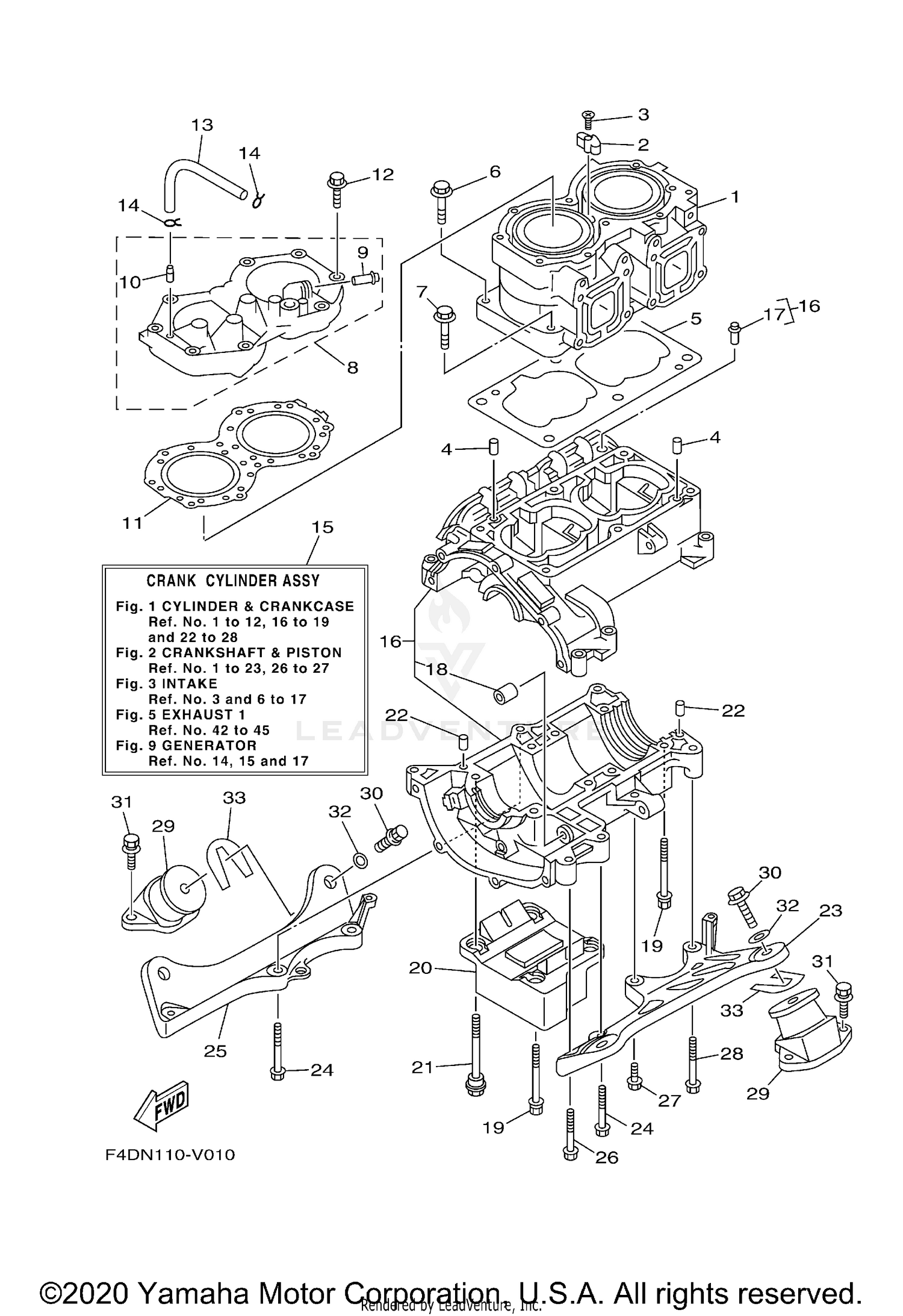

| Ref | Part Number | Description |
|---|
| 1 |
61X-11311-01-8S |
CYLINDER 1 Price: $789.99 |
| 2 |
6E5-11325-00-00 |
ANODE Price: $5.50 |
| 3 |
98780-04014-00 |
SCREW,FLAT HEAD This part replaces 98780-04015-00. Price: $3.55 |
| 4 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 5 |
6M6-11351-A2-00 |
GASKET, CYLINDER Price: $18.49 |
| 6 |
90119-10M56-00 |
BOLT, WITH WASHER Price: $10.49 |
| 7 |
90119-10M07-00 |
BOLT, WITH WASHER Price: $5.49 |
| 8 |
64U-11111-00-8S |
HEAD, CYLINDER 1 Price: $358.99 |
| 9 |
6K8-51129-00-00 |
NIPPLE Price: $12.99 |
| 10 |
6R7-14485-00-00 |
PIPE, JOINT Price: $11.99 |
| 11 |
62T-11181-01-00 |
GASKET, CYLINDER HEAD 1 Price: $59.49 |
| 12 |
90119-08M96-00 |
BOLT, WITH WASHER Price: $3.99 |
| 13 |
90445-07M19-00 |
HOSE (L200) Price: $10.49 |
| 14 |
90467-06016-00 |
CLIP Price: $3.20 |
| 15 |
64V-W0090-02-8S |
CRANK CYLINDER ASSY Price: $3,684.49 |
| 16 |
62T-15100-00-00 |
CRANKCASE ASSY This part replaces 62T-15100-00-8S. Price: $816.49 |
| 17 |
62T-14251-10-00 |
NIPPLE Price: $4.99 |
| 18 |
90380-12M29-00 |
BUSH, SOLID Price: $13.99 |
| 19 |
90119-08M55-00 |
BOLT, WITH WASHER Price: $3.99 |
| 20 |
6BA-44532-00-00 |
STOPPER, UPPER MOUNT Price: $128.99 |
| 21 |
90109-08M56-00 |
BOLT Price: $4.49 |
| 22 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 23 |
6R7-21415-01-00 |
BRACKET, FRONT UPPER 1 This part replaces 6R7-21415-01-94. Price: $133.49 |
| 24 |
90119-10M23-00 |
BOLT, WITH WASHER This part replaces 90119-10M02-00. Price: $10.49 |
| 25 |
6R7-21425-01-00 |
BRACKET, REAR UPPER 1 This part replaces 6R7-21425-01-94. Price: $140.99 |
| 26 |
90119-10M01-00 |
BOLT, WITH WASHER Price: $9.99 |
| 27 |
90119-10M00-00 |
BOLT, WITH WASHER Price: $10.49 |
| 28 |
90119-10M03-00 |
BOLT, WITH WASHER Price: $9.99 |
| 29 |
6R7-44517-00-8S |
MOUNT RUBBER Price: $91.49 |
| 30 |
90119-08904-00 |
BOLT, WITH WASHER Price: $3.49 |
| 31 |
90119-08038-00 |
BOLT, WITH WASHER Price: $5.49 |
| 32 |
EU0-67324-00-00 |
PLATE Price: $10.99 |
