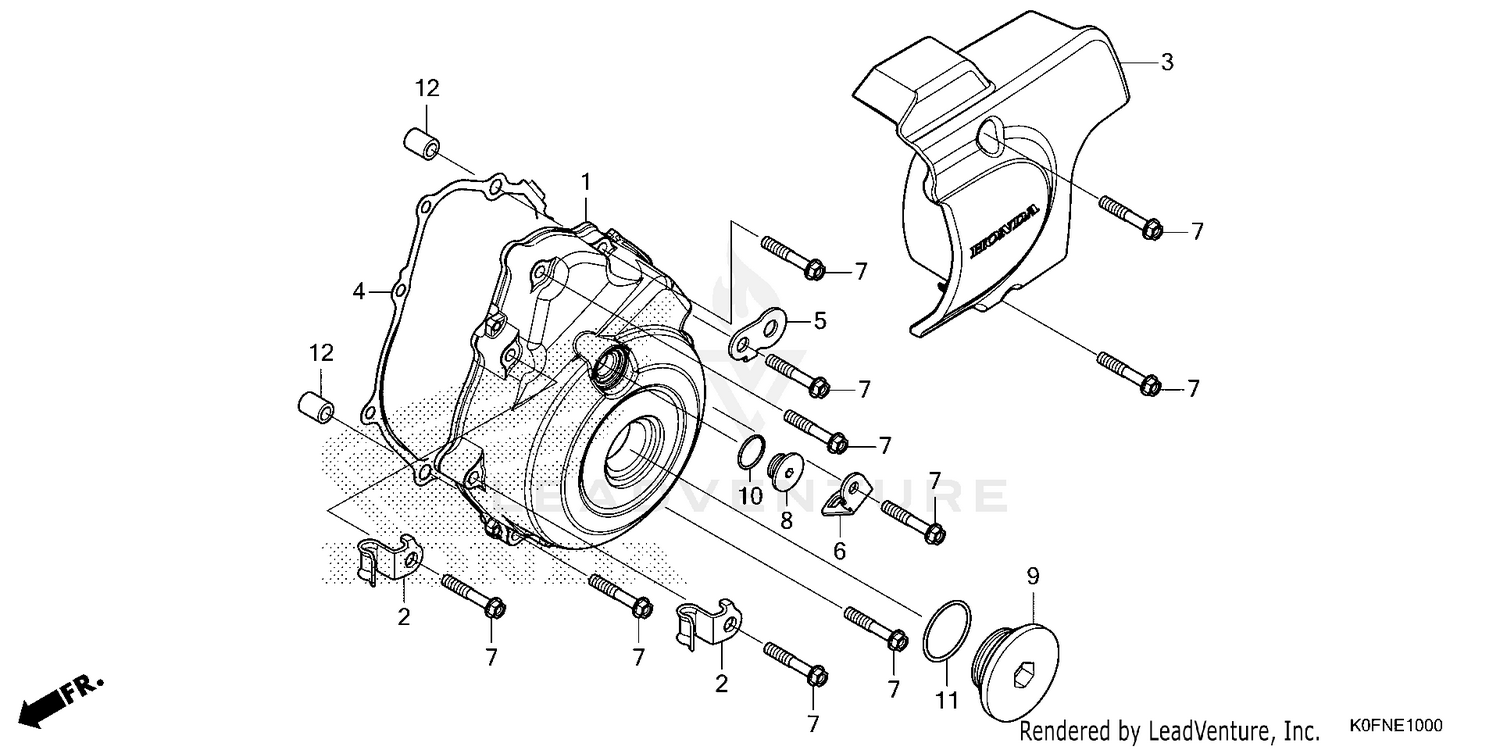

LEFT CRANKCASE COVER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11341-K0F-T60 | COVER, L. CRANKCASE Price: $55.71 |
| 2 | 11346-KTR-940 | CLAMP A, OIL TEMP SENSOR CORD Price: $0.96 |
| 3 | 11360-K0F-T60 | COVER ASSY., L. RR. Price: $73.42 |
| 4 | 11395-K1M-T02 | GASKET, L. CRANKCASE COVER (NICHIAS) Price: $1.80 |
| 5 | 32157-MJM-D00 | STAY, HARNESS CLIP Price: $5.25 |
| 6 | 35711-K0F-D70 | STAY Price: $3.62 |
| 7 | 90004-K0G-T20 | BOLT, FLANGE (6X35) Price: $1.25 |
| 8 | 90084-K0F-T00 | CAP (14MM) Price: $17.20 |
| 9 | 90087-K0F-T00 | CAP (30MM) Price: $22.93 |
| 10 | 91308-KVR-C00 | O-RING (13.8X2.5) Price: $2.01 |
| 11 | 91356-KWV-000 | O-RING (30MM) Price: $1.58 |
