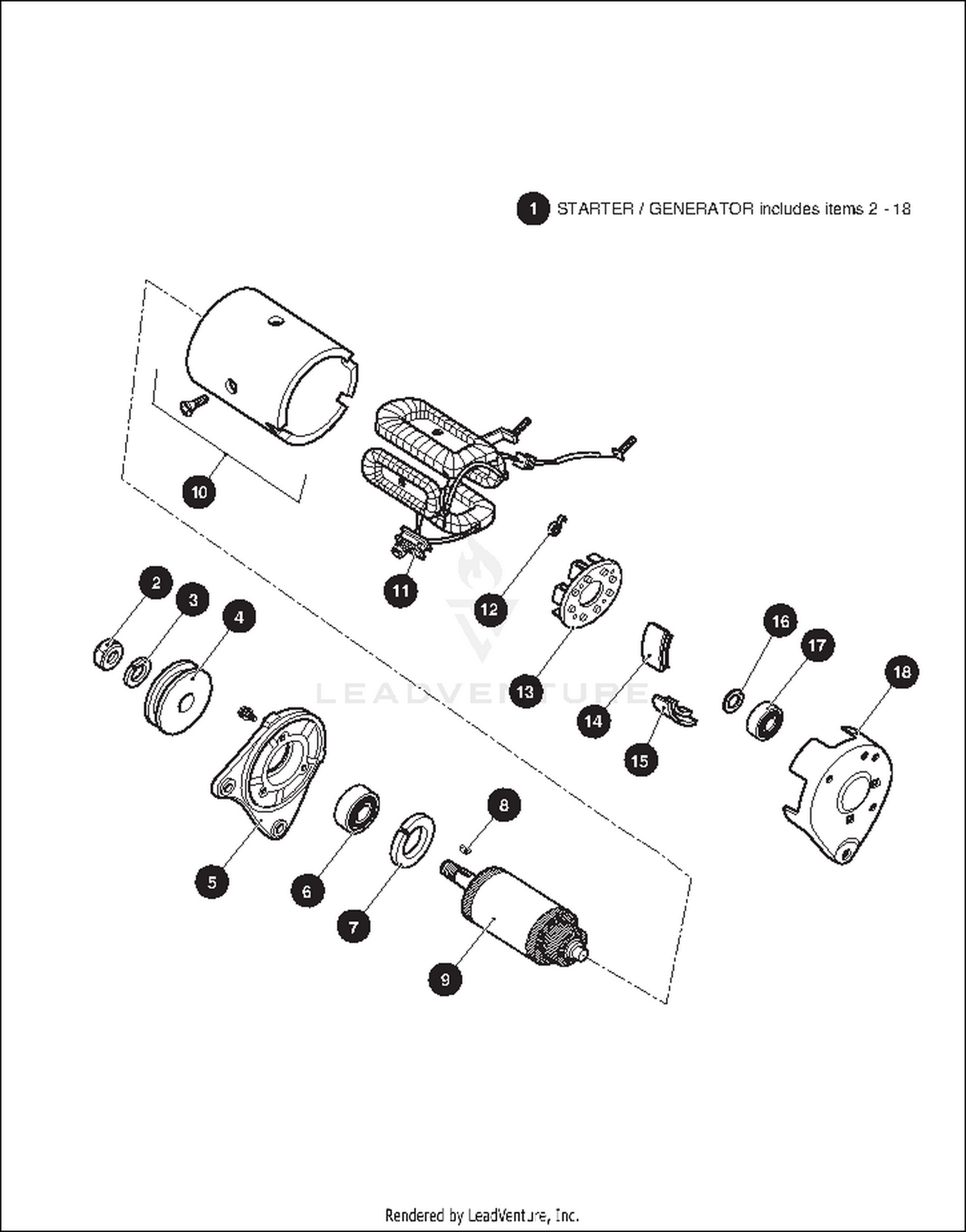

| Ref | Part Number | Description |
|---|
| 1 |
660379 |
STARTER-GENERATOR This part replaces 625715. Price: $669.99 |
| 2 |
612029 |
HEX NUT Price: $5.49 |
| 3 |
612030 |
LOCK WASHER Price: $6.99 |
| 4 |
625716 |
PULLEY, 2.50" O.D. Price: $41.99 |
| 5 |
612032 |
DRIVE END HEAD Not Available Price: |
| 6 |
612033 |
BEARING Price: $38.99 |
| 7 |
612034 |
RETAINING RING Price: $6.51 |
| 8 |
612035 |
WOODRUFF KEY Price: $1.99 |
| 9 |
612036 |
ARMATURE ASSY Price: $507.99 |
| 10 |
612037 |
FRAME & FIELD ASSY Not Available Price: |
| 11 |
657626 |
SVC-END HOUSING,COMMON-KIT This part replaces 612038. Price: $324.99 |
| 12 |
612039 |
BRUSH SPRING Price: $17.99 |
| 13 |
654717 |
BRUSH BOX ASSY This part replaces 612040. Price: $59.99 |
| 14 |
654718 |
HEADBAND This part replaces 612041. Price: $28.99 |
| 15 |
654718 |
HEADBAND This part replaces 612042. Price: $28.99 |
| 16 |
612043 |
WAVY WASHER Price: $41.99 |
| 17 |
612044 |
BEARING Price: $25.99 |
| 18 |
612045 |
COMMUTATOR END HEAD Price: $83.99 |
| 22 |
629325 |
WLDMT STARTER/GENERATOR BRKT Price: $49.99 |
| 23 |
00462G7 |
HEX HEAD BOLT, 7/16-14 X 7/8 Price: $3.16 |
| 24 |
00566G2 |
LOCK WASHER (SPRING TYPE), 7/16 Price: $0.99 |
| 26 |
00439G2 |
HEX HEAD BOLT, 5/16-18 X 1 1/4 Price: $0.99 |
| 27 |
00559G8 |
FLAT WASHER, 5/16" Price: $0.99 |
| 28 |
11098G6 |
LOCK NUT, 5/16"-18 Price: $2.99 |
| 32 |
75746G01 |
SCREW SOCKET HD (METRIC) 8MM Price: $2.99 |
| 33 |
00631G2 |
SC-C-HEX-CP 1/2-13 X 2 1/4 Price: $8.31 |
| 34 |
00566G3 |
LOCK WASHER, 1/2 Price: $0.99 |
| 35 |
00560G3 |
FLAT WASHER, 1/2 Price: $0.99 |
