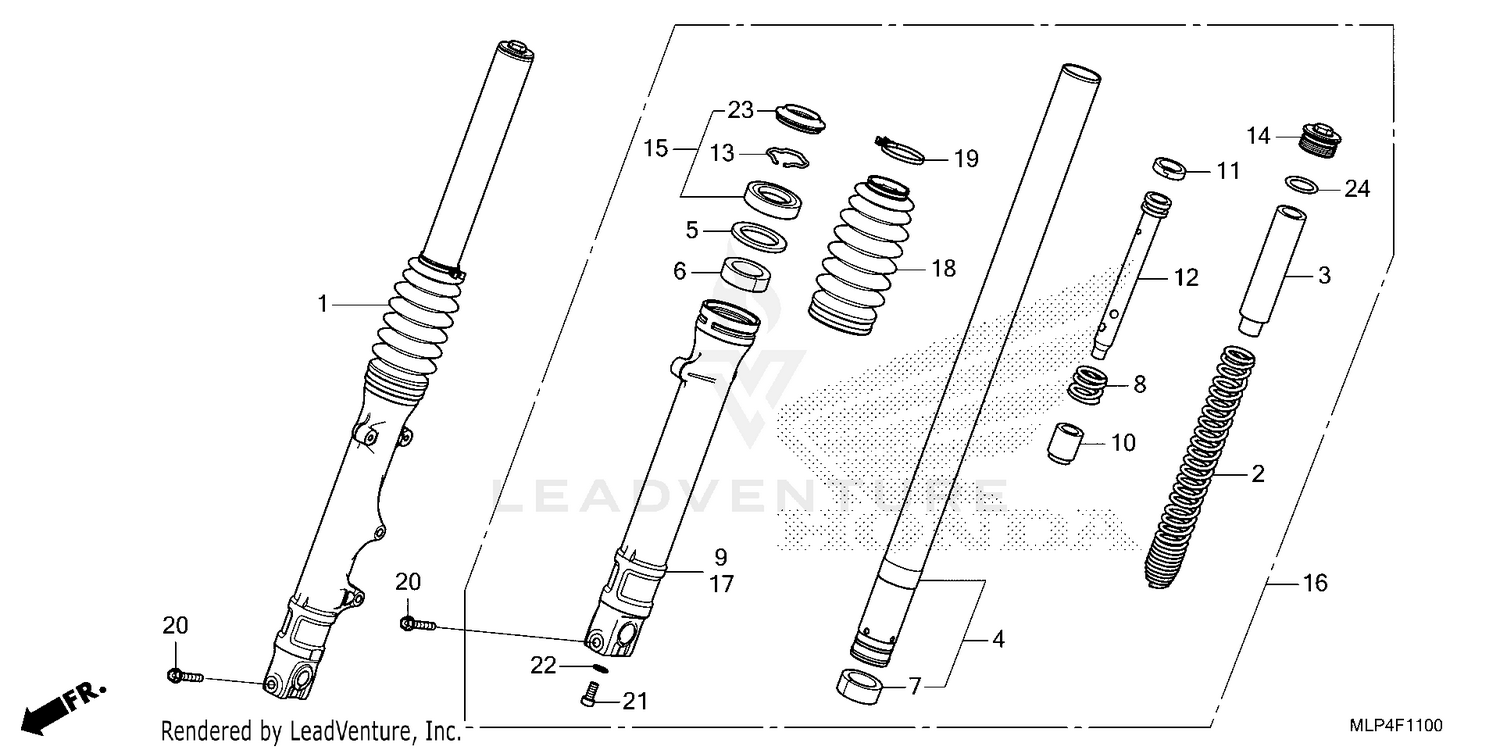

| Ref | Part Number | Description |
|---|
| 1 |
51400-MLP-AB1 |
FORK ASSY., R. FR. Price: $295.22 |
| 2 |
51401-MLP-AB1 |
SPRING, FR. FORK Price: $75.49 |
| 3 |
51402-MGZ-J01 |
COLLAR, SPRING Price: $21.49 |
| 4 |
51410-K3S-JB1 |
PIPE, FR. FORK Price: $303.40 |
| 5 |
51412-MB4-003 |
RING, BACK-UP (SHOWA) Price: $11.69 |
| 6 |
51414-MFJ-A51 |
BUSH, GUIDE Price: $9.11 |
| 7 |
51415-MFJ-A51 |
BUSH, SLIDER Price: $9.11 |
| 8 |
51416-K2Y-J41 |
SPRING, FR. REBOUND Price: $38.64 |
| 9 |
51420-K3S-JB1 |
CASE, R. (LOWER) Price: $305.40 |
| 10 |
51432-MKL-A31 |
PIECE, OIL LOCK Price: $13.38 |
| 11 |
51437-MM5-003 |
RING, PISTON (SHOWA) Price: $6.67 |
| 12 |
51440-K3S-JB1 |
PIPE, SEAT Price: $33.15 |
| 13 |
51447-KA4-711 |
RING, OIL SEAL STOPPER (SHOWA) Price: $5.67 |
| 14 |
51454-K2Y-J41 |
BOLT, FR. FORK Price: $91.42 |
| 15 |
51490-MKL-D81 |
SEAL SET, FR. FORK Price: $30.45 |
| 16 |
51500-MLP-AB1 |
FORK ASSY., L. FR. Price: $297.40 |
| 17 |
51520-K3S-JB1 |
CASE, L. (LOWER) Price: $266.60 |
| 18 |
51611-K3S-JA1 |
BOOT, FR. FORK Price: $30.16 |
| 19 |
51612-K87-A31 |
BAND, FR. FORK BOOT Price: $35.31 |
| 20 |
90109-MR7-000 |
BOLT, FLANGE (8X45) Price: $6.20 |
| 21 |
90116-KV3-701 |
BOLT, SOCKET (8MM) (SHOWA) Price: $4.89 |
| 22 |
90544-283-000 |
WASHER, SPECIAL (8MM) (SHOWA) Price: $3.27 |
| 23 |
91251-MKL-D81 |
DUST SEAL Price: $12.93 |
