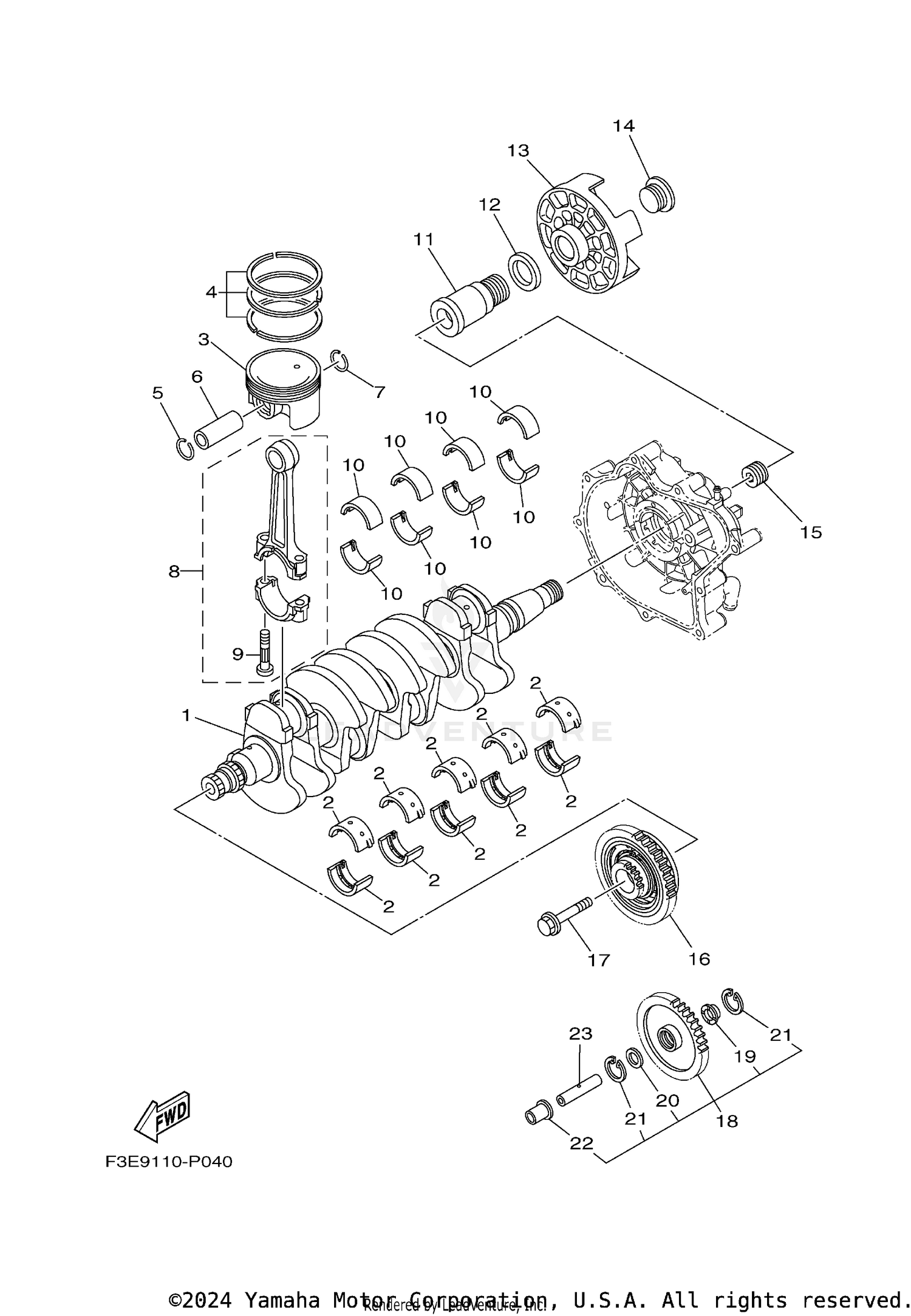

CRANKSHAFT & PISTON
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6LE-11411-00-00 | CRANKSHAFT This part replaces 6ET-11411-00-00. Price: $2,696.49 |
| 3 | 6ET-11631-01-B0 | PISTON (STD) Price: $136.49 |
| 4 | 6S5-11603-01-00 | PISTON RING SET (STD) Price: $74.99 |
| 5 | 93450-22174-00 | CIRCLIP Price: $0.99 |
| 6 | 6ET-11633-00-00 | PIN, PISTON Price: $35.49 |
| 7 | 93450-22174-00 | CIRCLIP Price: $0.99 |
| 8 | 6S5-11650-10-00 | CONNECTING ROD ASSY Price: $226.99 |
| 9 | 6S5-11654-10-00 | BOLT, CONNECTING ROD Price: $7.99 |
| 11 | 6S5-17572-01-00 | SHAFT, TRANSFER Price: $310.49 |
| 12 | 6S5-12289-00-00 | WASHER Price: $31.99 |
| 13 | 6S5-45813-01-00 | FLANGE, COUPLING This part replaces 6S5-45813-01-94. Price: $120.99 |
| 14 | 6S5-17525-01-00 | HOLDER 2 Price: $76.99 |
| 15 | 6S5-11459-01-00 | NUT, SPECIAL Price: $37.49 |
| 16 | 6ET-17800-10-00 | GEAR UNIT ASSY Price: $665.49 |
| 17 | 6S5-17031-00-00 | BOLT Price: $35.49 |
| 18 | 6S5-W1783-20-00 | DRIVE GEAR & COLLAR SET (18T) Price: $518.49 |
| 19 | 6S5-17529-00-00 | WASHER, THRUST Price: $14.49 |
| 20 | 90201-13013-00 | WASHER, PLATE This part replaces 90201-132G5-00. Price: $9.49 |
| 21 | 99009-24700-00 | CIRCLIP Price: $1.49 |
| 22 | 6S5-17585-10-00 | COLLAR, GEAR Price: $80.49 |
