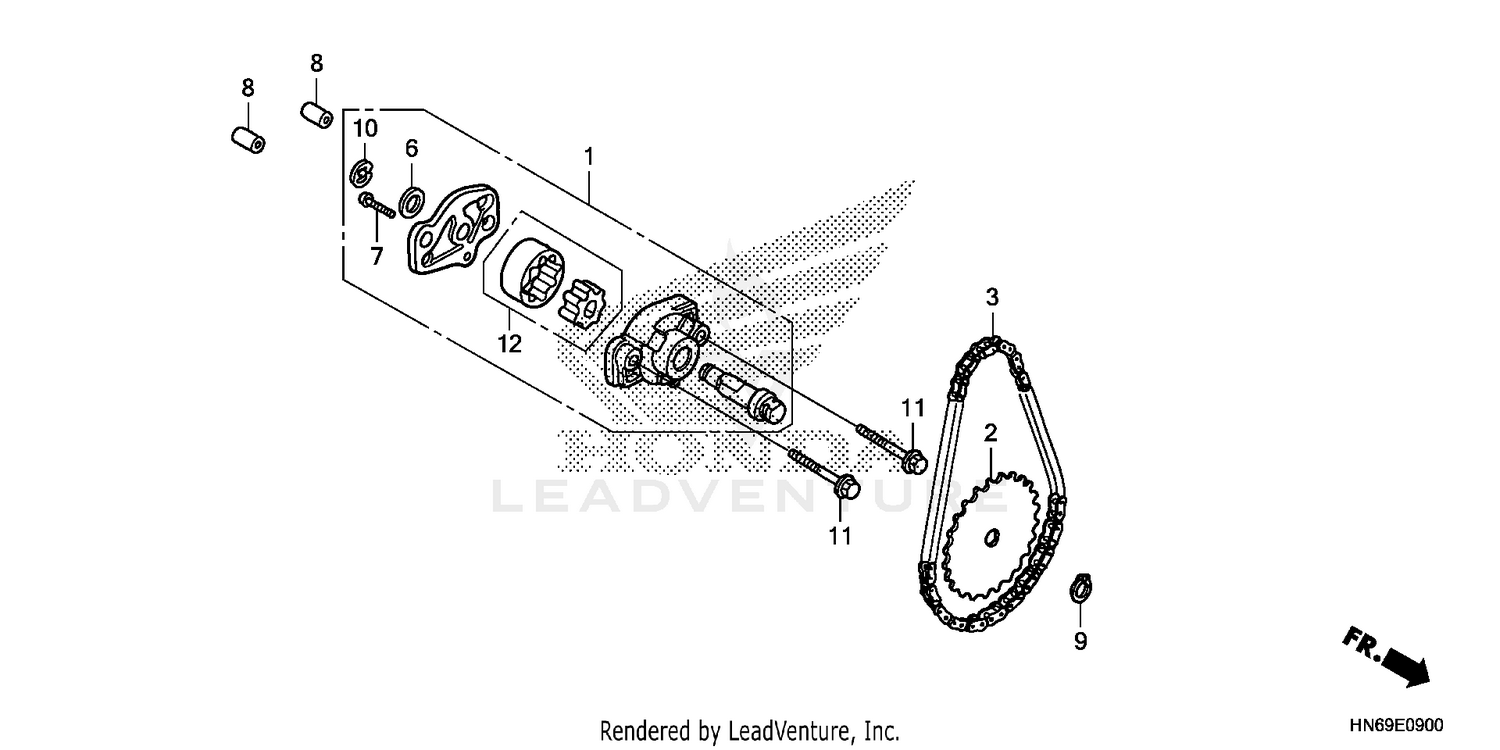

OIL PUMP
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 15100-HS0-A00 | PUMP ASSY., OIL Price: $156.15 |
| 2 | 15133-HM8-000 | SPROCKET, OIL PUMP DRIVEN (22T) Price: $21.55 |
| 3 | 15141-HM8-003 | CHAIN, OIL PUMP (46L) Price: $20.38 |
| 6 | 90435-HS0-A00 | WASHER (6.1MM) (NA USE ALT:15100-HS0-A00) Price: $1.78 |
| 7 | 93500-03012-0A | SCREW, PAN (3X12) Price: $0.87 |
| 8 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 9 | 94510-10000 | CIRCLIP (OUTER) (10MM) Price: $1.15 |
| 10 | 15336-HS0-A00 | E-RING (5MM) (NA USE ALT:15100-HS0-A00) Price: $30.92 |
| 11 | 95701-06035-00 | BOLT, FLANGE (6X35) Price: $1.97 |
