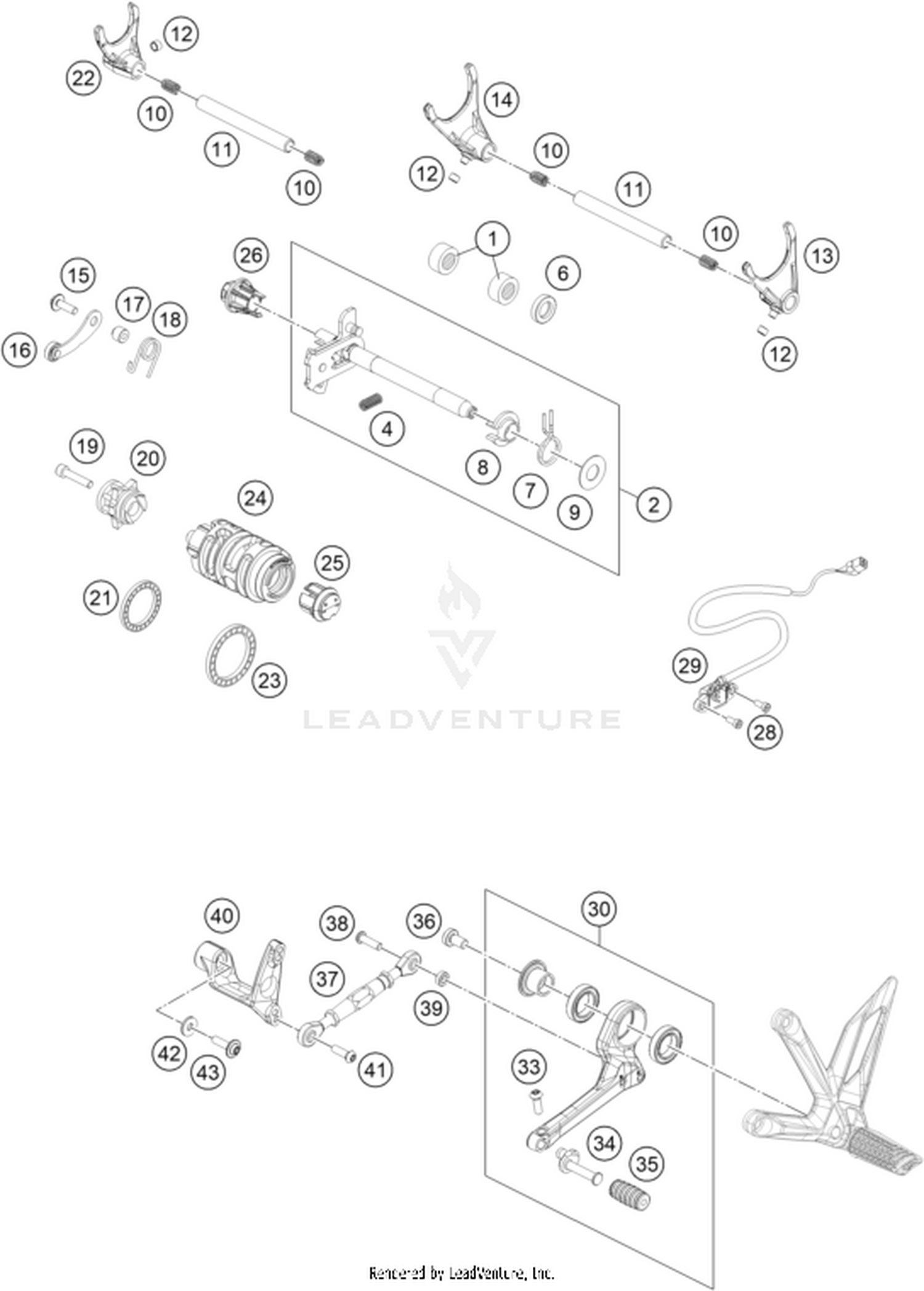

34 SHIFTING MECHANISM

34 SHIFTING MECHANISM

Parts (35)

RefPart NumberDescription
2 61434005044 SHIFT SHAFT CPL. Price: Call Us
4 56534013100 TENSIONING SPRING 0,8MM Price: Call Us
7 61434014000 RETURN SPRING 2.3 MM Price: Call Us
8 54634020000 SPRING GUIDE Price: Call Us
9 54634050000 STOP DISK 14X30X1 Price: Call Us
10 58038023400 Compression spring L=25mm D=0. Price: Call Us
11 59034020000 SHIFT RAIL 11,8X105MM Price: Call Us
12 50334018100 SHIFTING ROLLER 6X8X5,2 Price: Call Us
13 61734002000 Shift fork 2/3 gear Price: Call Us
14 61734001000 Shift fork 1/4 gear Price: Call Us
15 0024060206S HH collar screw M6x20 TX30 Price: Call Us
16 61434024000 LOCKING LEVER CPL. Price: Call Us
17 75034052000 SLEEVE FOR LOCKING LEVER 07 Price: Call Us
18 61234023000 SPRING - LOCKING LEVER Price: Call Us
19 0912060309S Hexagon socket screw, DIN0912- Price: Call Us
20 61434015000 SHIFT LOCATING DRUM CPL. Price: Call Us
21 0625618050 BALL BEARING 61805 C3 Price: Call Us
22 61734003000 Shift fork 5/6 gear Price: Call Us
23 0625068080 GROOVED BALL BEARING 6808 JRC3 Price: Call Us
24 61734012001 Selector drum 6 gear Price: Call Us
25 79234012020 Magnet bracket cmpl. Price: Call Us
26 61434050000 MAGNET HOLDER Price: Call Us
28 0984050143S CYL. SCREW DIN6912 M5X14 8.8 Price: Call Us
29 A60011023000 Gear position sensor Price: Call Us
30 61734031033C1 Gear shift lever cmpl. Price: Call Us
33 0738060185 Round head scr. ISR M6x18-A2-7 Price: Call Us
34 61734032000C1 Gear shift lever, foot peg Price: Call Us
35 61734035000 Rubber Step Shiftlever Price: Call Us
36 0035080156S AH-COLLAR SCREW M8X15 TORX45 Price: Call Us
37 61334036044 Shift rod cmpl. Price: Call Us
38 0738060225S Oval head screw ISR M6x22-A2-7 Price: Call Us
39 61703038060C1 Spacer bushing Price: Call Us
40 61734030000C1 Gear linkage Price: Call Us
41 0738060205S Oval head screw ISR M6x20-A2-7 Price: Call Us
42 50233041500 PAIR NORDLOCK WASHER M6 Price: Call Us
