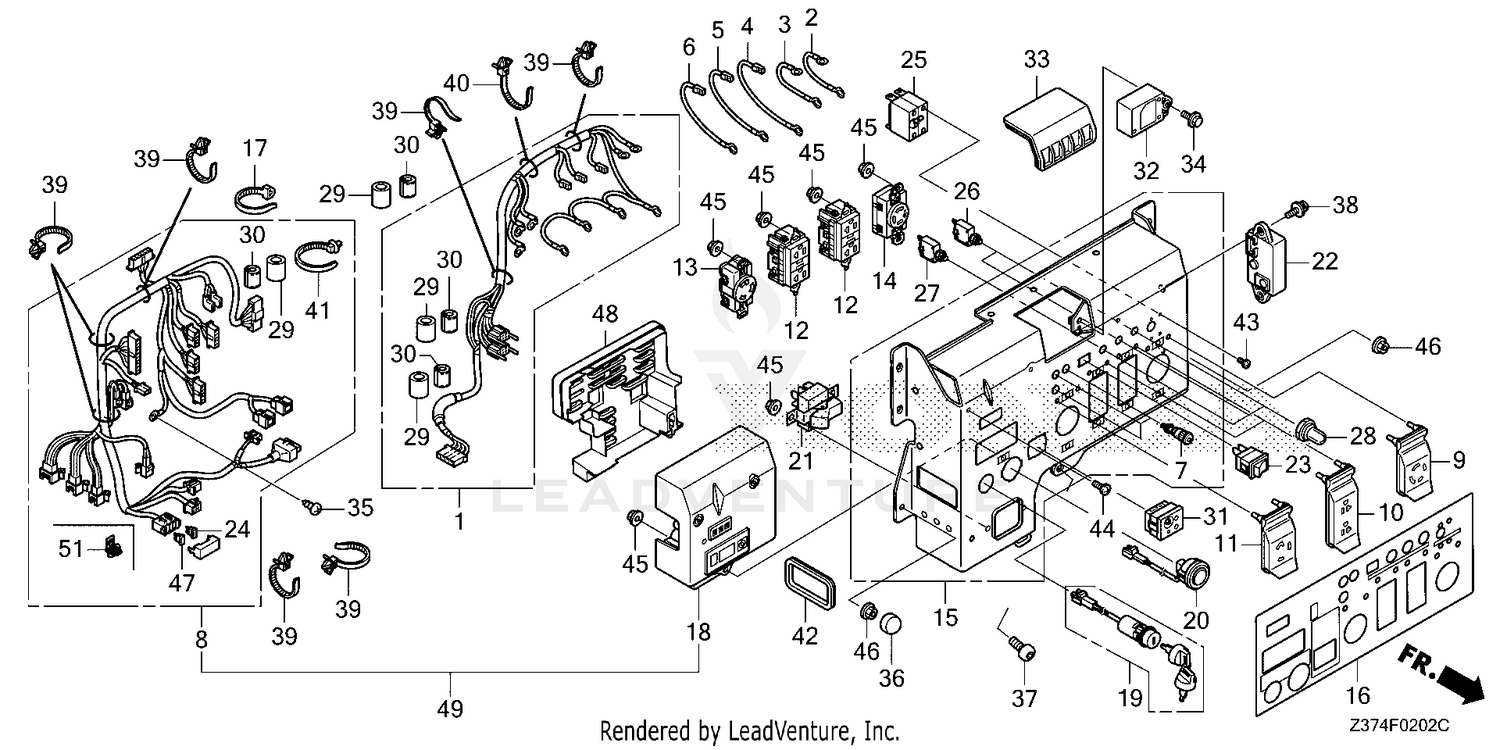

| Ref | Part Number | Description |
|---|
| 1 |
32100-Z37-R50 |
WIRE HARNESS ASSY., MAIN Price: $271.74 |
| 2 |
32101-Z37-A30 |
SUB-WIRE ASSY. (A) Price: $4.58 |
| 3 |
32102-Z37-A30 |
SUB-WIRE ASSY. (B) Price: $4.92 |
| 4 |
32106-Z37-A30 |
SUB-WIRE ASSY. (D) Price: $4.16 |
| 5 |
32107-Z37-C30 |
SUB-WIRE ASSY. (E) Price: $3.70 |
| 6 |
32108-Z37-C30 |
SUB-WIRE ASSY. (F) Price: $4.16 |
| 7 |
32139-Z37-A30 |
SOCKET, COMPOSITE Price: $80.84 |
| 8 |
32150-Z37-R51 |
WIRE HARNESS ASSY., CONTROL Price: $97.96 |
| 9 |
32320-Z37-R50 |
COVER, RECEPTACLE (30A-125/250V) Price: $19.42 |
| 10 |
32320-ZS9-W30 |
COVER, RECEPTACLE (20A-125V) Price: $20.04 |
| 11 |
32321-ZS9-W30 |
COVER, RECEPTACLE (30A-125V) Price: $20.00 |
| 12 |
32330-Z44-J32 |
RECEPTACLE (20A-125V) (GFCI) Price: $122.70 |
| 13 |
32332-Z22-E31 |
RECEPTACLE (30A-125V) Price: $90.80 |
| 13 |
32332-ZB4-630 |
SEE PART DETAILS - SUP; RECEPTACLE (30A/125V) Price: $47.26 |
| 14 |
32334-Z22-A31 |
RECEPTACLE (30A-125/250V) Price: $108.52 |
| 15 |
32345-Z37-R50 |
PANEL, CONTROL Price: $295.12 |
| 16 |
32366-Z37-R50 |
MARK, PANEL Price: $18.30 |
| 17 |
32727-PE1-660 |
BAND, TUBE (NOT AVAILABLE) Price: $9.04 |
| 18 |
34110-Z37-R52 |
CONTROL UNIT, GENERATOR Price: $591.28 |
| 19 |
35100-Z37-A31 |
SWITCH ASSY., COMBINATION Price: $67.34 |
| 19 |
35100-Z37-R51 |
SWITCH ASSY., COMBINATION Price: $18.56 |
| 20 |
35150-Z37-A32 |
SWITCH ASSY., START Price: $24.66 |
| 21 |
35320-Z11-A41 |
SWITCH ASSY., VOLT CHANGE Price: $130.92 |
| 22 |
35610-Z37-PC0 |
SENSING UNIT (CO) Price: Call Us |
| 23 |
36214-Z11-A01 |
SWITCH, AUTO-THROTTLE (OTAX) Price: $25.18 |
| 24 |
38206-797-A01 |
FUSE, BLADE (3A) Price: $2.70 |
| 25 |
38220-Z37-A31 |
PROTECTOR, CIRCUIT (30A) Price: $78.44 |
| 26 |
38240-Z11-A32 |
SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A) (WHITE)(TYCO) Price: $39.46 |
| 26 |
38240-Z25-A30 |
PROTECTOR, CIRCUIT (20A) (BLACK)(JOEMEX) Price: $111.66 |
| 27 |
38241-Z11-A32 |
SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A) (WHITE) Price: $39.76 |
| 27 |
38241-Z25-A30 |
PROTECTOR, CIRCUIT (30A) (BLACK) Price: $111.66 |
| 28 |
38242-Z25-A62 |
COVER, CIRCUIT PROTECTOR Price: $18.32 |
| 29 |
38398-Z07-C60 |
SUPPORTER, FILTER Price: $4.66 |
| 30 |
38398-Z37-000 |
FILTER, SUB NOISE (AC) Price: $15.24 |
| 31 |
38530-ZS9-W32 |
LED ASSY., INDICATER Price: $34.68 |
| 32 |
06391-Z22-C31 |
UNIT KIT, BLUETOOTH (ISOLATE) Price: $165.01 |
| 33 |
39161-Z37-R50 |
COVER, BLUETOOTH UNIT Price: $16.08 |
| 34 |
90003-MEL-000 |
BOLT, FLANGE (5X14) Price: $1.68 |
| 35 |
90031-875-000 |
SCREW, TAPPING (5X12) Price: $3.90 |
| 36 |
90083-ZY3-A01 |
CAP, BOLT (6MM) Price: $5.32 |
| 37 |
90106-ZS9-W30 |
BOLT, FLANGE TORX (6X10) Price: $3.94 |
| 38 |
90107-ZS9-W30 |
BOLT-WASHER (5X15) (TORX) Price: $4.02 |
| 39 |
90672-SB2-003 |
STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK) Price: $7.22 |
| 40 |
90676-Z26-003 |
BAND, WIRE HARNESS Price: $4.12 |
| 41 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.98 |
| 42 |
91654-Z11-000 |
GROMMET, CONTROL HARNESS Price: $5.60 |
| 43 |
93500-03005-0G |
SCREW, PAN (3X5) (NOT AVAILABLE) Price: Call Us |
| 44 |
93500-05012-0G |
SCREW, PAN (5X12) Price: $1.14 |
| 45 |
94050-04000 |
NUT, FLANGE (4MM) Price: $1.54 |
| 46 |
94050-06080 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689). Price: $0.82 |
| 47 |
98200-31500 |
FUSE, BLADE (15A) (Honda Code 1644244). Price: $1.64 |
| 48 |
34115-Z37-000 |
COVER, GENERATOR CONTROL UNIT Price: $8.42 |
