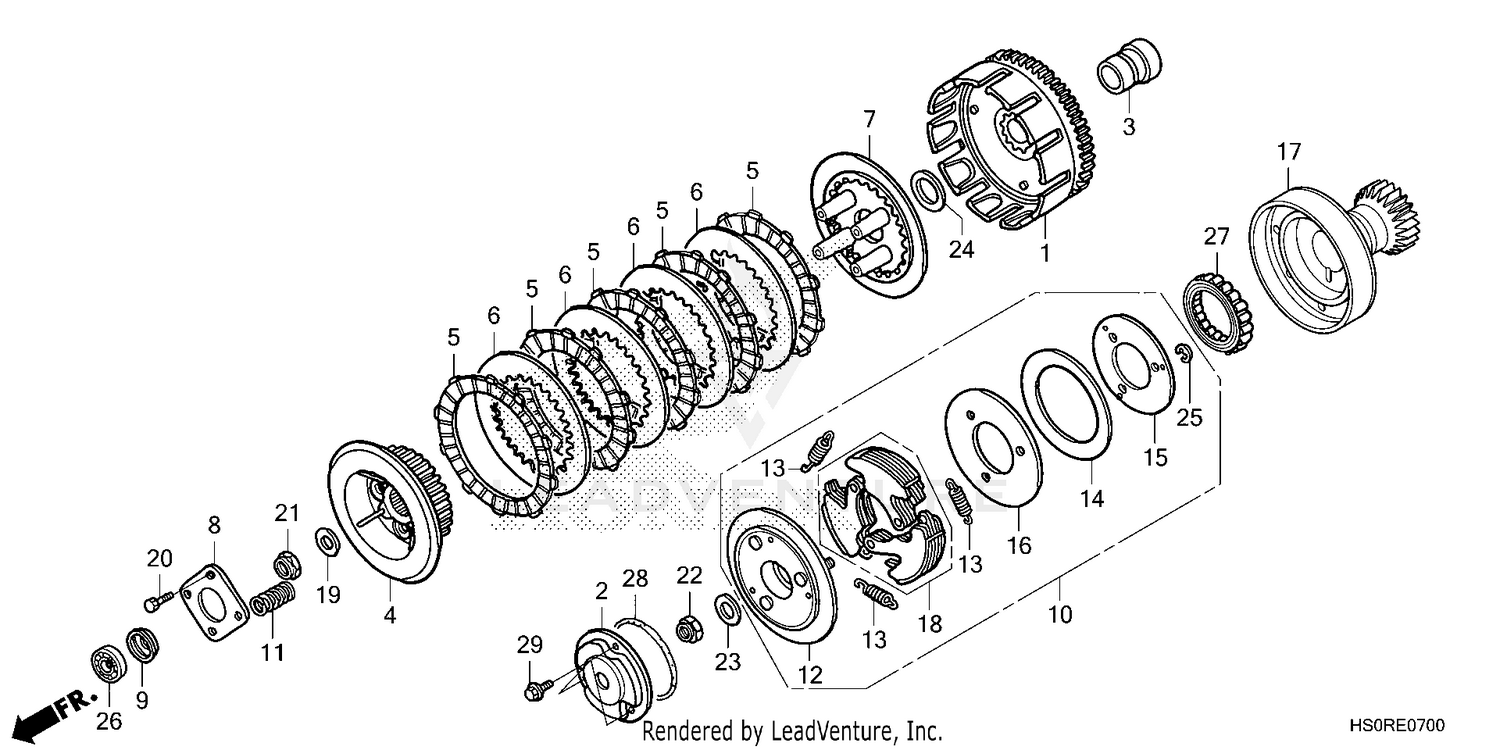

| Ref | Part Number | Description |
|---|
| 1 |
22100-HM8-A40 |
CLUTCH (OUTER) Price: $255.38 |
| 2 |
22111-HB3-771 |
COVER, OIL FILTER Price: $27.65 |
| 3 |
22116-HB3-000 |
GUIDE, CLUTCH (OUTER) Price: $27.45 |
| 4 |
22121-HM8-000 |
CENTER, CLUTCH Price: $74.07 |
| 5 |
22201-166-000 |
DISK, CLUTCH FRICTION Price: $21.15 |
| 6 |
22321-HM8-A40 |
PLATE, CLUTCH Price: $16.82 |
| 7 |
22350-HB3-000 |
PLATE, CLUTCH PRESSURE Price: $50.13 |
| 8 |
22361-HM8-A40 |
PLATE, CLUTCH LIFTER Price: $14.76 |
| 9 |
22367-HN6-000 |
COLLAR, CLUTCH LIFTER Price: $12.55 |
| 10 |
22400-HM8-A41 |
PLATE ASSY., DRIVE Price: $203.07 |
| 11 |
22401-KE7-000 |
SPRING, CLUTCH This part replaces 22401-HB3-010. Price: $5.09 |
| 12 |
22451-HM8-A41 |
PLATE, DRIVE Price: $88.75 |
| 13 |
22463-HB3-770 |
SPRING, CLUTCH Price: $4.80 |
| 14 |
22470-HB3-770 |
SPRING, CONED DISK Price: $15.91 |
| 15 |
22480-HM8-A40 |
WASHER (48X92X1.6) Price: $10.82 |
| 16 |
22481-HM8-A40 |
WASHER (48X100X1.2) Price: $11.18 |
| 17 |
22500-HS0-A00 |
DRUM, CLUTCH (23T) Price: $138.13 |
| 18 |
22535-HM8-306 |
WEIGHT SET, CLUTCH Price: $99.89 |
| 19 |
53044-HA7-670 |
WASHER, STEERING PIVOT Price: $9.22 |
| 20 |
90001-HM8-A40 |
BOLT, HEX. (6X28) Price: $3.35 |
| 21 |
90201-HB3-000 |
NUT, SPECIAL (16MM) Price: $9.40 |
| 22 |
90235-HB3-000 |
NUT, SPECIAL (18MM) Price: $12.65 |
| 23 |
90432-KE5-000 |
WASHER (18MM) Price: $6.11 |
| 24 |
90452-413-000 |
WASHER, THRUST (20MM) Price: $3.04 |
| 25 |
90605-HM8-000 |
CIRCLIP (7MM) Price: $2.24 |
| 26 |
91004-HS0-A01 |
BEARING, RADIAL BALL (6903) Price: $23.49 |
| 27 |
91101-958-003 |
CLUTCH, ONE-WAY Price: $184.16 |
| 28 |
91301-HM8-A40 |
O-RING (83.5X1.5) Price: $6.45 |
