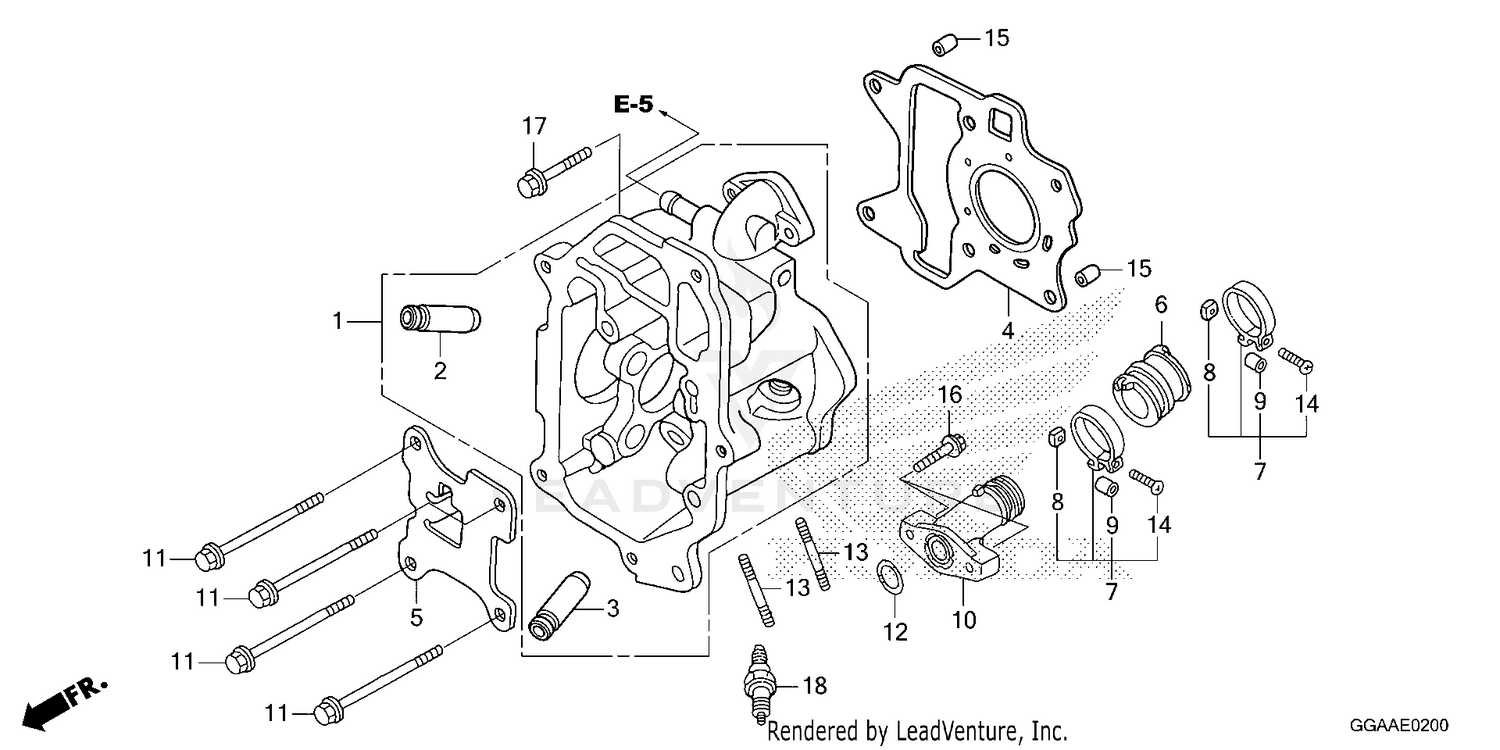

| Ref | Part Number | Description |
|---|
| 1 |
12200-GEZ-610 |
CYLINDER HEAD Price: $204.86 |
| 2 |
12204-GEE-305 |
GUIDE, VALVE (OVER SIZE) Price: $16.11 |
| 3 |
12205-GEE-305 |
GUIDE, EX. VALVE (OVER SIZE) Price: $16.11 |
| 4 |
12251-GET-003 |
GASKET, CYLINDER HEAD Price: $10.65 |
| 5 |
12321-GET-000 |
PLATE, CAMSHAFT STOPPER Price: $7.82 |
| 6 |
16211-GEE-000 |
INSULATOR, CARBURETOR Price: $35.18 |
| 7 |
16217-GEE-010 |
BAND, INSULATOR Price: $6.13 |
| 8 |
16222-MV4-300 |
NUT, SQUARE (5MM) (GQ51B C) Price: $2.45 |
| 9 |
16223-GEE-300 |
COLLAR Price: $1.22 |
| 10 |
17111-GET-010 |
PIPE, INLET Price: $26.82 |
| 11 |
90001-GET-000 |
BOLT, FLANGE (6X119) Price: $3.09 |
| 12 |
91308-PA9-003 |
O-RING (19.8X1.9) (ARAI) This part replaces 91308-MG7-003. Price: $4.83 |
| 13 |
92900-06016-0E |
BOLT, STUD (6X16) Price: $2.15 |
| 14 |
93500-05025-0H |
SCREW, PAN (5X25) Price: $0.78 |
| 15 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 16 |
95701-06025-00 |
BOLT, FLANGE (6X25) Price: $1.88 |
| 17 |
95701-06032-00 |
BOLT, FLANGE (6X32) (Honda Code 2105856) Price: $1.97 |
