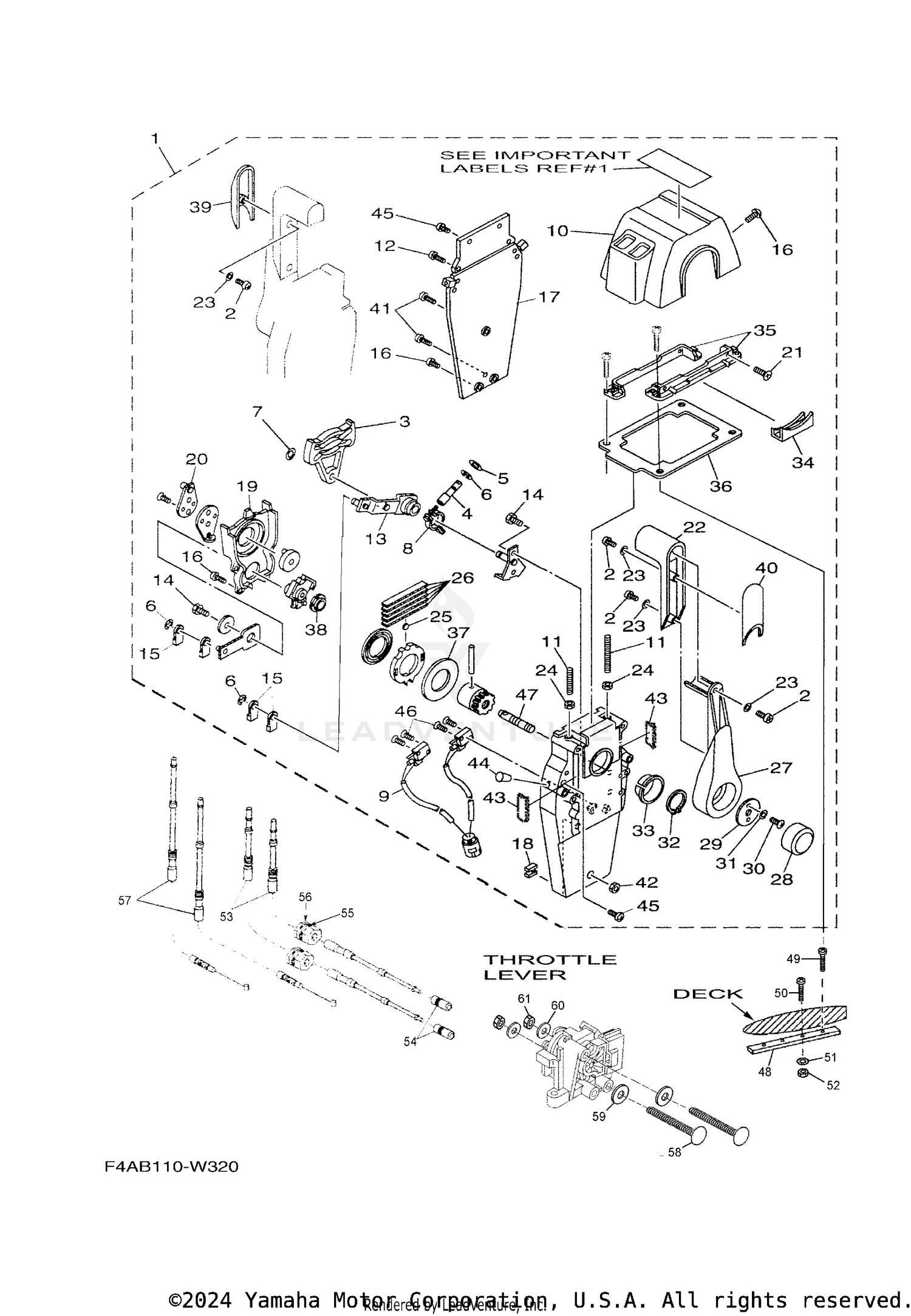

| Ref | Part Number | Description |
|---|
| 1 |
F4A-6134A-12-00 |
REMOCON. LEVER ASSY. This part replaces F4A-6134A-10-00. Price: $1,319.99 |
| 2 |
704-48129-11-00 |
SCREW 3 Price: $1.40 |
| 3 |
EL8-48251-00-00 |
PLATE, CAM Price: $37.75 |
| 4 |
704-48265-00-00 |
SHAFT, FRICTION Price: $14.15 |
| 5 |
701-48246-00-00 |
SPACER Price: $3.55 |
| 6 |
93430-06024-00 |
CIRCLIP Price: $3.95 |
| 7 |
EL8-48259-00-00 |
CIRCLIP 1 Price: $7.15 |
| 8 |
704-48264-00-00 |
THROTTLE, FRICTION Price: $25.50 |
| 9 |
F1C-6137A-10-00 |
NEUTRAL SWITCH ASS Price: $244.49 |
| 10 |
704-48119-60-00 |
COVER Price: $35.45 |
| 11 |
6XE-48281-00-00 |
SCREW 1 Price: $11.99 |
| 12 |
98580-05525-00 |
SCREW, PAN HEAD This part replaces 97890-05025-00. Price: $2.00 |
| 13 |
704-48261-00-00 |
ARM, THROTTLE Price: $76.35 |
| 14 |
97080-06018-00 |
BOLT This part replaces 97380-06018-00. Price: $8.99 |
| 15 |
703-48345-01-00 |
CABLE END, REMOTE CONTROL 2 Price: $16.25 |
| 16 |
EL8-48127-00-00 |
SCREW 1 Price: $6.25 |
| 17 |
EL8-48213-00-00 |
BACK PLATE 2 Price: $17.35 |
| 18 |
703-48358-01-00 |
ANCHOR, CABLE Price: $10.70 |
| 19 |
704-48231-00-00 |
HOUSING, GEAR Price: $31.65 |
| 20 |
EL8-48241-00-00 |
ARM, DRIVE Price: $36.40 |
| 21 |
98780-05018-00 |
SCREW, FLAT HEAD Price: $4.40 |
| 22 |
704-48222-30-00 |
GRIP, CONTROL LEVER Price: $16.50 |
| 23 |
92990-05300-00 |
WASHER, INTERNAL TOOTH Price: $9.49 |
| 24 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 25 |
701-48248-00-00 |
ROLLER, FREE ACCEL. Price: $6.70 |
| 26 |
704-48238-00-00 |
SPRING, DETENT Price: $2.91 |
| 27 |
704-48221-R0-00 |
LEVER, CONTROL Price: $169.15 |
| 28 |
704-48225-R0-00 |
COVER Price: $7.70 |
| 29 |
704-48192-00-00 |
WASHER 2 Price: $15.20 |
| 30 |
97880-06018-00 |
SCREW, PAN HEAD This part replaces 97890-06018-00. Price: $4.60 |
| 31 |
92990-06300-00 |
WASHER, INTERNAL TOOTH Price: $2.70 |
| 32 |
EL8-48279-00-00 |
CIRCLIP 2 Price: $17.10 |
| 33 |
704-48234-00-00 |
BUSHING 1 Price: $4.05 |
| 34 |
704-48219-R0-00 |
COVER, LEAD Price: $8.95 |
| 35 |
704-48144-20-00 |
PLATE, STOPPER 2 Price: $33.70 |
| 36 |
704-48176-10-00 |
GROMMET Price: $14.15 |
| 37 |
704-48192-00-00 |
WASHER 2 Price: $15.20 |
| 38 |
704-48235-00-00 |
BUSHING Price: $6.15 |
| 39 |
704-48229-20-00 |
GRIP, CONTROL LEVER Price: $16.50 |
| 40 |
704-48222-20-00 |
GRIP, CONTROL LEVER Price: $16.50 |
| 41 |
704-48129-00-00 |
SCREW 3 This part replaces 704-48128-00-00. Price: $1.50 |
| 42 |
704-48156-00-00 |
NUT 1 Price: $13.50 |
| 43 |
704-48284-P0-00 |
GROMMET Price: $14.90 |
| 44 |
704-48166-00-00 |
PLUG Price: $12.55 |
| 45 |
97885-05016-00 |
SCREW, PAN HEAD Price: $4.60 |
| 46 |
703-48129-00-00 |
SCREW 3 Price: $2.00 |
| 47 |
704-48153-00-00 |
SHAFT, FREE ACCEL. Price: $15.65 |
| 48 |
F1C-U1348-10-00 |
PLATE Price: $11.99 |
| 49 |
90157-10S16-00 |
SCREW, PAN HEAD Price: $4.99 |
| 50 |
90151-10S20-00 |
SCREW, COUNTERSUNK Price: $0.45 |
| 51 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 52 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 53 |
F4A-6149C-11-00 |
CABLE,REVERSE Price: $269.49 |
| 54 |
F2C-61460-00-00 |
BALL JOINT ASSY Price: $46.49 |
| 55 |
F1B-61438-00-00 |
PACKING C Price: $2.99 |
| 57 |
F4A-U7252-00-00 |
CABLE, THROTTLE Price: $129.99 |
| 58 |
90149-14SA7-00 |
SCREW, 14"-20 X 3" PTH Price: $5.99 |
| 59 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 60 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
