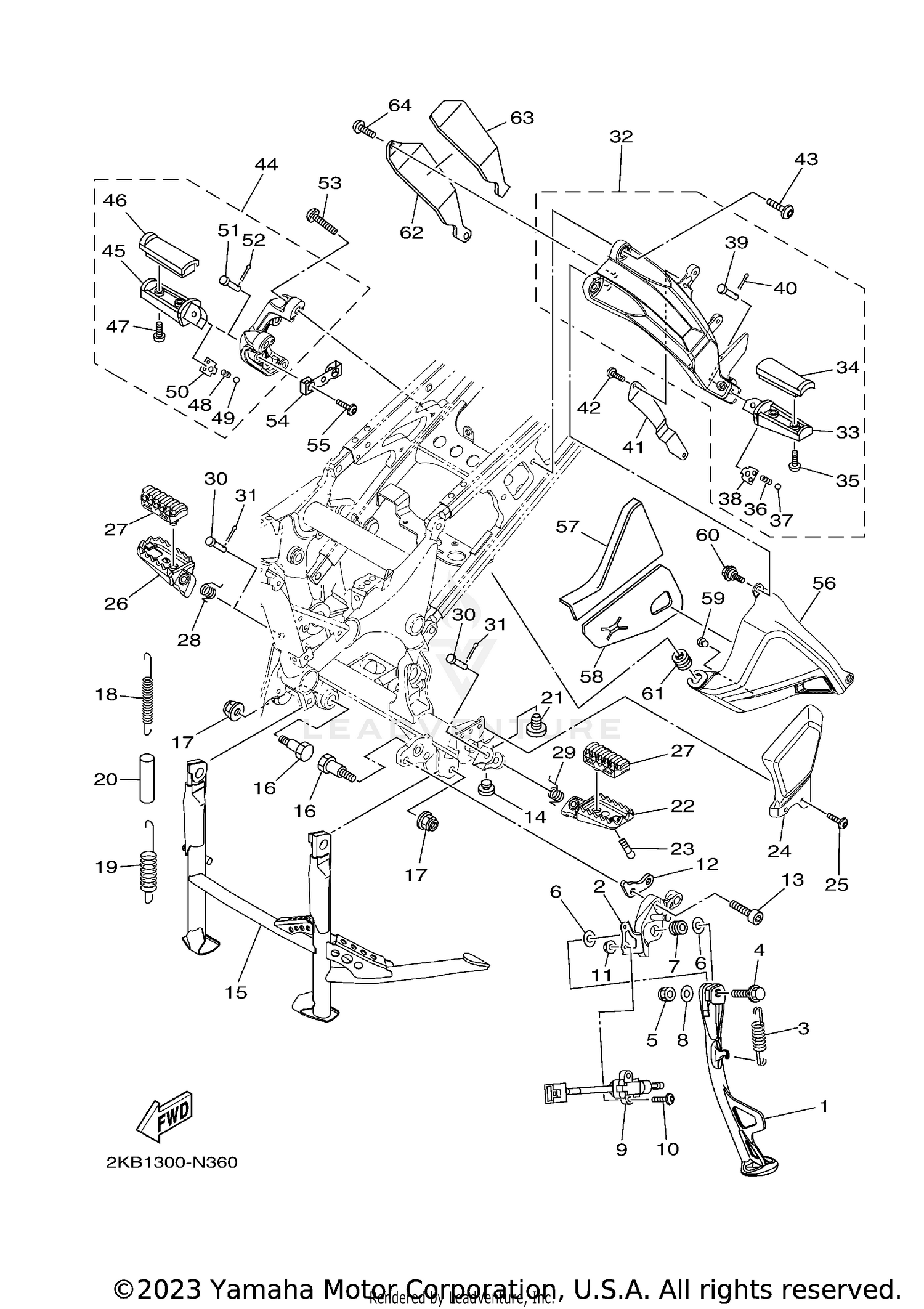

| Ref | Part Number | Description |
|---|
| 1 |
2BS-27311-00-00 |
STAND, SIDE Price: $234.99 |
| 2 |
23P-27321-00-00 |
BRACKET, SIDE STAND Price: $155.99 |
| 3 |
23P-27316-00-00 |
SPRING, SIDE STAND Price: $22.99 |
| 4 |
90105-10728-00 |
BOLT, FLANGE This part replaces 90105-102A6-00. Price: $9.49 |
| 5 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 6 |
90201-10051-00 |
WASHER, PLATE Price: $10.49 |
| 7 |
90387-10020-00 |
COLLAR Price: $19.49 |
| 8 |
90201-101J1-00 |
WASHER, PLATE Price: $9.49 |
| 9 |
23P-82566-61-00 |
SWITCH, SIDE STAND This part replaces 23P-82566-60-00. Price: $71.99 |
| 10 |
92017-05020-00 |
BOLT, BUTTON HEAD Price: $3.90 |
| 11 |
95607-05200-00 |
NUT, S/L FLANGE Price: $10.49 |
| 12 |
23P-27322-00-00 |
WASHER Price: $7.99 |
| 13 |
91317-10030-00 |
BOLT This part replaces 90110-10010-00. Price: $10.49 |
| 14 |
128-27114-00-00 |
STOPPER, MAIN STAND Price: $8.49 |
| 15 |
23P-27111-01-00 |
STAND, MAN This part replaces 23P-27111-00-00. Price: $306.99 |
| 16 |
90109-10057-00 |
BOLT Price: $17.49 |
| 17 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 18 |
23P-27116-00-00 |
SPRING, MAIN STAND Price: $10.49 |
| 19 |
23P-27116-10-00 |
SPRING, MAIN STAND Price: $38.99 |
| 20 |
90445-19003-00 |
HOSE Price: $6.49 |
| 21 |
23P-27114-00-00 |
STOPPER, MAIN STAND Price: $4.00 |
| 22 |
23P-27451-00-00 |
FOOTREST Price: $61.99 |
| 23 |
90109-08177-00 |
BOLT This part replaces 90109-08174-00. Price: $11.49 |
| 24 |
23P-27445-10-00 |
PLATE 1 Price: $50.99 |
| 25 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 26 |
23P-27461-00-00 |
FOOTREST Price: $56.99 |
| 27 |
23P-27413-00-00 |
COVER, FOOTREST Price: $24.99 |
| 28 |
90508-20051-00 |
SPRING, TORSION Price: $3.80 |
| 29 |
90508-20041-00 |
SPRING, TORSION Price: $4.25 |
| 30 |
91702-08040-00 |
PIN, CLEVIS This part replaces 91701-08040-00. Price: $4.85 |
| 31 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 32 |
23P-27430-10-00 |
REAR FOOTREST ASSY 1 Price: $248.99 |
| 33 |
5RT-27431-00-00 |
FOOTREST, REAR 1 Price: $36.99 |
| 34 |
4D9-27413-00-00 |
COVER, FOOTREST Price: $14.49 |
| 35 |
98507-05014-00 |
SCREW, PAN HEAD This part replaces 90157-05079-00. Price: $9.49 |
| 36 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 37 |
93501-04011-00 |
BALL Price: $9.49 |
| 38 |
5VX-27437-00-00 |
WASHER, SPECIAL Price: $8.49 |
| 39 |
91702-08040-00 |
PIN, CLEVIS Price: $4.85 |
| 40 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 41 |
23P-27412-00-00 |
BRACKET, FOOTREST 1 Price: $10.49 |
| 42 |
92012-05008-00 |
BOLT, BUTTON HEAD Price: $3.05 |
| 43 |
90109-085G6-00 |
BOLT Price: $3.50 |
| 44 |
23P-27440-10-00 |
REAR FOOTREST ASSY 2 Price: $248.99 |
| 45 |
5RT-27441-00-00 |
FOOTREST, REAR 2 Price: $37.99 |
| 46 |
4D9-27413-00-00 |
COVER, FOOTREST Price: $14.49 |
| 47 |
98507-05014-00 |
SCREW, PAN HEAD This part replaces 90157-05079-00. Price: $9.49 |
| 48 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 49 |
93501-04011-00 |
BALL Price: $9.49 |
| 50 |
5VX-27437-00-00 |
WASHER, SPECIAL Price: $8.49 |
| 51 |
91702-08040-00 |
PIN, CLEVIS Price: $4.85 |
| 52 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 53 |
90109-085G6-00 |
BOLT Price: $3.50 |
| 54 |
2KB-27333-00-00 |
BRACKET Price: $17.49 |
| 55 |
92012-08014-00 |
BOLT, BUTTON HEAD Price: $8.49 |
| 56 |
23P-27491-00-00 |
PROTECTOR Price: $30.99 |
| 57 |
23P-2749A-00-00 |
SEAT 3 Price: $23.99 |
| 58 |
23P-2749B-00-00 |
SEAT 4 Price: $17.99 |
| 59 |
1J7-21717-00-00 |
DAMPER Price: $7.49 |
| 60 |
90109-06264-00 |
BOLT Price: $6.49 |
| 61 |
90480-12325-00 |
GROMMET Price: $9.49 |
| 62 |
2BS-27422-00-00 |
BRACKET, FOOTREST 2 Price: $11.49 |
| 63 |
2BS-2175P-00-00 |
SEAT 4 Price: $8.99 |
