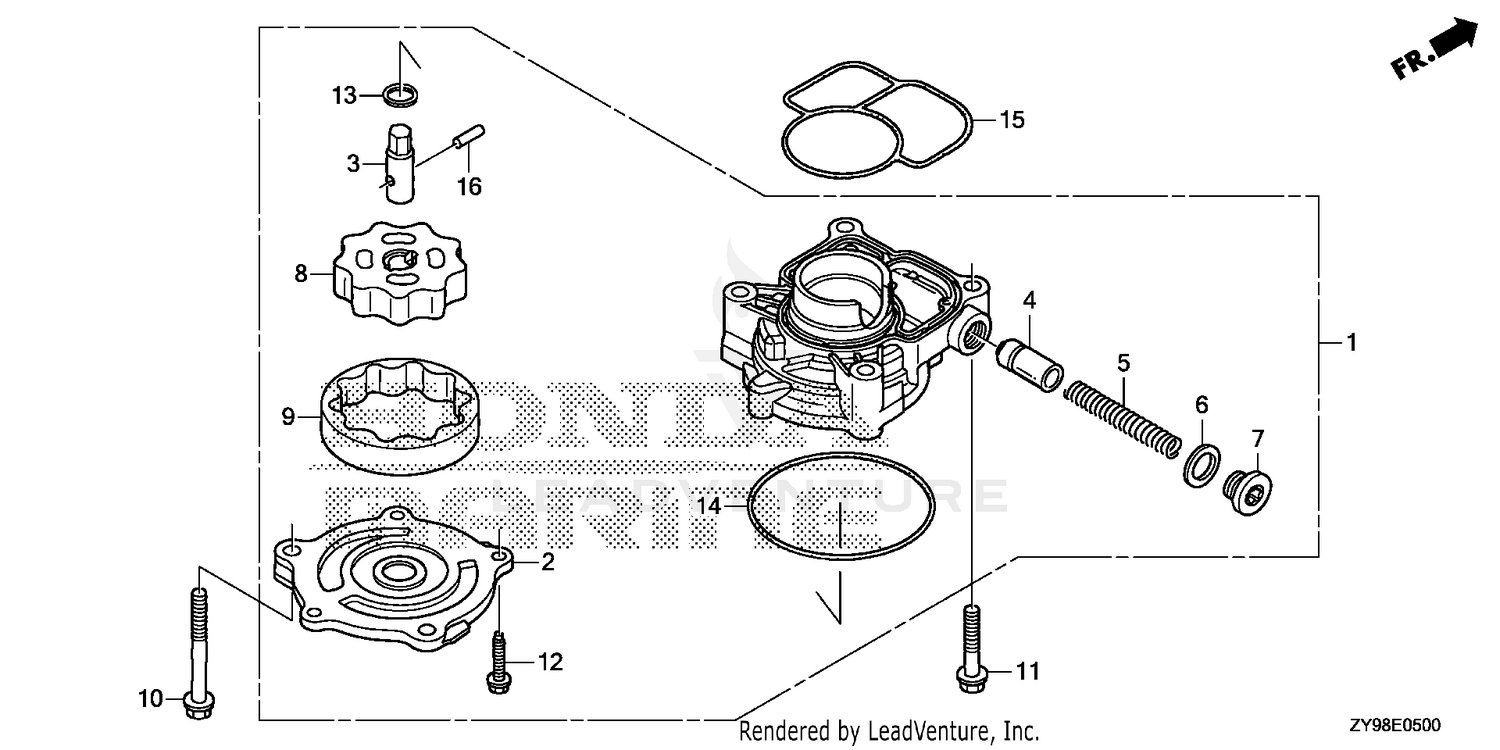

| Ref | Part Number | Description |
|---|
| 1 |
15100-ZY9-M01 |
PUMP ASSY., OIL Price: $342.86 |
| 2 |
15121-ZY9-000 |
COVER, OIL PUMP Price: $51.24 |
| 3 |
15136-ZY9-000 |
SHAFT, OIL PUMP Price: $18.64 |
| 4 |
15231-PE0-000 |
VALVE, RELIEF (Honda Code 1599497). Price: $19.34 |
| 5 |
15232-PG6-000 |
SPRING, RELIEF VALVE Price: $8.08 |
| 6 |
15234-PC6-000 |
WASHER, SEALING (18MM) (Honda Code 1460989). Price: $9.16 |
| 7 |
15236-ZY9-M00 |
BOLT, SEALING (18MM) Price: $11.48 |
| 7 |
15236-ZY9-M01 |
BOLT, SEALING (18MM) Price: $10.74 |
| 8 |
15331-ZW1-000 |
ROTOR (INNER) Price: $58.76 |
| 9 |
15341-ZW1-000 |
ROTOR (OUTER) Price: $65.32 |
| 10 |
90027-ZY9-M01 |
BOLT, FLANGE (8X60) Price: $3.68 |
| 11 |
90055-ZZ5-M01 |
BOLT, FLANGE (8X40) Price: $2.56 |
| 12 |
90104-ZZ5-M00 |
BOLT, FLANGE (6X18) (CT200) Price: $1.64 |
| 12 |
90104-ZZ5-M01 |
BOLT (6X18) (CT200) Price: $2.54 |
| 13 |
90456-MC7-000 |
WASHER, THRUST (12MM) Price: $3.42 |
| 14 |
91302-ZW1-000 |
O-RING, PUMP COVER Price: $10.76 |
| 15 |
91304-ZY9-000 |
O-RING, OIL PUMP Price: $14.06 |
