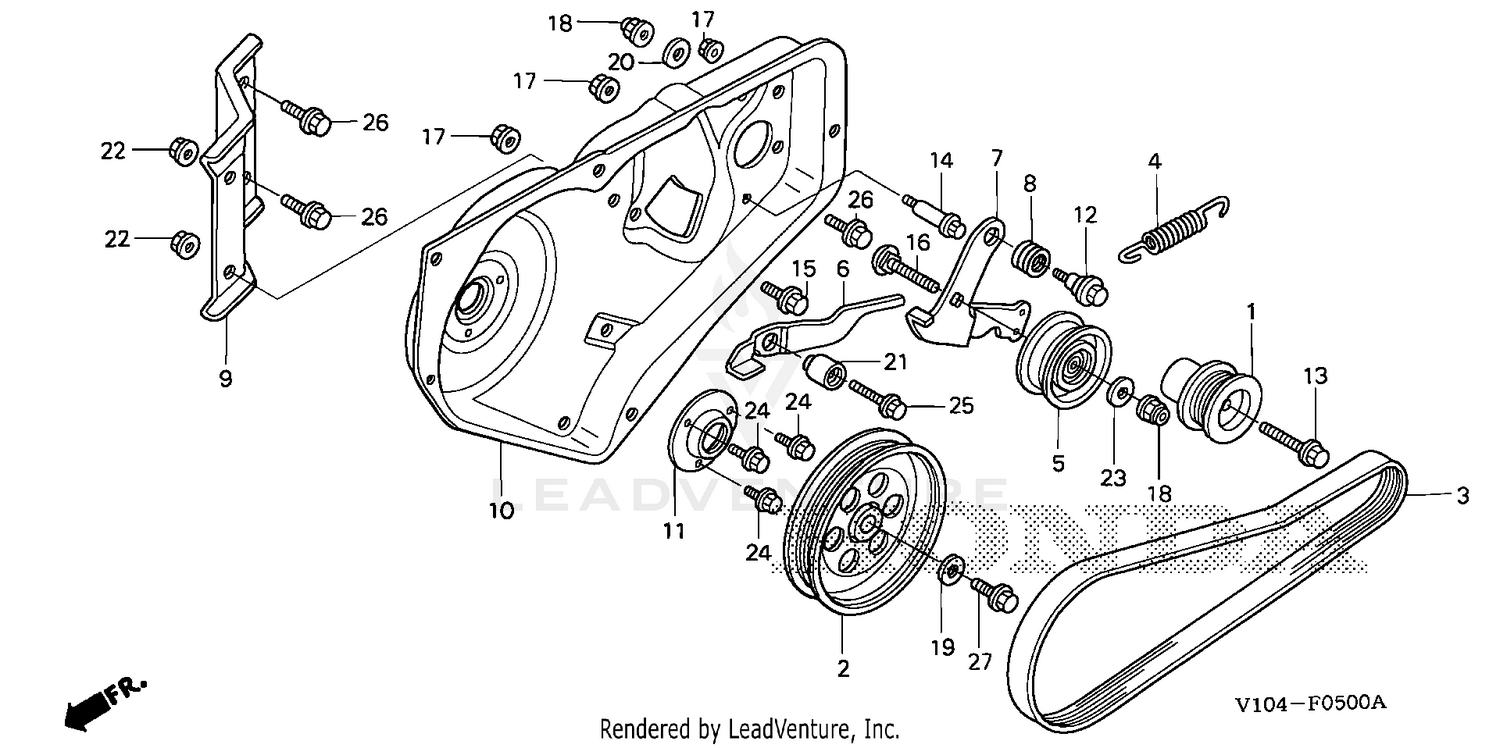

| Ref | Part Number | Description |
|---|
| 1 |
22411-V10-000 |
PULLEY, DRIVE Price: $201.98 |
| 2 |
22420-V10-000 |
PULLEY, DRIVEN Price: $81.86 |
| 3 |
22431-V10-013 |
V-BELT, RIBBED Price: $25.18 |
| 4 |
22437-V10-R10 |
SPRING, TENSIONER ARM Price: $4.72 |
| 5 |
22465-V10-003 |
ROLLER, TENSIONER Price: $82.84 |
| 6 |
22512-V10-000 |
ARM, AUGER BRAKE Price: $3.94 |
| 7 |
22521-V10-000 |
ARM, TENSION Price: $6.42 |
| 8 |
22527-V10-000 |
SPRING, TENSIONER ARM BOLT Price: $10.88 |
| 9 |
50658-V10-000 |
BRACKET, BELT COVER STAY Price: $3.72 |
| 10 |
63621-V10-R10 |
COVER, BELT (INNER) Price: $44.80 |
| 11 |
72426-V10-000 |
HOLDER, L. AUGER (BEARING) Price: $5.94 |
| 12 |
90102-V10-000 |
BOLT, TENSIONER ARM Price: $20.46 |
| 13 |
90104-VG3-000 |
BOLT, FLANGE (5/16-24X1") Price: $0.68 |
| 14 |
90104-V10-000 |
BOLT, BELT GUIDE Price: $0.78 |
| 15 |
90108-V10-000 |
BOLT, SIDE COVER Price: $7.50 |
| 16 |
90133-VE0-000 |
BOLT, PAN (8X35) Price: $0.76 |
| 17 |
90302-V10-000 |
NUT, SELF-LOCK (6MM) Price: $0.58 |
| 18 |
90309-428-731 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) Price: $4.62 |
| 19 |
90428-844-650 |
WASHER (8MM) Price: $4.70 |
| 20 |
90504-MA6-000 |
WASHER (8.5X26) Price: $2.18 |
| 21 |
91551-V10-000 |
COLLAR, BRAKE ARM Price: $2.04 |
| 22 |
94050-08000 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143). Price: $1.18 |
| 23 |
94103-08800 |
WASHER, PLAIN (8MM) Price: $1.18 |
| 24 |
95701-06010-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709). Price: $2.02 |
| 25 |
95701-06028-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2488500). Price: $2.74 |
| 26 |
95701-08016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016. Price: $2.26 |
