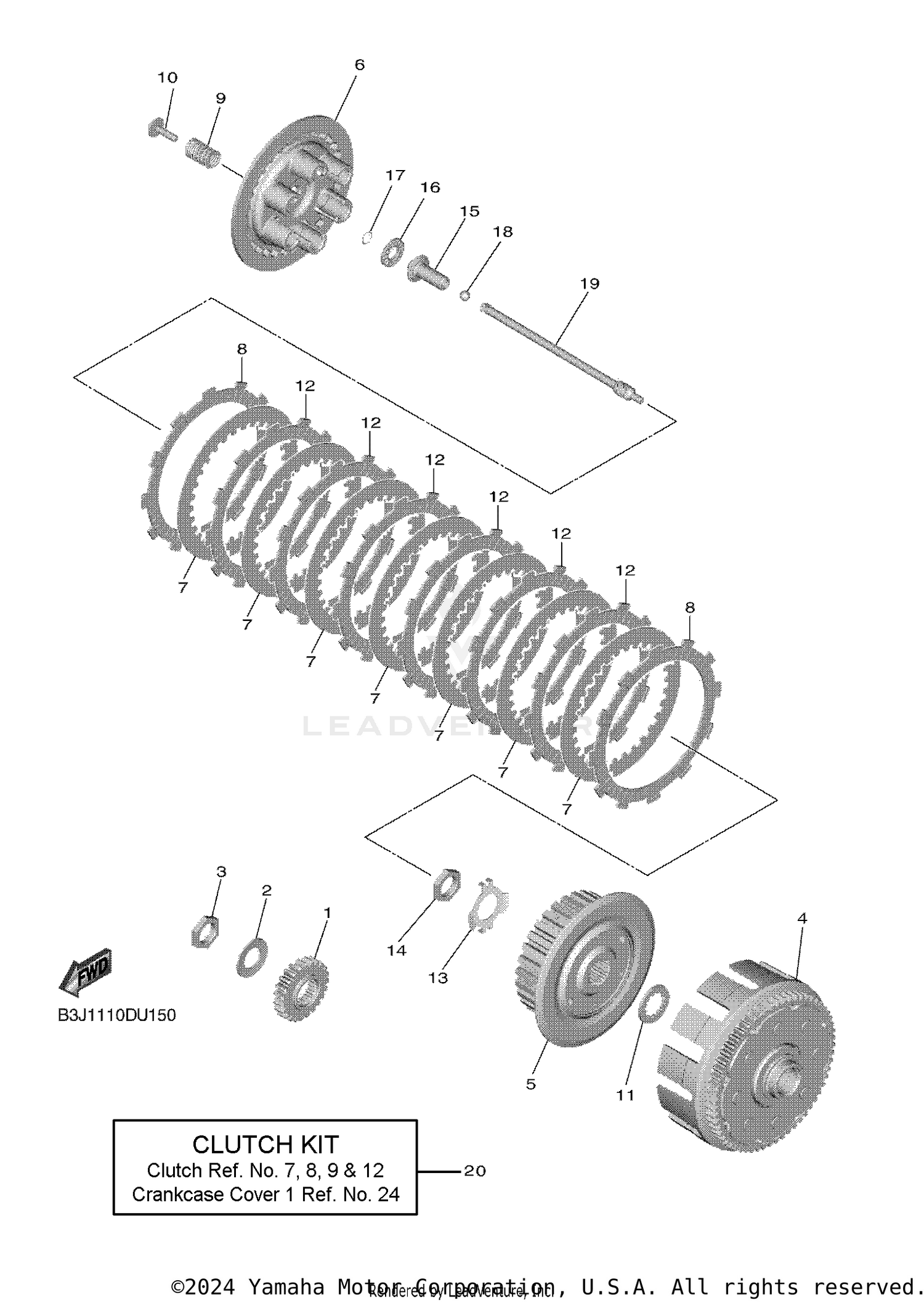

CLUTCH
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2S2-16111-60-00 | GEAR, PRIMARY DRIVE Price: $159.99 |
| 2 | 90208-20007-00 | WASHER, CONICAL SPRING Price: $6.99 |
| 3 | 90170-20211-00 | NUT Price: $5.49 |
| 4 | BR9-16150-00-00 | PRIMARY DRIVEN GEAR COMP. Price: $577.99 |
| 5 | 5TA-16371-20-00 | BOSS, CLUTCH Price: $151.99 |
| 6 | BR9-16351-00-00 | PLATE, PRESSURE 1 Price: $82.99 |
| 10 | 90159-06010-00 | SCREW, WITH WASHER Price: $8.49 |
| 11 | 5XD-16154-00-00 | PLATE, THRUST 1 Price: $16.49 |
| 13 | 90215-20005-00 | WASHER, LOCK Price: $8.49 |
| 14 | 90170-20327-00 | NUT Price: $20.99 |
| 15 | BR9-16356-00-00 | ROD, PUSH 1 Price: $80.99 |
| 16 | 93340-21209-00 | BEARING Price: $18.99 |
| 17 | 93440-10085-00 | CIRCLIP Price: $9.49 |
| 18 | 93511-32027-00 | BALL Price: $9.49 |
| 19 | 1SL-16357-10-00 | ROD, PUSH 2 Price: $50.99 |
