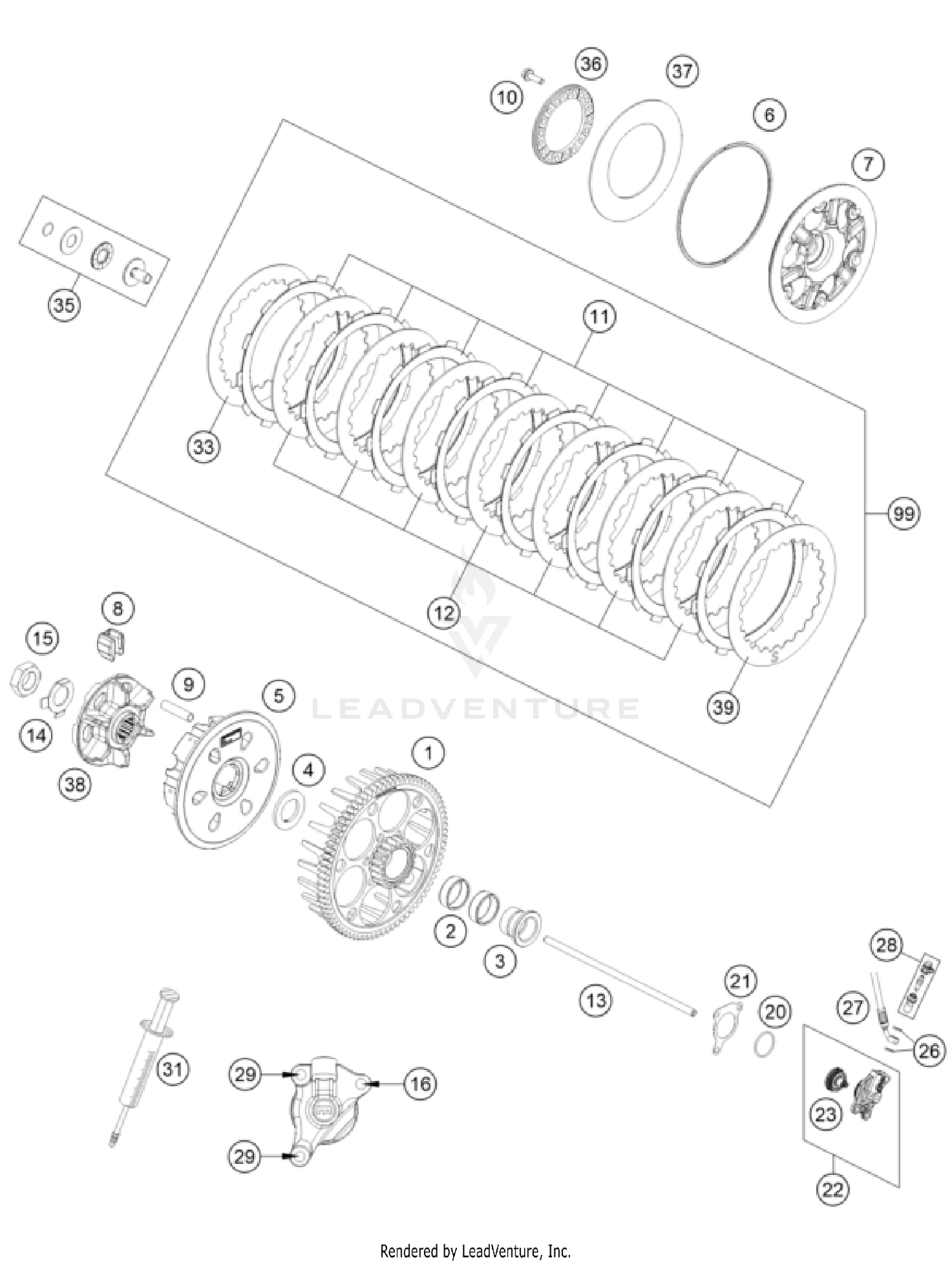

| Ref | Part Number | Description |
|---|
| 1 |
79432101076 |
Clutch basket Price: $324.93 |
| 2 |
0405252910 |
NEEDLE BEAR K 25X29X10 Price: $10.44 |
| 3 |
78132015100 |
COLLARSLEEVE Price: $31.67 |
| 4 |
78932009000 |
WASHER 22 X 36,5 X 3 Price: $9.12 |
| 5 |
78132002400 |
Inner clutch hub Price: $120.66 |
| 6 |
78132013000 |
WASHER 112X118X1.5 Price: $12.75 |
| 7 |
79432003100 |
Clutch pressure plate This part replaces 79432003000. Price: $27.93 |
| 8 |
78132025100 |
DAMPING RUBBER Price: $4.99 |
| 9 |
77232104000 |
Sleeve, 7.95x38 This part replaces 77232004000. Price: $3.99 |
| 10 |
0025050166 |
HH collar screw M5x16 TX30 Price: $2.99 |
| 11 |
79532011000 |
Lining disc 1,95mm Price: $26.39 |
| 12 |
59032010200 |
INTERMEDIATE DISC 1,4MM 2002 Price: $12.86 |
| 13 |
79432054000 |
PUSH ROD Price: $23.20 |
| 15 |
0936181505 |
HEXAGON NUT DIN0936-M18X1,5 R. Price: $9.12 |
| 16 |
0025060306 |
HH collar screw M6x30 TX30 Price: $3.99 |
| 20 |
0770300015 |
O-RING 30,00X1,50 NBR 70 Price: $2.99 |
| 21 |
59032065100 |
GASKET F. OUTPUT CYLINDER Price: $6.59 |
| 22 |
A54032161044 |
Slave cylinder (450-500cc) Price: $113.62 |
| 23 |
A59032066000 |
Kit Piston This part replaces A54032066000. Price: $61.37 |
| 26 |
0603082121 |
SEAL RING CU DIN7603- 8X12X1 Price: $3.99 |
| 29 |
0025060206 |
HH collar screw M6x20 TX30 Price: $3.99 |
| 31 |
50329050000 |
VENT INJEKTION HYDR. CLUTCH Price: $63.24 |
| 33 |
59032010100 |
INTERMEDIATE DISC 1MM 2002 Price: $11.54 |
| 35 |
78132057144 |
PRESSURE PIECE CPL. Price: $36.18 |
| 36 |
78132006200 |
Spring retainer Price: $12.75 |
| 37 |
78132005000 |
BELLEVILLE SPRING 71X115X1,5 I Price: $37.61 |
| 38 |
78132002211 |
Clutch center Price: $78.97 |
| 39 |
78932010000 |
INTERMEDIATE DISC 1MM Price: $14.18 |
