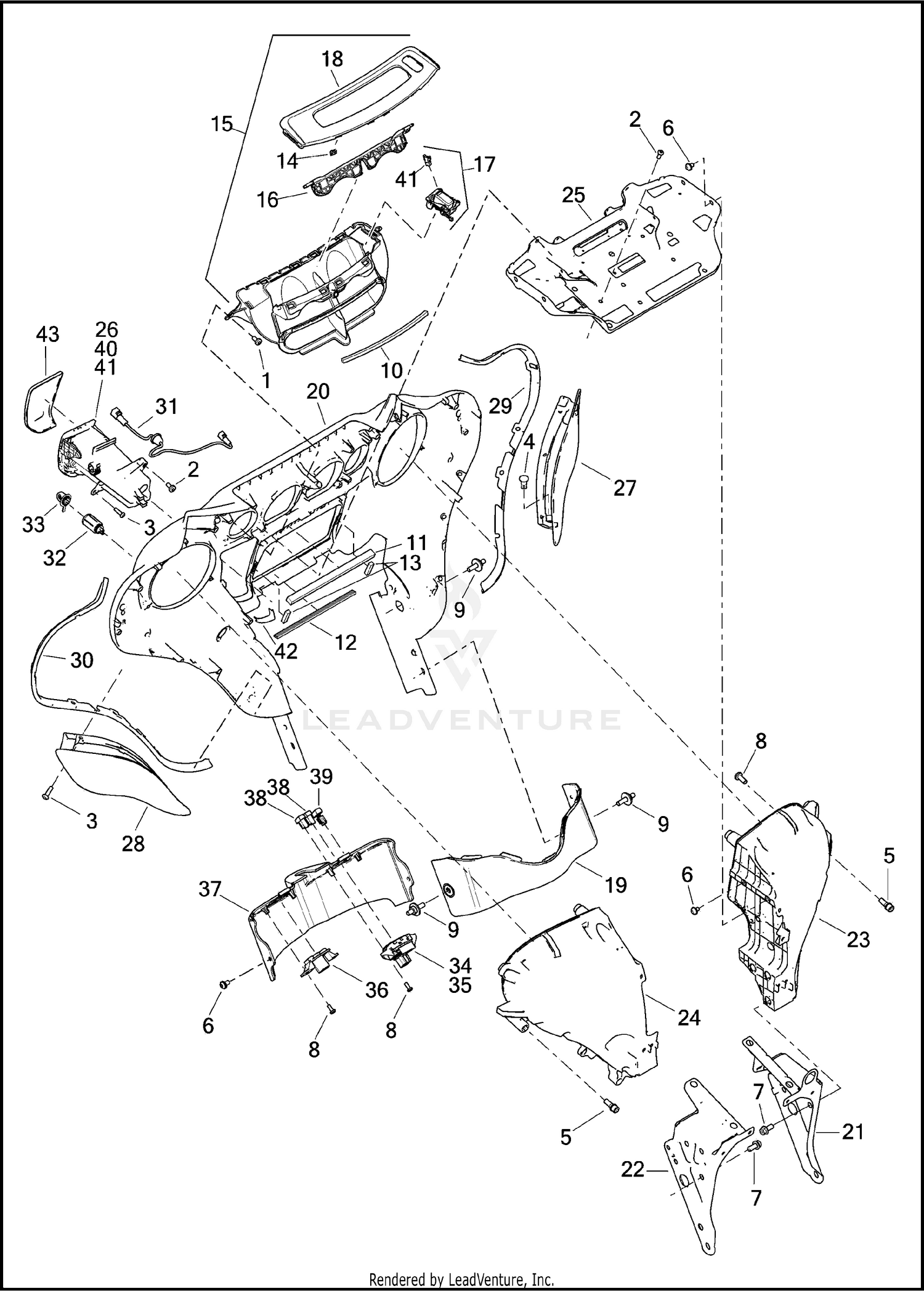

| Ref | Part Number | Description |
|---|
| 1 |
2445 |
SCREW 1/4-20 X 9/16 BUTTON HEAD Price: $0.86 |
| 2 |
2478 |
SCREW NO. 10-24 X 1/2 TORX BUTTON HEAD Price: $2.46 |
| 3 |
2563 |
SCREW NO. 10-24 X 5/8 TORX BUTTON HEAD Price: $1.82 |
| 4 |
57638-08 |
SNAP HINGE AIR DEFLECTOR Price: $4.28 |
| 5 |
10200134 |
SCREW 1/4-20 X 3/4 HEX SOCKET HEAD (GRADE 8) (ZINC) Price: $3.89 |
| 6 |
10200141 |
SCREW 1/4-20 X 1/2 HEX SOCKET BUTTON HEAD (ZINC) Price: $0.58 |
| 7 |
10200142 |
SCREW 5/16-18 X 3/4 HEX FLANGE WITH INTERNAL HEX SEMS, HARDENED (ZINC) Price: $1.17 |
| 8 |
10200205 |
SCREW NO. 10 X 1/2 PAN HEAD TORX, HARDENED (ZINC) Price: $0.55 |
| 9 |
10900005 |
STUD DOUBLE SIDED (DOMESTIC, JAPAN) Price: $6.86 |
| 9 |
10900006 |
STUD DOUBLE SIDED (HDI EXCEPT JAPAN) Price: $8.35 |
| 10 |
11100038 |
FOAM TAPE Price: $5.73 |
| 11 |
11100050 |
FOAM TAPE Price: $5.23 |
| 12 |
11100051 |
FOAM TAPE Price: $3.46 |
| 13 |
11100057 |
FOAM TAPE Price: $1.17 |
| 14 |
12200064 |
CLIP PANEL Price: $1.16 |
| 15 |
29200003 |
AIR DUCT INNER FAIRING, WITH 10, 14, 16, 17, 18 AND 41 Price: $110.25 |
| 16 |
29200034 |
DOOR DUCT, INNER Price: $23.23 |
| 17 |
29200035 |
BUTTON ASSEMBLY DUCT, INNER, WITH 76000127 Price: $79.64 |
| 18 |
29200039 |
BEZEL AIR DUCT, INNER FAIRING, WITH 12200064 Price: $79.64 |
| 19 |
57000182 |
SKIRT OUTER FAIRING Price: $88.55 |
| 20 |
57000193BYM |
INNER FAIRING ASSEMBLY WITH 11100050, 11100051, 11100057, 61400063, 61400064 AND 76000234 Price: $849.26 |
| 21 |
57000169A |
FAIRING,INR,BRACKET,LH-SPRT This part replaces 57000169. Price: $54.20 |
| 22 |
57000170 |
BRACKET FAIRING SUPPORT (RIGHT) Price: $54.20 |
| 23 |
57000172 |
SPEAKER ENCLOSURE ASSEMBLY (LEFT) Price: $130.22 |
| 24 |
57000175 |
SPEAKER ENCLOSURE ASSEMBLY (RIGHT) Price: $130.22 |
| 25 |
57000186 |
BRACKET SUPPORT, INNER FAIRING Not Available Price: |
| 26 |
57000299 |
FOAM INSERT MEDIA COMPARTMENT Price: $22.00 |
| 27 |
57200012 |
AIR DEFLECTOR WITH 57638-08 (LEFT) Price: $86.08 |
| 28 |
57200017 |
AIR DEFLECTOR WITH 57638-08 (RIGHT) Price: $86.08 |
| 29 |
61400063 |
TRIM INNER FAIRING (LEFT) Price: $11.50 |
| 30 |
61400064 |
TRIM INNER FAIRING (RIGHT) Price: $11.50 |
| 31 |
69200031A |
WIRE HARNESS,USB CABLE This part replaces 69200031. Price: $54.15 |
| 32 |
69200170 |
POWER OUTLET FAIRING, WITH 69200171 Price: $29.78 |
| 33 |
69200171 |
CAP POWER OUTLET Price: $10.79 |
| 34 |
69200172 |
SWITCH ASSEMBLY AUXILIARY/FOG LAMPS, WITH 69200173, 71400031 AND 71400044 (DOMESTIC) Price: $80.67 |
| 35 |
69200173 |
SWITCH (DOMESTIC) Price: $68.89 |
| 36 |
70900138 |
HOLE PLUG FAIRING CAP (DOMESTIC) Price: $4.06 |
| 37 |
70900392BYM |
DASH PANEL FAIRING Price: $275.33 |
| 38 |
71400031 |
SWITCH BUTTON BLANK (DOMESTIC) Price: $5.57 |
| 39 |
71400044 |
SWITCH AUXILIARY/FOG LAMPS (DOMESTIC) Price: $19.39 |
| 40 |
76000107A |
STOR COMPT,MEDIA,ASSY This part replaces 76000107. Price: $183.80 |
| 41 |
76000127 |
LATCH Price: $4.91 |
| 42 |
76000234 |
GASKET MEDIA STORAGE Price: $5.89 |
