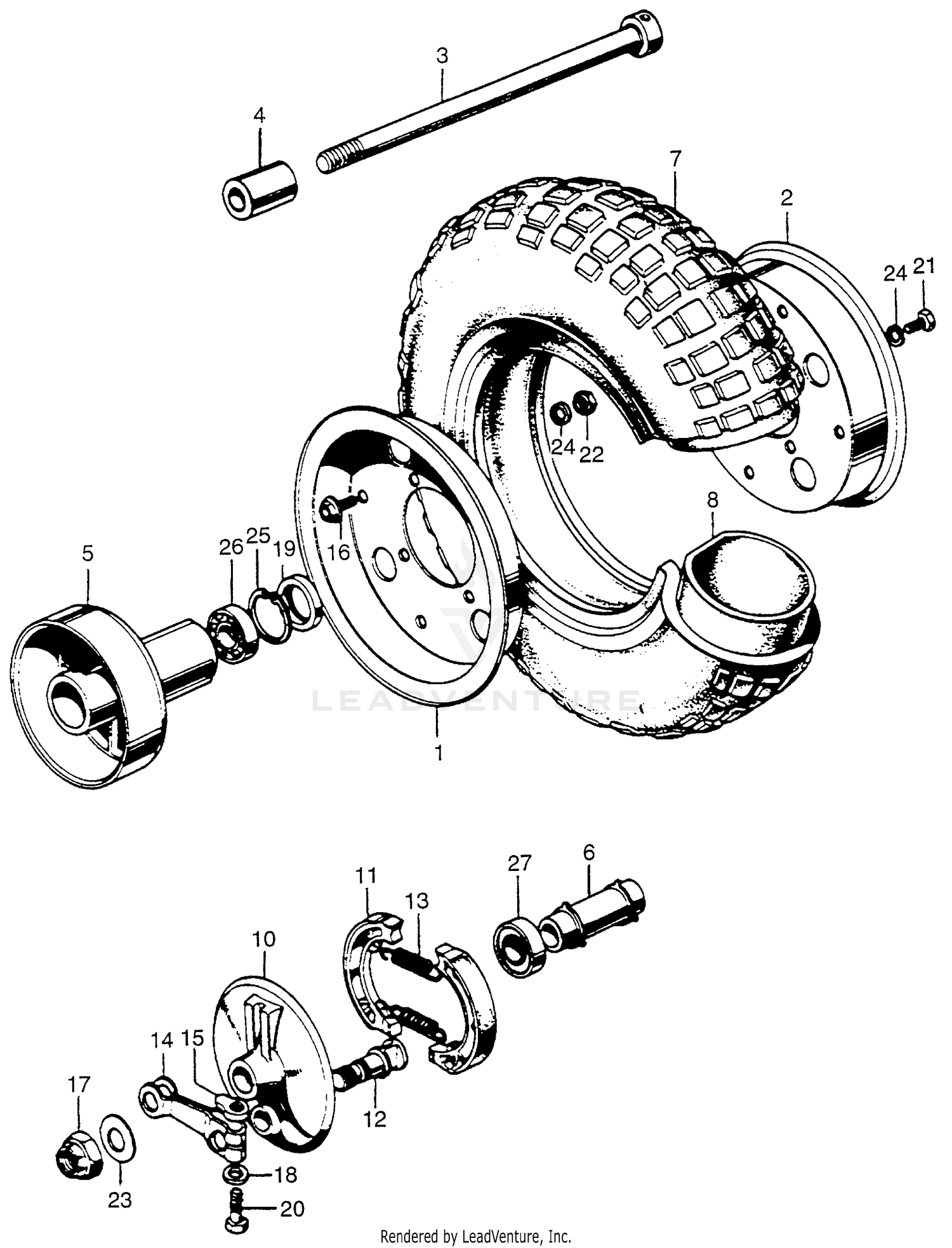

| Ref | Part Number | Description |
|---|
| NI |
06450-178-932 |
SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003. Price: $30.16 |
| 1 |
42701-045-671ZA |
RIM, R. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42701-045-670AU. Price: $34.81 |
| 2 |
42702-045-671ZA |
RIM, L. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42702-045-670AU. Price: $30.90 |
| 3 |
44301-045-010 |
AXLE, FR. WHEEL Price: $14.26 |
| 4 |
44311-045-670 |
COLLAR, FR. WHEEL SIDE Price: $6.38 |
| 7 |
42711-130-672 |
TIRE, WHEEL (3.50-8) (NITTO) (NOT AVAILABLE) Price: $18.41 |
| 8 |
08400-12010 |
TUBE (300/350-8) (NOT AVAILABLE) Price: $7.72 |
| 8 |
42712-GC3-004 |
TUBE, TIRE (3.00-8) (IRC) Price: $31.45 |
| 8 |
44712-120-003 |
TUBE, TIRE (3.50-8) (BS) This part replaces 42712-GC3-003. Price: $28.56 |
| 10 |
45100-045-020ZA |
PANEL, RR. BRAKE *CLEAR* (CLEAR) (NOT AVAILABLE) This part replaces 45100-045-020. Price: $102.21 |
| 11 |
45120-001-010 |
SHOE, BRAKE (SEE KIT P/N--451A0-001-670) (N/A: USE P/N 451A0-001-670) Price: $5.96 |
| 12 |
45131-045-000 |
CAM, RR. BRAKE (NOT AVAILABLE) Price: $33.38 |
| 13 |
45133-028-000 |
SPRING, BRAKE SHOE Price: $2.33 |
| 14 |
45410-045-405 |
ARM, FR. BRAKE This part replaces 45410-045-670. Price: $17.32 |
| 15 |
45436-001-000 |
NUT, FR. BRAKE ARM SETTING Price: $2.15 |
| 18 |
90525-001-000 |
WASHER, RR. BRAKE ARM Price: $2.05 |
| 19 |
91252-001-023 |
OIL SEAL (21X35X5.5) This part replaces 91252-001-020. Price: $7.71 |
| 20 |
92101-06025-0A |
BOLT, HEX. (6X25) This part replaces 92000-06025. Price: $1.70 |
| 21 |
92101-08016-0A |
BOLT, HEX. (8X16) This part replaces 92000-08016. Price: $1.55 |
| 22 |
94030-08000 |
NUT, HEX. (8MM) Price: $1.12 |
| 23 |
94101-12000 |
WASHER, PLAIN (12MM) Price: $1.28 |
| 24 |
94111-08000 |
WASHER, SPRING (8MM) Price: $1.03 |
| 25 |
94520-32000 |
CIRCLIP (INNER) (32MM) Price: $1.85 |
| 26 |
96100-62010-00 |
BEARING, RADIAL BALL (6201) This part replaces 96100-62010. Price: $10.15 |
| 27 |
96140-62010-00 |
BEARING, RADIAL BALL (6201U) This part replaces 96140-62010. Price: $11.67 |
