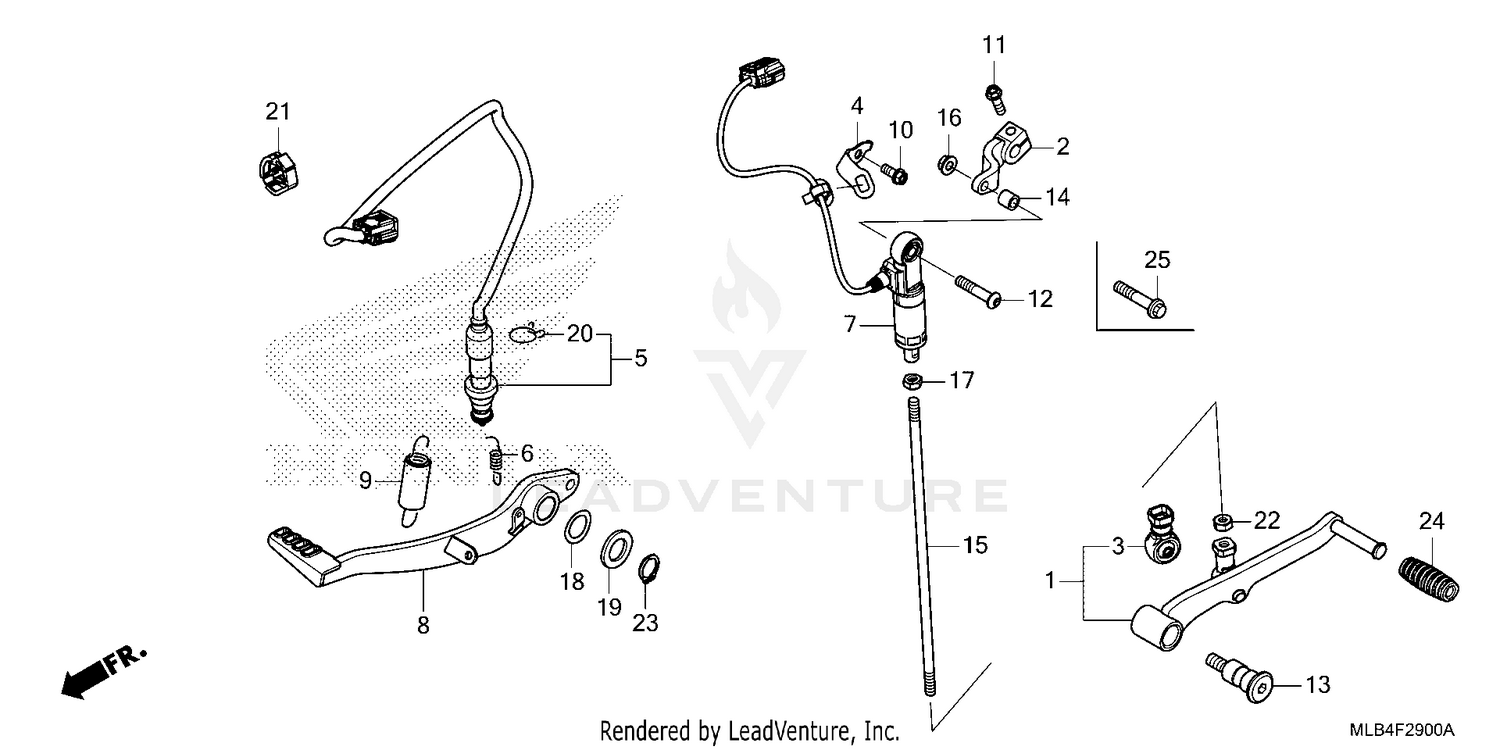

| Ref | Part Number | Description |
|---|
| 1 |
24705-MLB-D00 |
PEDAL, GEARSHIFT Price: $92.89 |
| 2 |
24711-MLB-D00 |
ARM, GEARSHIFT (NOT AVAILABLE) Price: $38.85 |
| 3 |
24724-MBW-D21 |
COVER, DUST Price: $8.76 |
| 4 |
32214-MLB-D00 |
STAY, HARNESS CLIP Price: $3.47 |
| 5 |
35350-MKJ-E51 |
SWITCH, RR. STOP Price: $38.60 |
| 6 |
35357-HP0-A00 |
SPRING, STOP SWITCH Price: $2.93 |
| 7 |
36390-MLB-A21 |
SENSOR ASSY., STROKE Price: $1,010.63 |
| 8 |
46500-KYJ-305 |
PEDAL, RR. BRAKE (COO) Price: $23.05 |
| 9 |
46513-KYJ-900 |
SPRING ASSY., BRAKE PEDAL Price: $3.69 |
| 10 |
90021-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 11 |
90023-GHB-660 |
BOLT, FLANGE (6X20) Price: $2.05 |
| 13 |
90115-KAF-000 |
BOLT, CHANGE PIVOT Price: $23.93 |
| 14 |
90125-MKK-D00 |
COLLAR (10MM) (OP) Price: $2.22 |
| 15 |
90166-MLB-D00 |
BOLT, TIE ROD Price: $6.38 |
| 16 |
90202-KV3-000 |
NUT, FLANGE (7MM) Price: $2.42 |
| 17 |
90301-MGZ-J00 |
NUT, SPECIAL (6MM) (LEFT HAND THREAD) Price: $2.60 |
| 18 |
90505-MBW-000 |
WASHER, CHANGE PEDAL WAVE Price: $5.05 |
| 19 |
90557-230-000 |
WASHER (15.2X25) Price: $2.73 |
| 20 |
90601-KAF-003 |
CLIP, SWITCH COVER Price: $3.05 |
| 21 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 22 |
94002-06070-0S |
NUT, HEX. (6MM) Price: $0.89 |
| 23 |
94511-15000 |
CIRCLIP (OUTER) (15MM) Price: $0.78 |
| 24 |
95011-40000 |
RUBBER, CHANGE PEDAL Price: $1.44 |
