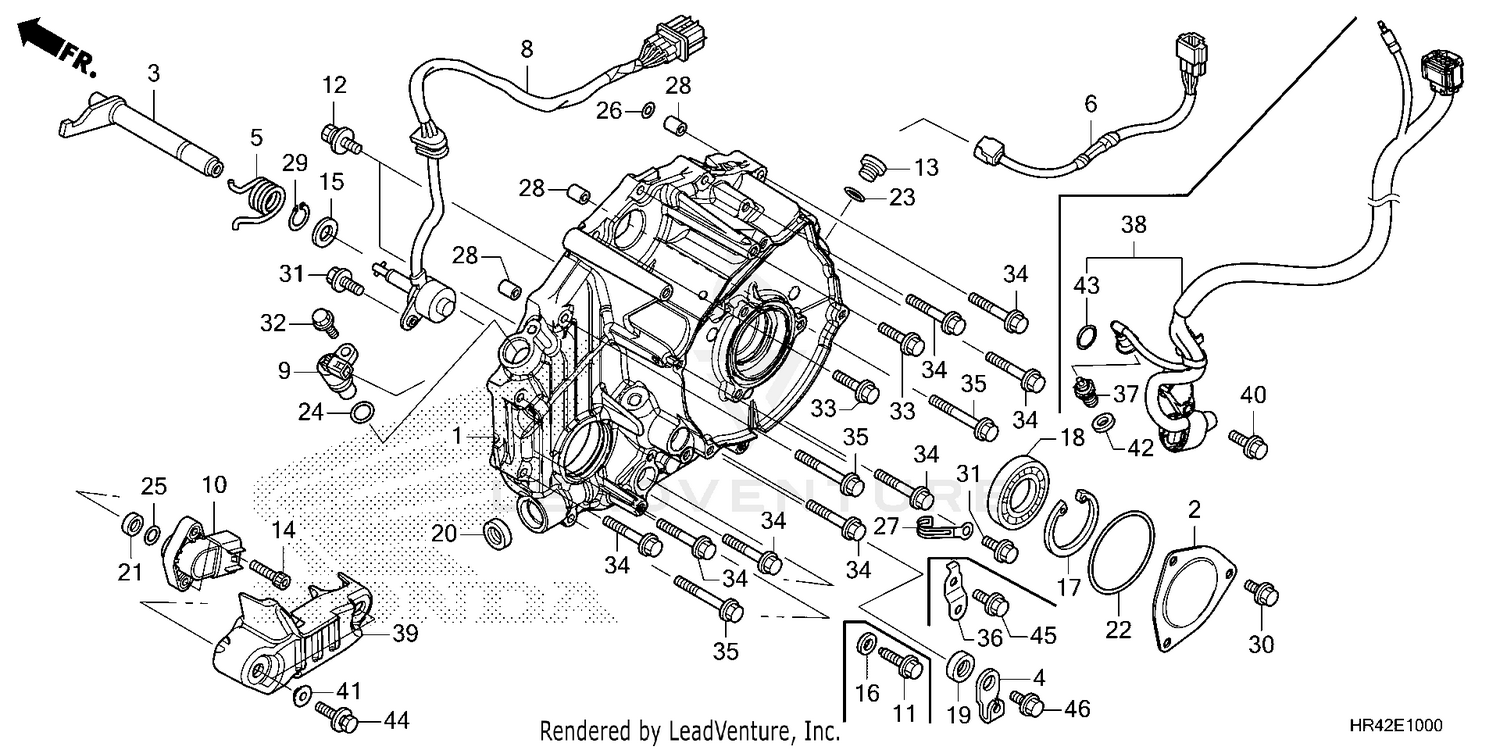

| Ref | Part Number | Description |
|---|
| 1 |
11340-HR4-A90 |
COVER, RR. CRANKCASE Price: $256.44 |
| 2 |
11342-HP5-600 |
CAP, RR. COVER Price: $3.84 |
| 6 |
32101-HR3-HB0 |
SUB-HARNESS, ENGINE Price: $66.42 |
| 9 |
37700-KZR-601 |
SENSOR ASSY., SPEED (TDK-EPC) Price: $53.38 |
| 10 |
38810-HR4-A91 |
SENSOR ASSY., ANGLE Price: $108.05 |
| 13 |
90084-KY2-000 |
CAP (14MM) Price: $19.35 |
| 14 |
90116-HP5-600 |
BOLT, SOCKET (5X20) Price: $3.89 |
| 17 |
90602-GFZ-000 |
CIRCLIP (INNER) (42MM) Price: $4.20 |
| 18 |
91015-HR0-F21 |
BEARING, RADIAL BALL (6806) Price: $21.27 |
| 21 |
91254-792-003 |
OIL SEAL (8X16X6) This part replaces 91208-689-005. Price: $3.42 |
| 22 |
91301-HR3-A40 |
O-RING (58X3) Price: $2.65 |
| 23 |
91303-377-000 |
O-RING (13.8X2.5) Price: $4.29 |
| 24 |
91303-KF0-003 |
O-RING (14.8X2.4) (ARAI) Price: $2.02 |
| 25 |
91308-HN0-A10 |
O-RING, ANGLE SENSOR Price: $3.11 |
| 26 |
91313-MN5-004 |
O-RING (7.8X1.9) (NOK) Price: $2.49 |
| 28 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 30 |
95701-06012-00 |
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) Price: $1.70 |
| 32 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 33 |
95701-06025-00 |
BOLT, FLANGE (6X25) Price: $1.88 |
| 34 |
95701-06040-00 |
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) Price: $1.97 |
| 35 |
95701-06050-00 |
BOLT, FLANGE (6X50) (Honda Code 2410975) Price: $2.27 |
| 36 |
32159-HR6-B00 |
STAY, HARNESS CLIP Price: $4.40 |
| 37 |
35600-HL4-003 |
SWITCH, NEUTRAL Price: $23.47 |
| 38 |
38800-HR4-A91 |
SENSOR ASSY., ANGLE Price: $246.29 |
| 39 |
38805-HR4-A90 |
GUARD, ANGLE SENSOR Price: $48.24 |
| 40 |
90011-MGE-D00 |
BOLT, KNOCK (6MM) Price: $3.29 |
| 41 |
90127-KF0-770 |
COLLAR (6X4) Price: $4.29 |
| 42 |
90545-MC0-000 |
WASHER, OIL BOLT (10.2X15X1.4) Price: $4.25 |
| 43 |
91310-HR6-B00 |
O-RING (14.8X1.9) Price: $5.04 |
| 44 |
93404-06020-08 |
BOLT-WASHER (6X20) Price: $1.70 |
