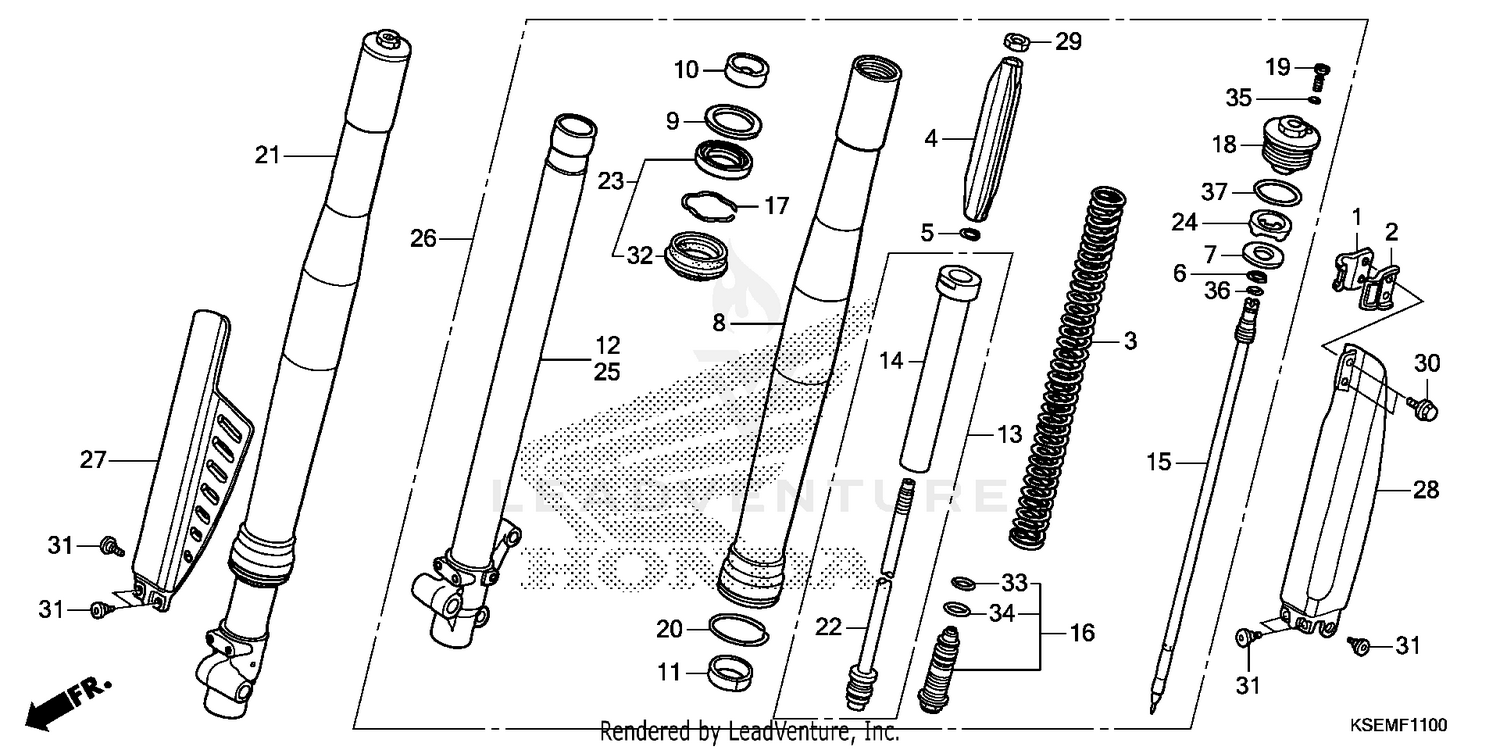

| Ref | Part Number | Description |
|---|
| 1 |
45461-GBF-J00 |
CLAMP A, FR. BRAKE HOSE Price: $13.00 |
| 2 |
45462-GBF-J00 |
CLAMP B, FR. BRAKE HOSE Price: $11.35 |
| 3 |
51401-KSE-671 |
SPRING, FR. FORK (3.33N/MM,0.34KGF/MM) Price: $76.09 |
| 4 |
51404-GBF-831 |
GUIDE, SPRING Price: $34.47 |
| 5 |
51405-GBF-831 |
RING, STOPPER Price: $5.62 |
| 6 |
51405-MC7-003 |
RING, STOPPER Price: $2.73 |
| 7 |
51408-GBF-831 |
SEAT, SPRING Price: $5.62 |
| 8 |
51410-KSE-305 |
TUBE (OUTER) (COO) Price: $429.45 |
| 9 |
51412-461-003 |
RING, BACK-UP Price: $8.84 |
| 10 |
51414-KSE-A71 |
BUSH, GUIDE Price: $12.45 |
| 11 |
51415-KSE-A71 |
BUSH, SLIDER Price: $10.78 |
| 12 |
51420-KSE-A71 |
PIPE, R. SLIDE Price: $325.45 |
| 13 |
51430-KSE-A71 |
DAMPER, FR. Price: $199.75 |
| 14 |
51431-KSE-A71 |
DAMPER SUB, FR. Price: $141.64 |
| 15 |
51436-GBF-J01 |
NEEDLE, REBOUND Price: $35.36 |
| 16 |
51441-KSE-N11 |
BOLT, CENTER (SHOWA) Price: $70.96 |
| 17 |
51447-KR6-003 |
RING, OIL SEAL STOPPER Price: $4.75 |
| 18 |
51450-GBF-831 |
BOLT, FR. FORK Price: $73.84 |
| 19 |
51456-KZ3-731 |
BOLT, PLUG (SHOWA) Price: $11.60 |
| 20 |
51476-GBF-831 |
RING, WEAR Price: $4.33 |
| 21 |
51480-KSE-N11 |
FORK SUB-ASSY., R. FR. (SHOWA) Price: $939.00 |
| 22 |
51481-KSE-A71 |
ROD, PISTON Price: $91.55 |
| 23 |
51490-GBF-J21 |
SEAL SET, FR. FORK Price: $29.67 |
| 24 |
51517-GBF-831 |
RUBBER, STOPPER Price: $7.78 |
| 25 |
51520-KSE-A71 |
PIPE, L. SLIDE Price: $325.45 |
| 26 |
51580-KSE-N11 |
FORK SUB-ASSY., L. FR. (SHOWA) Price: $939.00 |
| 27 |
51610-KSE-N10 |
PROTECTOR, R. FR. FORK Price: $77.16 |
| 28 |
51620-KSE-N10 |
PROTECTOR, L. FR. FORK Price: $77.16 |
| 29 |
52482-GBF-831 |
NUT, HEX. (10MM) Price: $2.84 |
| 30 |
90113-KZ3-000 |
BOLT, FLANGE (6MM) Price: $3.24 |
| 31 |
90113-MAC-780 |
BOLT, PROTECTOR Price: $4.42 |
| 32 |
91254-GBF-831 |
DUST SEAL Price: $13.76 |
| 33 |
91256-GC5-003 |
O-RING (15.5X1.5) Price: $1.73 |
| 34 |
91258-KZ3-B01 |
O-RING (18.8X1.9) Price: $3.11 |
| 35 |
91301-KZ3-731 |
O-RING (2.8X1.9) (SHOWA) Price: $2.31 |
| 36 |
91310-MJ0-003 |
O-RING Price: $2.98 |
