| Ref | Part Number | Description |
|---|
| 1 |
1623-964 |
Screw, Cap Price: $7.23 |
| 2 |
1623-807 |
Washer Price: $1.70 |
| 3 |
1705-419 |
Arm, Steering Price: $65.95 |
| 4 |
8427-602 |
Nut, Hex Price: $0.23 |
| 5 |
1605-083 |
Bushing Price: $45.95 |
| 6 |
1605-164 |
Axle Price: $15.95 |
| 7 |
1605-080 |
Plate, Retaining Price: $19.35 |
| 8 |
8408-836 |
SCREW,CAP-HFH M8X1.25X35 CL8.8 w/2353 Price: $2.66 |
| 9 |
1605-032 |
Ball Joint, Tie Rod - Right-Hand Thread Price: $46.95 |
| 10 |
8420-002 |
Nut, Hex - Right-Hand Thread Price: $0.70 |
| 11 |
1605-147 |
Tube, Tie Rod - Spindle Price: $85.95 |
| 12 |
0423-013 |
Nut, Hex - Left-Hand Thread Price: $0.49 |
| 13 |
1605-019 |
Ball Joint, Steering - Left-Hand Thread Price: $57.95 |
| 14 |
1623-803 |
Washer Price: $1.08 |

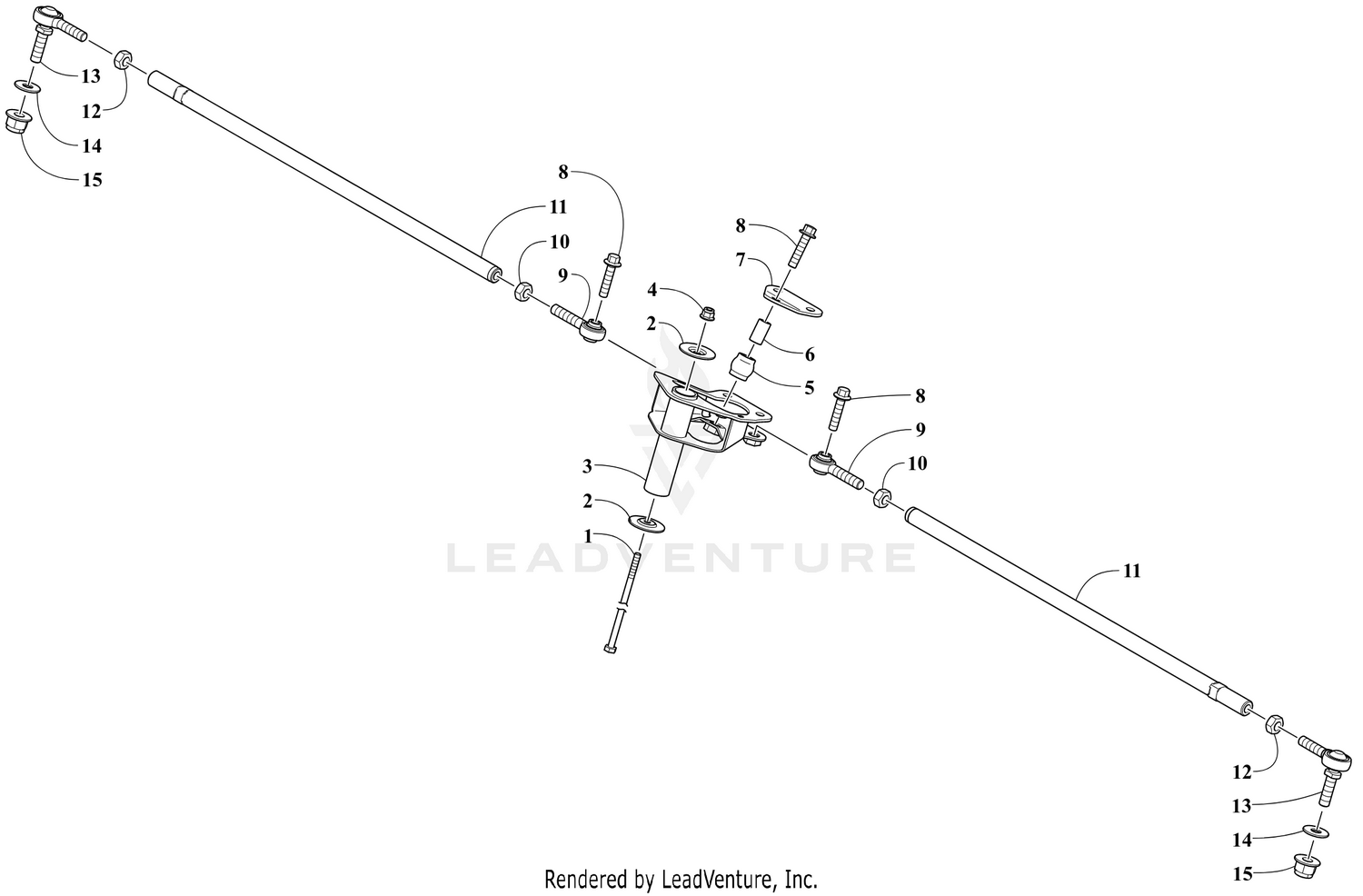

![TIE ROD ASSEMBLY [106229]](https://cdn.datamanager.arinet.com/image/ARCT/da8d2580-2a8f-4633-8f92-4805ffa59390/Max)
