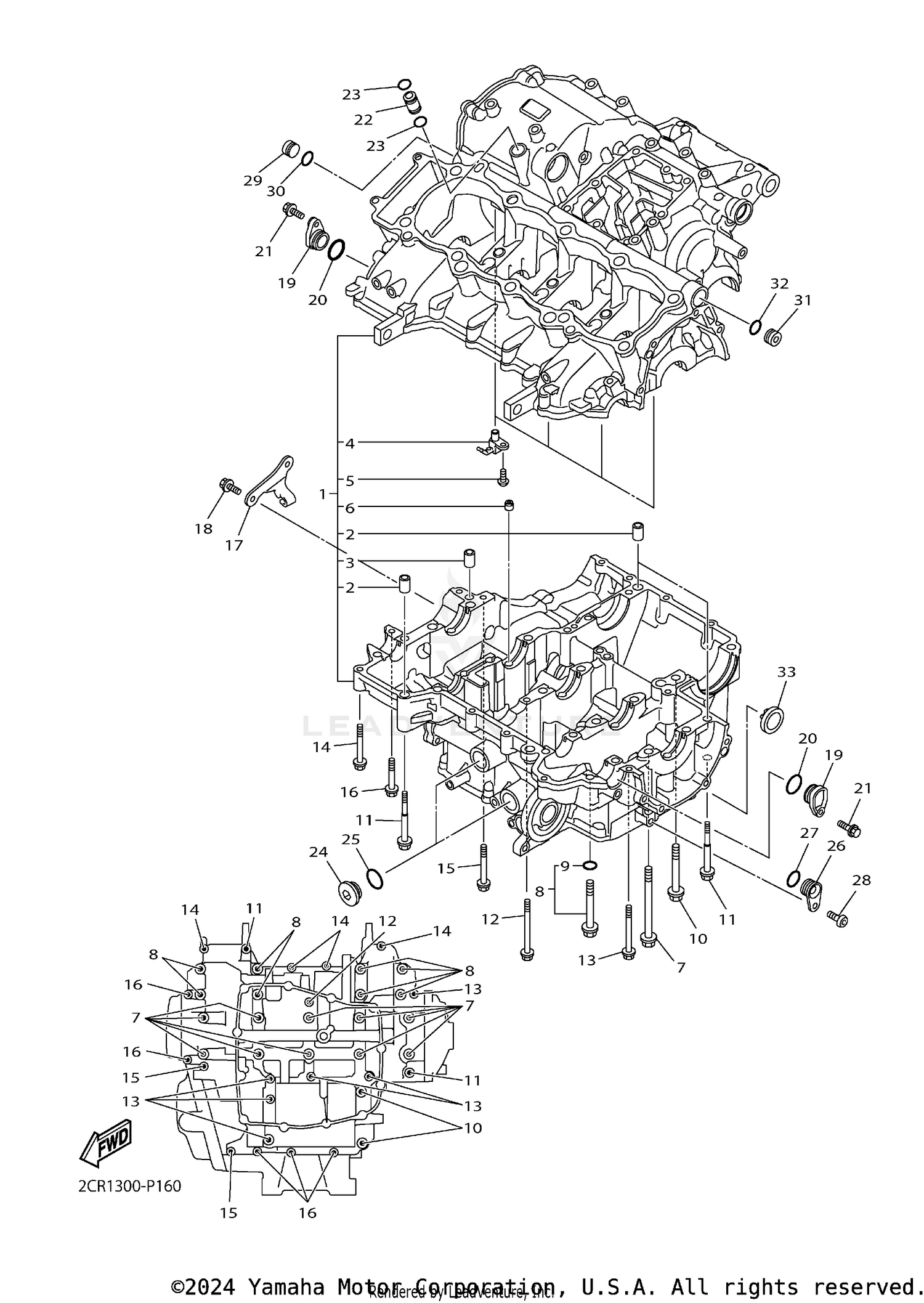

| Ref | Part Number | Description |
|---|
| 2 |
99530-10114-00 |
PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 3 |
91808-16002-00 |
PIN, DOWEL Price: $6.49 |
| 4 |
2CR-15105-10-00 |
NOZZLE ASSY Price: $74.99 |
| 5 |
90149-06156-00 |
SCREW This part replaces 90149-06158-00. Price: $9.49 |
| 6 |
2CR-15138-00-00 |
NOZZLE 1 Price: $5.99 |
| 7 |
90119-09010-00 |
BOLT, WITH WASHER Price: $14.49 |
| 8 |
14B-15156-00-00 |
BOLT, CRANKCASE JOURNAL Price: $9.49 |
| 9 |
93210-07540-00 |
O-RING Price: $7.49 |
| 10 |
95817-08060-00 |
BOLT, FLANGE This part replaces 95812-08060-00. Price: $4.80 |
| 11 |
90109-06100-00 |
BOLT Price: $9.49 |
| 12 |
95812-06070-00 |
BOLT, FLANGE Price: $9.49 |
| 13 |
95812-06060-00 |
BOLT, FLANGE Price: $3.50 |
| 14 |
95812-06050-00 |
BOLT, FLANGE Price: $2.00 |
| 15 |
95812-06050-00 |
BOLT, FLANGE This part replaces 90105-06213-00. Price: $2.00 |
| 16 |
95817-06040-00 |
BOLT, FLANGE This part replaces 95812-06040-00. Price: $6.49 |
| 17 |
2CR-15441-00-00 |
HOLDER, CLUTCH CABLE Price: $11.99 |
| 18 |
90110-06400-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06399-00. Price: $2.55 |
| 19 |
2CR-15189-00-00 |
PLUG Price: $15.49 |
| 20 |
93210-23326-00 |
O-RING Price: $9.49 |
| 21 |
90110-06396-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.20 |
| 22 |
2CR-13191-00-00 |
PIPE, DELIVERY 4 Price: $8.49 |
| 23 |
93210-11453-00 |
O-RING Price: $8.49 |
| 24 |
4H7-15189-00-00 |
PLUG Price: $33.99 |
| 25 |
93210-20802-00 |
O-RING This part replaces 93210-207A0-00. Price: $0.95 |
| 26 |
2CR-15319-02-00 |
JOINT This part replaces 2CR-15319-01-00. Price: $32.99 |
| 27 |
93210-13657-00 |
O-RING Price: $8.49 |
| 28 |
90149-06068-00 |
SCREW Price: $4.70 |
| 29 |
90338-16262-00 |
PLUG Price: $16.49 |
| 30 |
93210-12790-00 |
O-RING Price: $8.49 |
| 31 |
90338-16009-00 |
PLUG Price: $13.49 |
| 32 |
93210-16325-00 |
O-RING Price: $8.49 |
