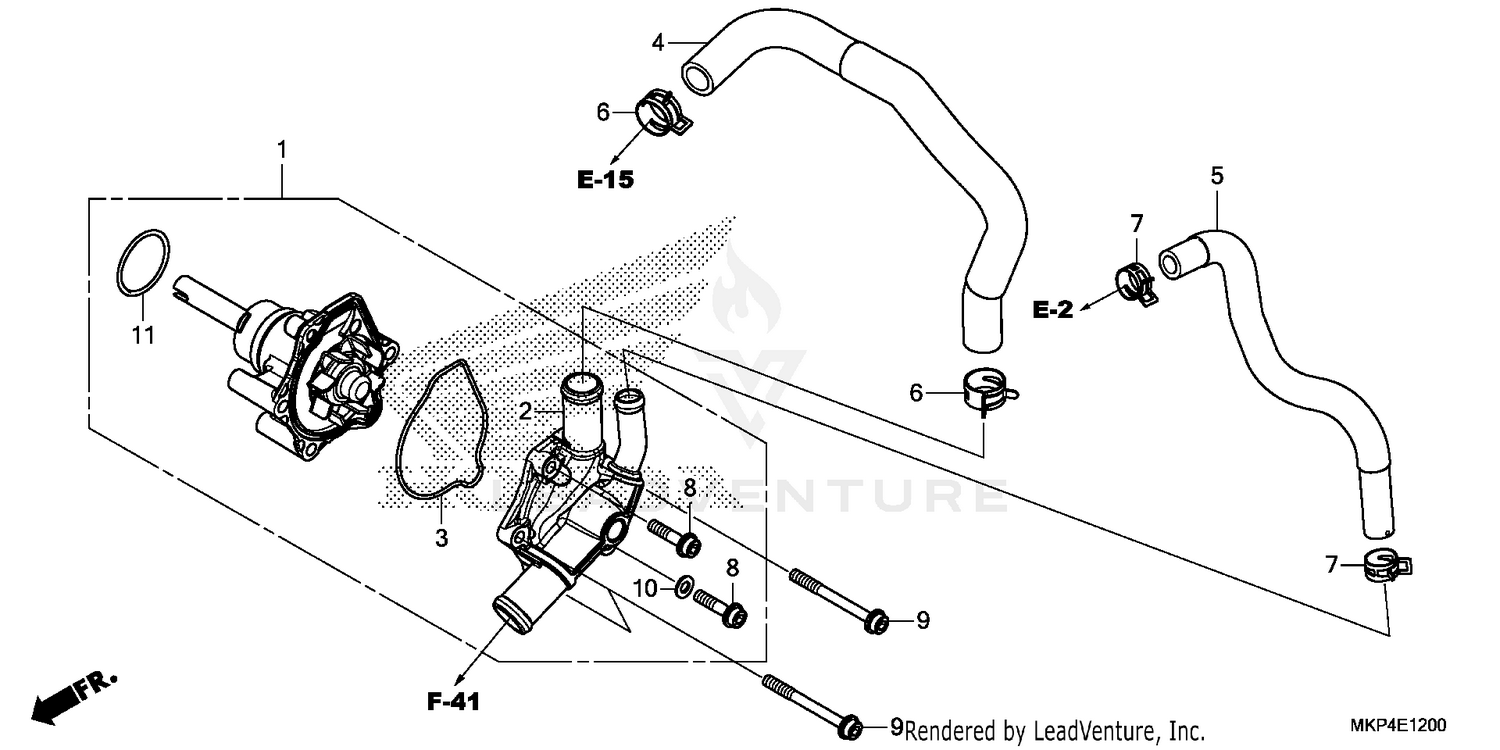

WATER PUMP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 19200-MKP-305 | WATER PUMP Price: $150.00 |
| 2 | 19220-MGZ-J00 | COVER, WATER PUMP Price: $96.45 |
| 3 | 19226-MGZ-J00 | GASKET, WATER PUMP BODY Price: $6.22 |
| 4 | 19525-MKP-D00 | HOSE A, WATER Price: $40.69 |
| 5 | 19526-MKP-D00 | HOSE, WATER BYPASS Price: $32.38 |
| 6 | 19531-MJW-J00 | CLIP, WATER HOSE (D27) Price: $2.15 |
| 7 | 19535-MJW-J00 | CLIP, WATER HOSE (D21) Price: $1.56 |
| 8 | 90028-GHB-680 | BOLT, FLANGE (6X25) (S-NSHF) Price: $1.25 |
| 9 | 90028-GHB-780 | BOLT, FLANGE (6X60) Price: $1.22 |
| 10 | 90463-ML7-000 | WASHER, SEALING (6.5MM) Price: $3.53 |
