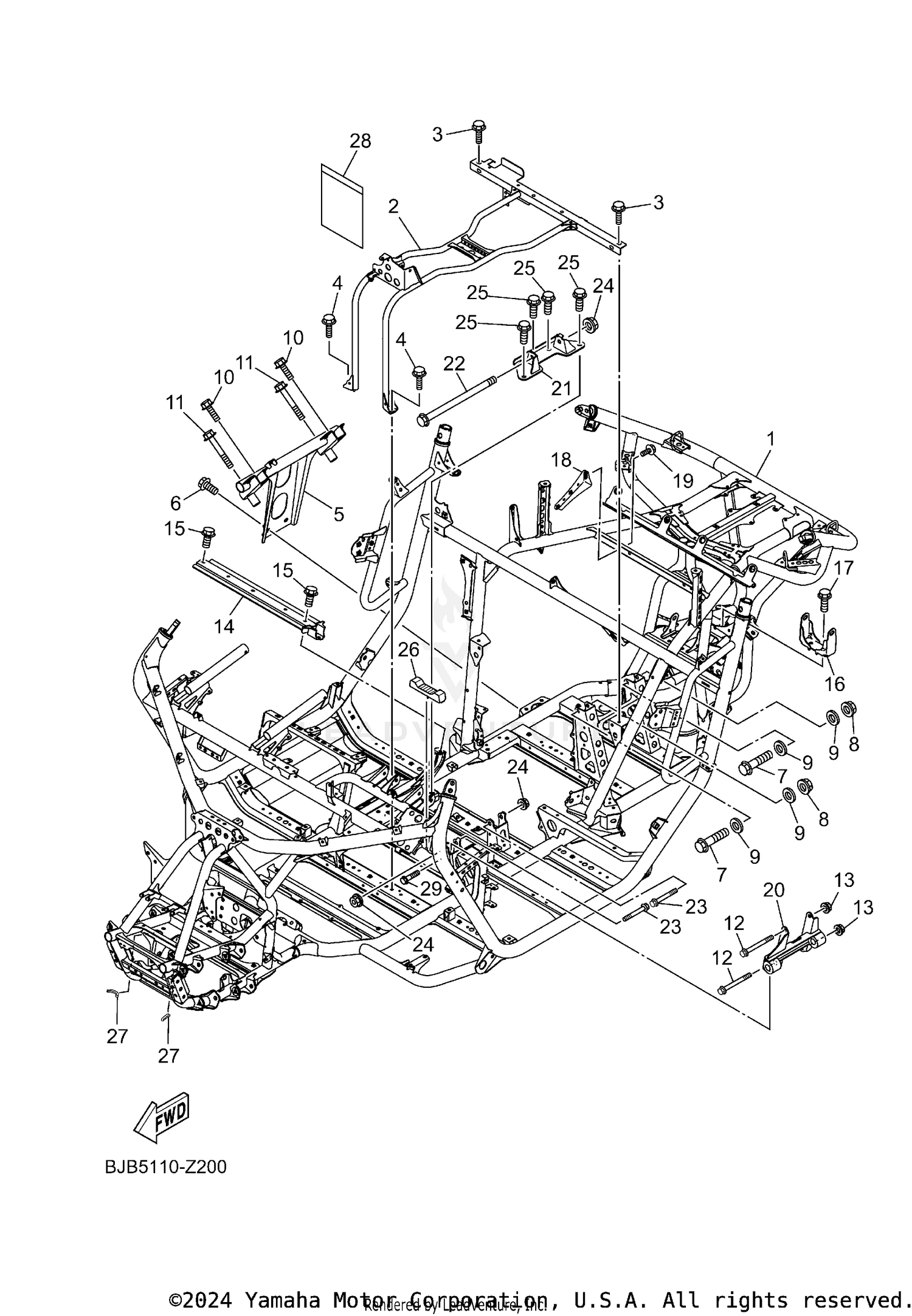

| Ref | Part Number | Description |
|---|
| 1 |
BDW-F1110-10-00 |
FRAME COMP. Price: $5,246.99 |
| 2 |
BJB-F111B-00-00 |
FRAME SUB COMP. Price: $217.99 |
| 3 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 4 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 5 |
BDW-F110A-10-00 |
ENG. MOUNT COMP. Price: $94.99 |
| 6 |
95812-10016-00 |
BOLT, FLANGE Price: $10.49 |
| 7 |
95812-12070-00 |
BOLT, FLANGE Price: $5.49 |
| 8 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 9 |
92990-12200-00 |
WASHER, PLAIN This part replaces 92902-12200-00. Price: $9.49 |
| 10 |
95812-08020-00 |
BOLT, FLANGE Price: $2.80 |
| 11 |
95817-08055-00 |
BOLT, FLANGE This part replaces 95812-08055-00. Price: $4.21 |
| 12 |
90105-10176-00 |
BOLT, FLANGE Price: $13.49 |
| 13 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 14 |
BDW-F1349-00-00 |
BRACKET, SEAT Price: $79.99 |
| 15 |
95817-08025-00 |
BOLT, FLANGE This part replaces 95812-08025-00. Price: $9.49 |
| 16 |
2HC-F194J-00-00 |
STAY, MUFFLER Price: $19.99 |
| 17 |
95812-10016-00 |
BOLT, FLANGE Price: $10.49 |
| 18 |
B5H-F115C-00-00 |
BRACKET Price: $8.49 |
| 19 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 20 |
BJB-F148U-00-00 |
BRACKET 1 Price: $65.99 |
| 21 |
BJB-F148V-00-00 |
BRACKET 2 Price: $31.99 |
| 22 |
90105-12087-00 |
BOLT, FLANGE Price: $22.99 |
| 23 |
90105-12252-00 |
BOLT, WASHER BASED Price: $12.49 |
| 24 |
95607-12200-00 |
NUT, SELF-LOCKING Price: $6.49 |
| 25 |
95812-10016-00 |
BOLT, FLANGE Price: $10.49 |
| 26 |
BDW-F113B-00-00 |
DAMPER Price: $5.49 |
| 27 |
5VN-24188-00-00 |
MOLD, FUEL TANK Price: $38.99 |
| 28 |
1P0-F8186-01-00 |
POUCH Price: $2.90 |
