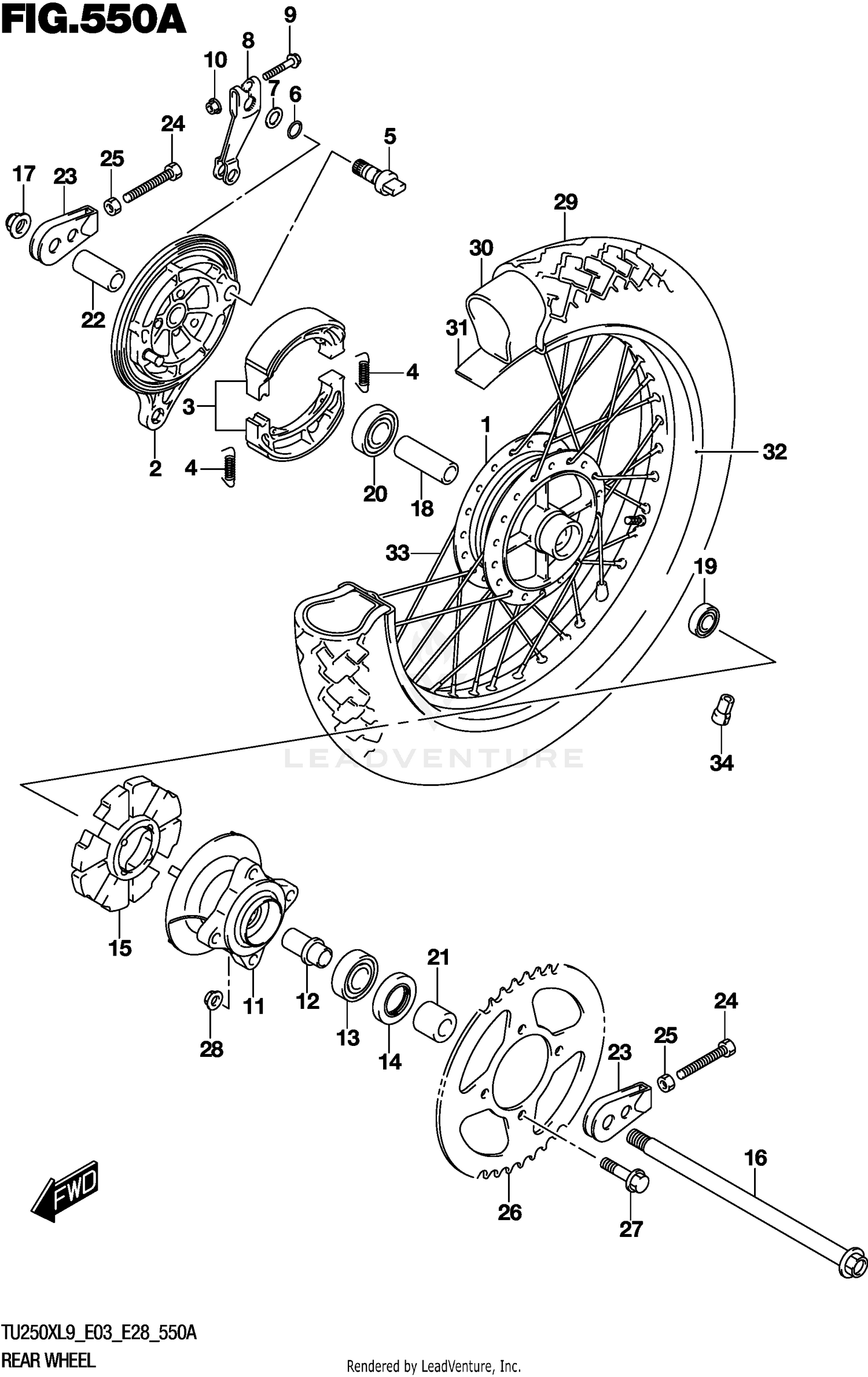

REAR WHEEL
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 64110-07005 | HUB Price: $234.42 |
| 2 | 64210-39115 | PANEL Price: $164.78 |
| 3 | 54402-07810 | SHOE Price: $42.26 |
| 4 | 09443-07025 | SPRING This part replaces 09443-07001. Price: $2.33 |
| 5 | 54441-29305 | CAM,BRAKE Price: $21.62 |
| 6 | 09280-14011 | O RING (D:2.5,ID:13.8) Price: $5.81 |
| 7 | 09160-14055 | WASHER (14.5X22X1.6) Price: $2.91 |
| 8 | 64451-38210 | LEVER Price: $37.34 |
| 9 | 01550-0635B | BOLT Price: $3.33 |
| 10 | 08316-1006B | NUT Price: $3.02 |
| 11 | 64610-38300 | DRUM Price: $165.83 |
| 12 | 64733-38300 | RETAINER Price: $25.67 |
| 13 | 09262-20069 | BEARING (20X47X14) Price: $28.35 |
| 14 | 09285-28004 | SEAL,OIL (27X47X7) This part replaces 09285-28001. Price: $15.20 |
| 15 | 64651-07001 | ABSORBER Price: $24.69 |
| 16 | 64711-08320 | AXLE Price: $60.09 |
| 17 | 08319-3114A | NUT Price: $11.94 |
| 18 | 09180-15011 | SPACER (15.3X21.7X63) Price: $8.61 |
| 21 | 09180-15061 | SPACER (15X28X24.8) Price: $3.56 |
| 22 | 09180-15060 | SPACER (15X22X46.8) Price: $5.13 |
| 23 | 61410-38310 | ADJUSTER Price: $35.91 |
| 24 | 09100-08303 | BOLT (8X50) Price: $3.28 |
| 25 | 08310-0008B | NUT Price: $2.85 |
| 26 | 64511-25D00 | SPROCKET Price: $107.19 |
| 27 | 09103-10044 | BOLT (10X40) Price: $4.93 |
| 28 | 08319-3110A | NUT Price: $3.28 |
| 30 | 65200-26G10 | TUBE ASSY Price: $51.61 |
| 31 | 55261-26G00 | PROTECTOR Price: $43.49 |
| 32 | 65311-26G00 | RIM Price: $403.93 |
| 33 | 65320-26G00 | SPOKE SET Price: $94.02 |
