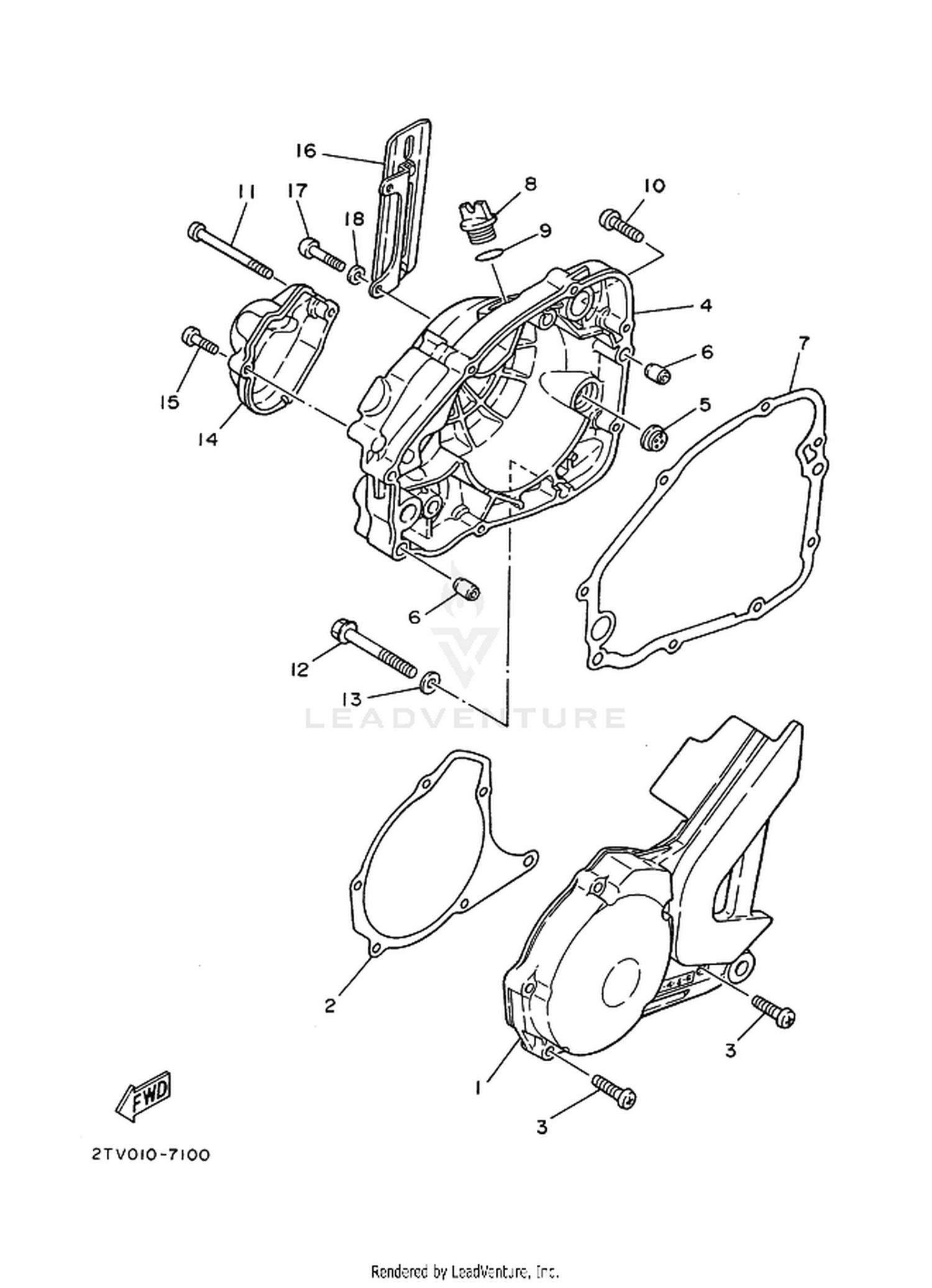

10 ?????????? 1
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2TV-15410-00 | CRANKCASE COVER ASSY 1 Price: Call Us |
| 2 | 2RH-15455-00 | GASKET 1 Price: Call Us |
| 3 | 92580-06030 | SCREW Price: Call Us |
| 4 | 2TV-15421-00 | COVER, CRANKCASE 2 Price: Call Us |
| 5 | 3Y1-15361-00 | GAUGE, LEVEL Price: Call Us |
| 7 | 2RH-15451-00 | GASKET, CRANKCASE COVER 1 Price: Call Us |
| 8 | 1RG-15363-00 | PLUG, OIL Price: Call Us |
| 9 | 93210-19123 | O-RING Price: Call Us |
| 10 | 92580-06030 | SCREW Price: Call Us |
| 11 | 92503-06070 | SCREW, PAN HEAD Price: Call Us |
| 12 | 95801-08070 | BOLT, FLANGE Price: Call Us |
| 13 | 90430-08119 | GASKET Price: Call Us |
| 14 | 2TV-15416-00 | COVER, OIL PUMP Price: Call Us |
| 15 | 92580-06020 | SCREW Price: Call Us |
| 16 | 2TV-15414-00 | COVER 1 Price: Call Us |
| 17 | 92580-06035 | SCREW Price: Call Us |
