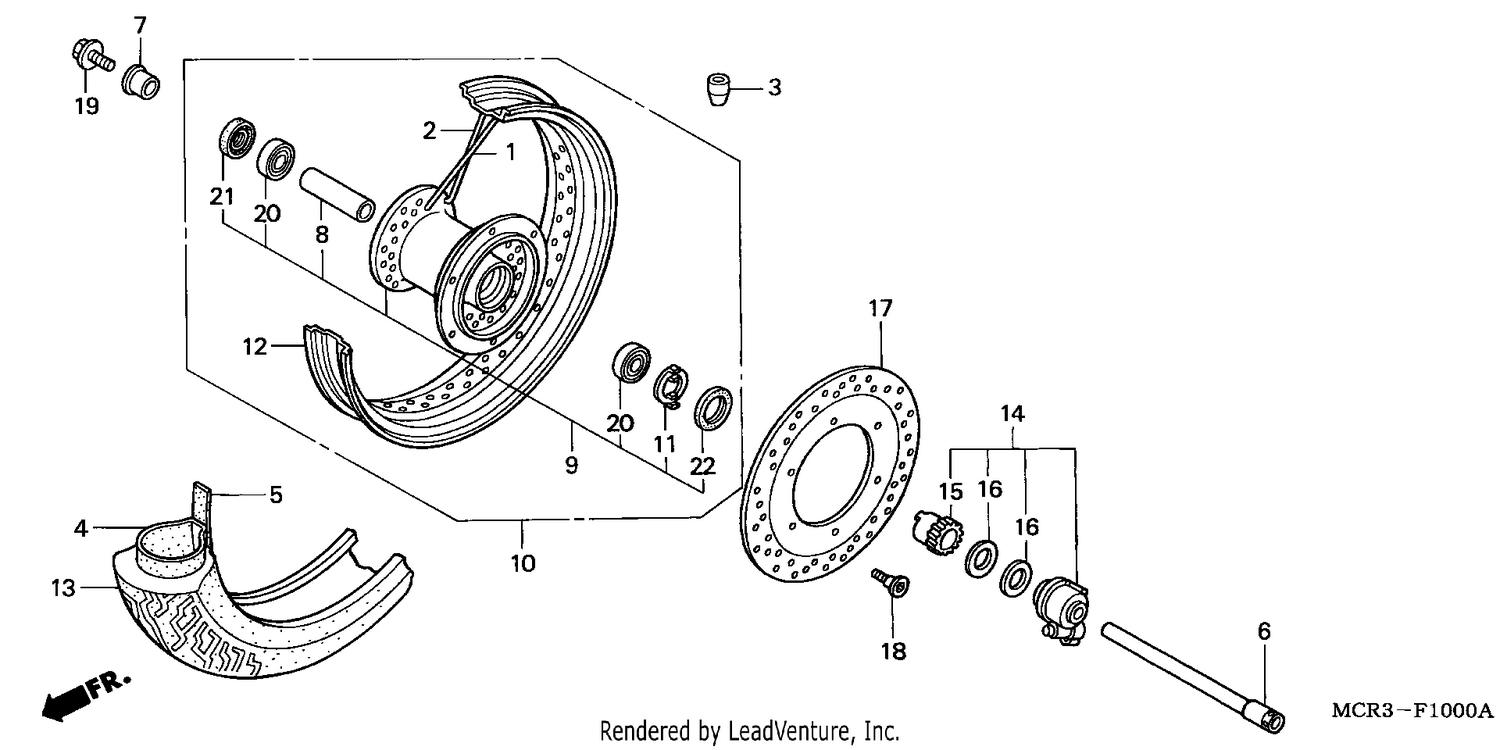

FRONT WHEEL

FRONT WHEEL

Parts (25)

RefPart NumberDescription
1 06440MBA000 SPOKE SET (A) Price: Call Us
2 06441MBA000 SPOKE SET (B) Price: Call Us
3 42707MR6670 WEIGHT, BALANCER (20G) Price: Call Us
3 42708MR1670 WEIGHT, BALANCER (30G) Price: Call Us
4 44712MBA003 TUBE, TIRE (BRIDGESTONE) Price: Call Us
4 44712MBA004 TUBE, TIRE (DUNLOP) Price: Call Us
5 42713MY1003 FLAP, TIRE (BRIDGESTONE) Price: Call Us
5 44713MAV004 FLAP, TIRE (DUNLOP) Price: Call Us
6 44301MAH671 AXLE, FR. WHEEL Price: Call Us
7 44311MM8000 COLLAR, FR. WHEEL SIDE Price: Call Us
8 44620MBC000 COLLAR, FR. AXLE DISTANCE Price: Call Us
9 44635MBA000 HUB SUB ASSY., FR. Price: Call Us
10 44650MBA000 WHEEL SUB ASSY., FR. Price: Call Us
11 44680ML7000 RETAINER, GEAR BOX Price: Call Us
12 44701MBA003 RIM, FR. WHEEL (DAIDO) Price: Call Us
13 44711MBA013 TIRE, FR. (BRIDGESTONE) (120/90-17 M/C 64S) Price: Call Us
13 44711MBA014 TIRE, FR. (DUNLOP) (120/90-17 M/C 64S) Price: Call Us
14 44800MR1003 BOX ASSY., SPEEDOMETER GEAR Price: Call Us
15 44806MR1003 GEAR, SPEEDOMETER Price: Call Us
16 44809ML7003 WASHER, SPEEDOMETER GEAR Price: Call Us
17 45351MBA000 DISK, FR. BRAKE Price: Call Us
18 90105MBB000 BOLT, BRAKE DISK, 8X24 Price: Call Us
19 90105MBT610 BOLT, FR. AXLE Price: Call Us
20 91052MBC004 BEARING, RADIAL BALL, 6204(UU) Price: Call Us
21 91252MC4003 OIL SEAL, 28X47.2X7 (ARAI) Price: Call Us
