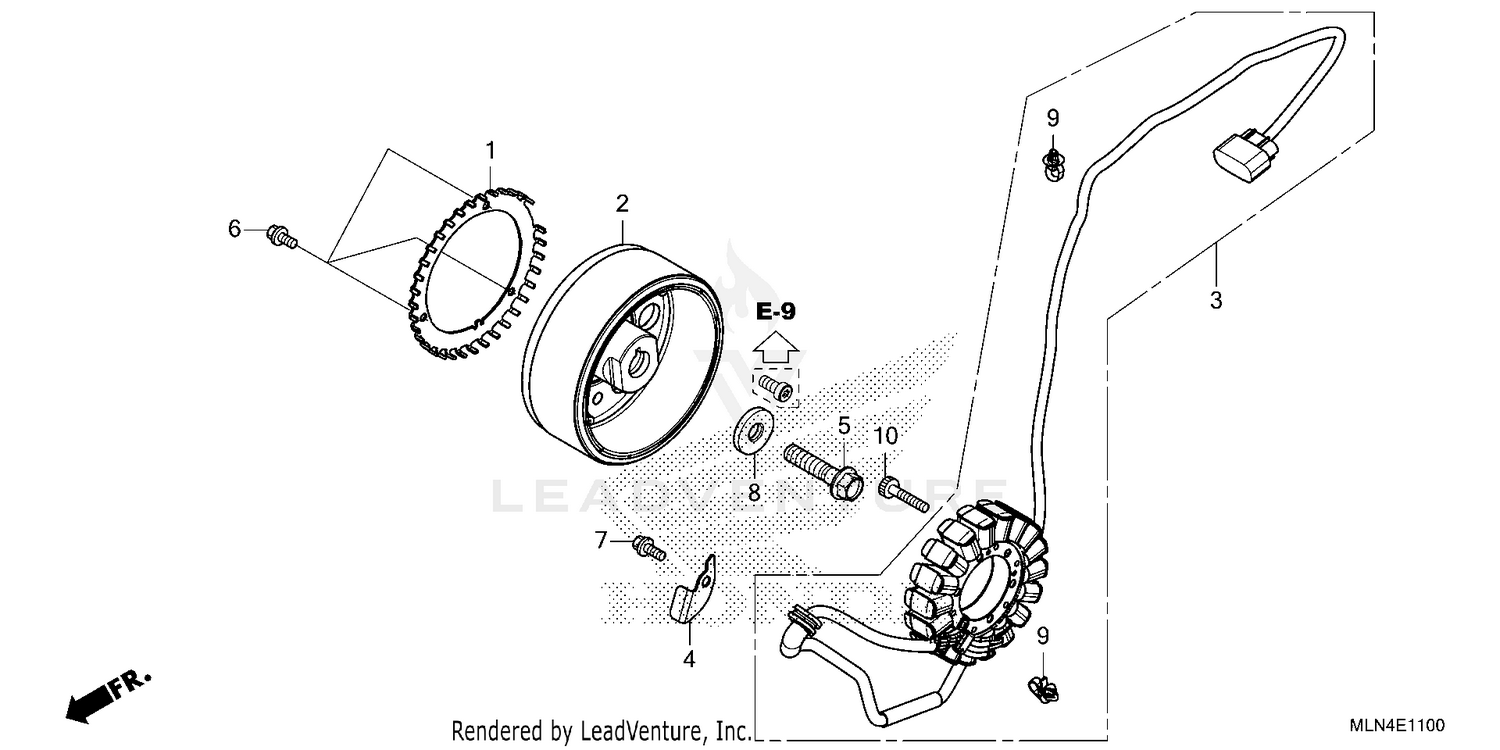

GENERATOR
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 30291-MKS-E00 | PLATE, CRANK PULSER Price: $26.20 |
| 2 | 31110-MLN-E01 | FLYWHEEL Price: $450.20 |
| 3 | 31120-MKS-E01 | STATOR Price: $452.53 |
| 4 | 32961-MKS-E00 | CLAMP, ALTERNATOR WIRE Price: $4.40 |
| 5 | 90023-MJP-G50 | BOLT, FLANGE (12X53) Price: $10.71 |
| 6 | 90025-GHB-610 | BOLT, FLANGE (6X10) Price: $2.45 |
| 7 | 90025-GHB-640 | BOLT, FLANGE (6X16) Price: $2.65 |
| 8 | 90403-MEW-920 | WASHER (12.5X34X5) Price: $5.35 |
| 9 | 91541-S0A-003 | CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.15 |
