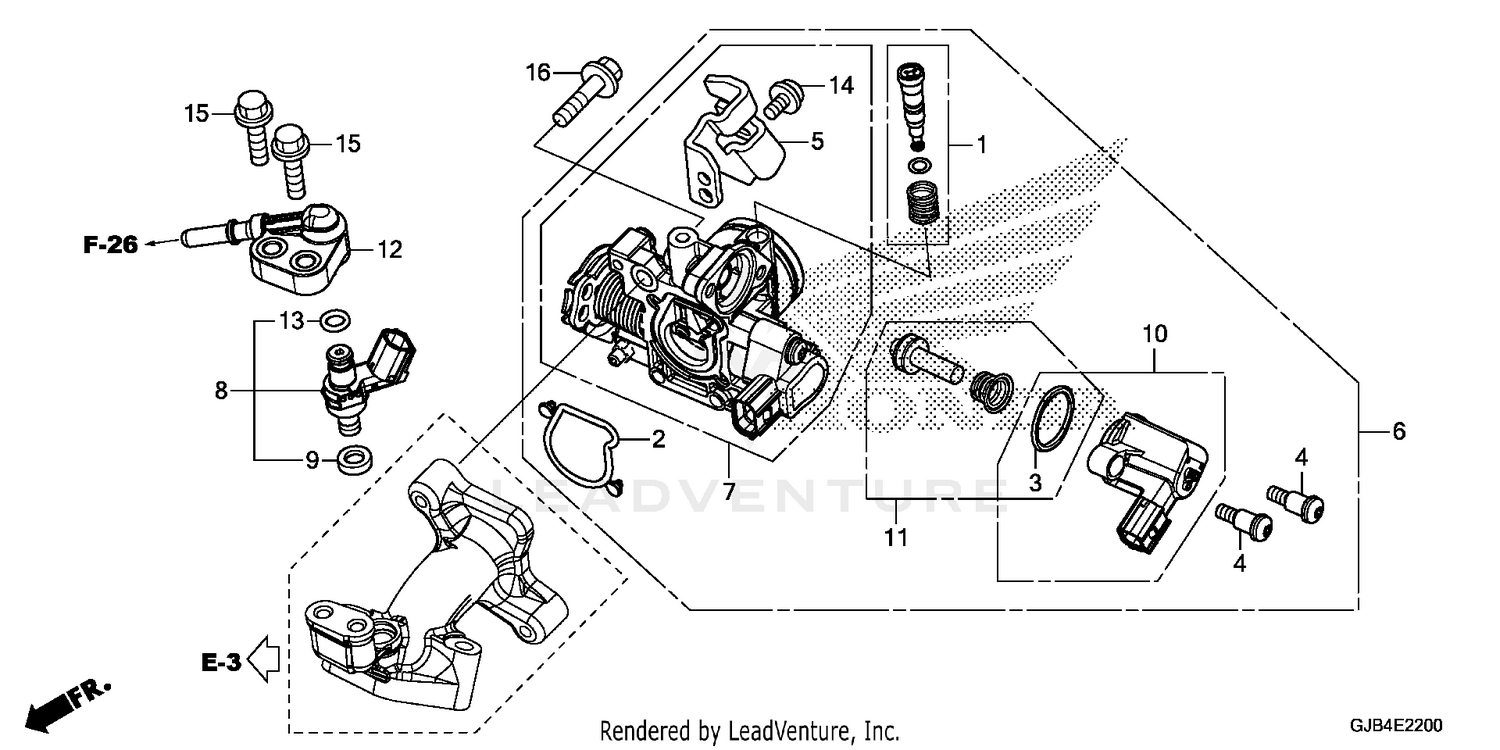

THROTTLE BODY
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16016-K03-H11 | SCREW SET Price: $2.20 |
| 2 | 16075-K25-901 | O-RING, THROTTLE BODY Price: $1.56 |
| 3 | 16077-KVB-S51 | O-RING (1.9X20.4) Price: $1.56 |
| 4 | 16081-KYJ-901 | SCREW, TORX (5X8.7) Price: $3.13 |
| 5 | 16169-GGZ-J01 | STAY, WIRE Price: $8.92 |
| 6 | 16400-GGZ-J41 | BODY ASSY., THROTTLE (WHA A) Price: $321.67 |
| 7 | 16410-GGZ-J41 | BODY SET Price: $320.98 |
| 8 | 16450-GGZ-J01 | INJECTOR ASSY., FUEL Price: $41.58 |
| 9 | 16472-KPC-D50 | RING, SEAL (Honda Code 8954000) Price: $2.56 |
| 10 | 16480-KVB-S51 | SOLENOID Price: $55.02 |
| 11 | 16485-GGZ-J01 | SEAT SET Price: $5.11 |
| 12 | 17560-GGZ-J00 | JOINT, INJECTOR Price: $51.44 |
| 13 | 91301-GGL-J01 | O-RING (6.3X2.2) Price: $12.67 |
| 14 | 93892-05012-08 | SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
| 15 | 95701-06022-00 | BOLT, FLANGE (6X22) Price: $1.88 |
