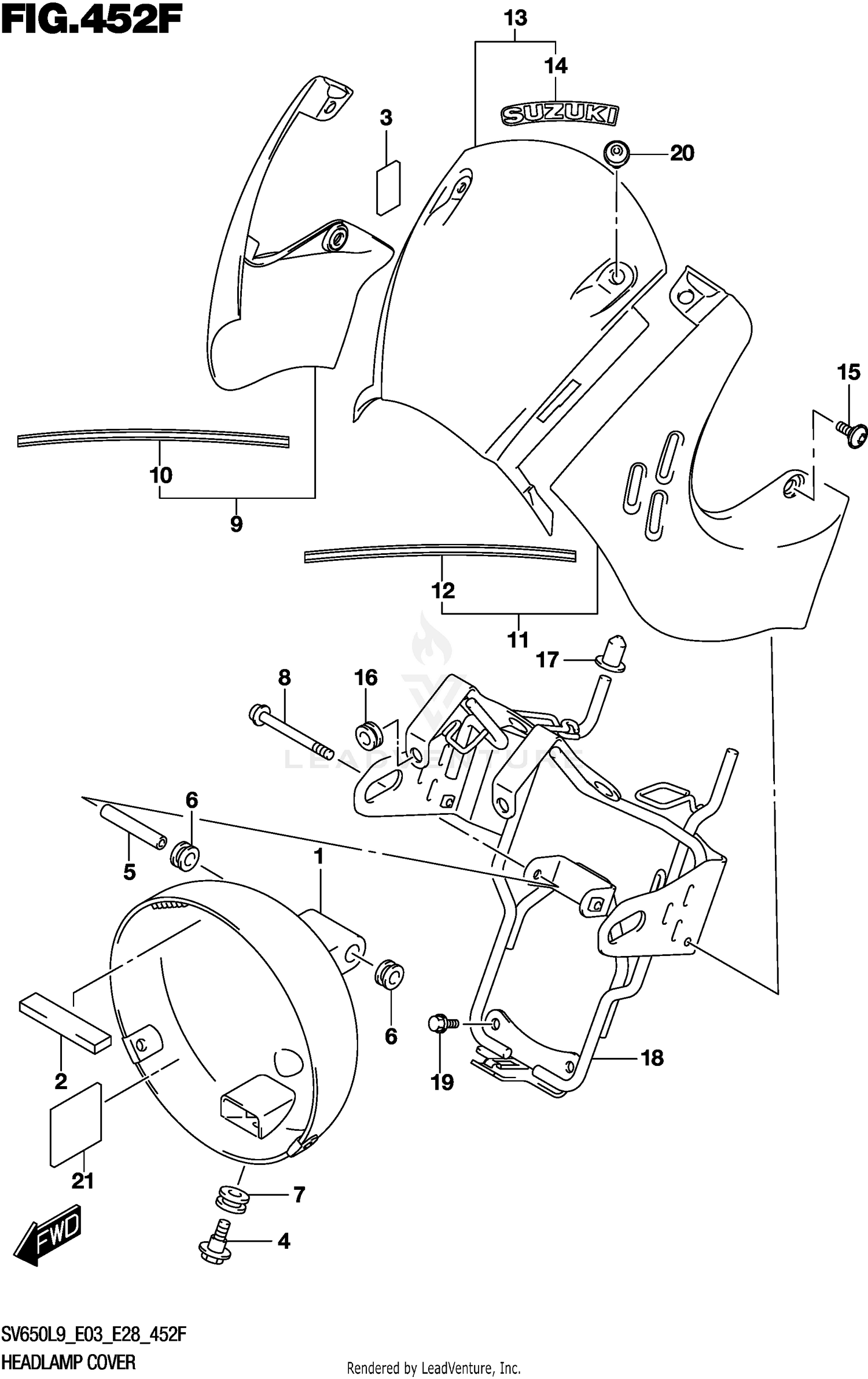

HEADLAMP COVER (SV650XAL9 E33)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 51811-18K01 | COVER,HEADLAMP Price: $54.99 |
| 2 | 51827-13G00 | CUSHION (15X70X7) Price: $4.56 |
| 3 | 47613-44H00 | CUSHION (18X43X5) Price: $7.35 |
| 4 | 09139-06118 | SCREW (6X22.5) Price: $4.12 |
| 5 | 09180-06368 | SPACER (6.5X9X51) Price: $8.47 |
| 6 | 09320-09016 | CUSHION (9X18X9.5) Price: $2.37 |
| 7 | 09320-10501 | CUSHION Price: $6.55 |
| 8 | 07120-0665B | BOLT Price: $4.76 |
| 9 | 51820-18K00-YWW | COVER, METER RH (WHITE) Price: $95.74 |
| 11 | 51830-18K00-YWW | COVER, METER LH (WHITE) Price: $93.97 |
| 13 | 51810-18K01-YVB | COVER,METER CENTER (BLACK) This part replaces 51810-18K00-YVB. Price: $93.98 |
| 15 | 09139-05074 | BOLT (5X13) Price: $3.02 |
| 16 | 09320-06504 | CUSHION Price: $6.04 |
| 17 | 51831-21D00 | CUSHION, HEADLAMP BRACE Price: $5.82 |
| 18 | 51850-18K10 | BRACE,HEADLAMP Price: $234.25 |
| 19 | 09103-06525 | BOLT (6X12) Price: $1.74 |
| 20 | 09139-05504 | SCREW (5X18) Price: $4.56 |
