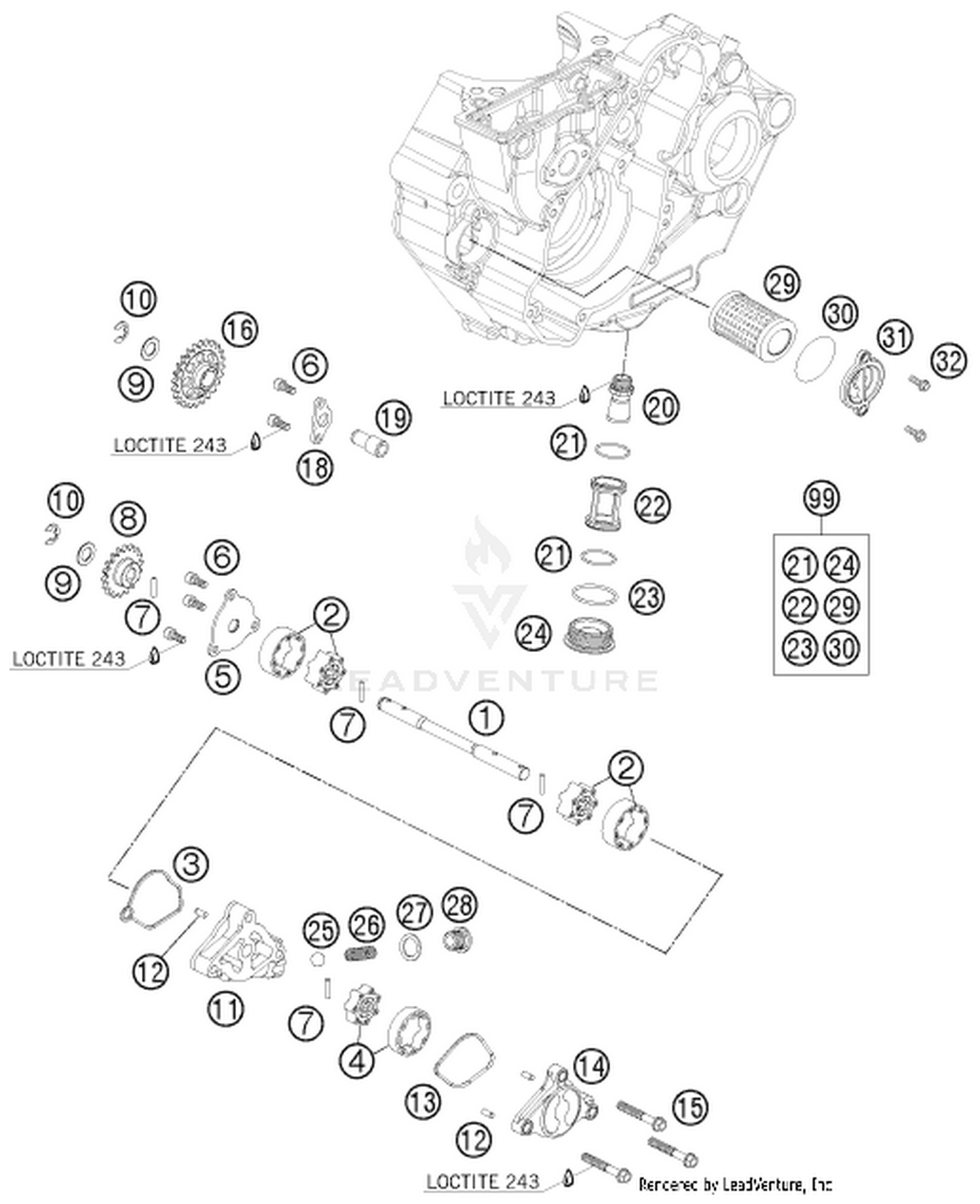

38 LUBRICATING SYSTEM
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 77338002100 | OIL PUMP SHAFT Price: Call Us |
| 2 | 77338107100 | SUCTION PUMP CPL. Price: Call Us |
| 3 | 77338012000 | GASKET PRESSURE PUMP CASE Price: Call Us |
| 4 | 77338207100 | PRESSURE PUMP PEEK D=9MM Price: Call Us |
| 5 | 77338004100 | PUMP COVER 07 Price: Call Us |
| 6 | 0912050123 | AH SCREW DIN0912-M 5X12 Price: Call Us |
| 7 | 0402031580 | NEEDLE ROLLER DIN5402 3X15,8 Price: Call Us |
| 8 | 77338001100 | OIL PUMP GEAR 18-T Price: Call Us |
| 9 | 77338023000 | WASHER 10,2X18X1 Price: Call Us |
| 11 | 77338010100 | PRESSURE PUMP CASE Price: Call Us |
| 12 | 0402040980 | Needle roll.DIN5402 NRB 4X9.8 Price: Call Us |
| 13 | 77338112000 | GASKET PRESSURE PUMP COVER Price: Call Us |
| 14 | 77338013100 | PRESSURE PUMP COVER Price: Call Us |
| 15 | 0025060406 | HH collar screw M6x40 TX30 Price: Call Us |
| 16 | 77338000150 | OILPUMP IDLER GEAR 24-T. Price: Call Us |
| 18 | 77338061050 | LOCK WASHER BEARING BOLT Price: Call Us |
| 19 | 77338061000 | BEARING BOLT Price: Call Us |
| 20 | 77338022000 | OIL INTAKE SNORKEL Price: Call Us |
| 21 | 0770023015 | O-RING 23,00X1,50 NBR 70 Price: Call Us |
| 22 | 77338016100 | OIL SCREEN CPL. Price: Call Us |
| 23 | 0770300020 | O-RING 30X2,0 FPM Price: Call Us |
| 24 | 77338019100 | PLUG SCREW Price: Call Us |
| 25 | 0401100000 | BALL D=10 DIN 5401 Price: Call Us |
| 26 | 77338026100 | COIL SPRING Price: Call Us |
| 27 | 0603142016 | CU-SEAL RING 14X20X1,5 LC8 02 Price: Call Us |
| 28 | 60038033050 | PLUG SCREW M14X1,5 ALU AH Price: Call Us |
| 29 | 77338005100 | Oil Filter 07 Price: Call Us |
| 30 | 07703305178 | O-RING 33,05X1,78 Price: Call Us |
| 31 | 77338041200 | OIL FILTER COVER 08 Price: Call Us |
| 32 | 0025060166 | HH collar screw M6x16 TX30 Price: Call Us |
