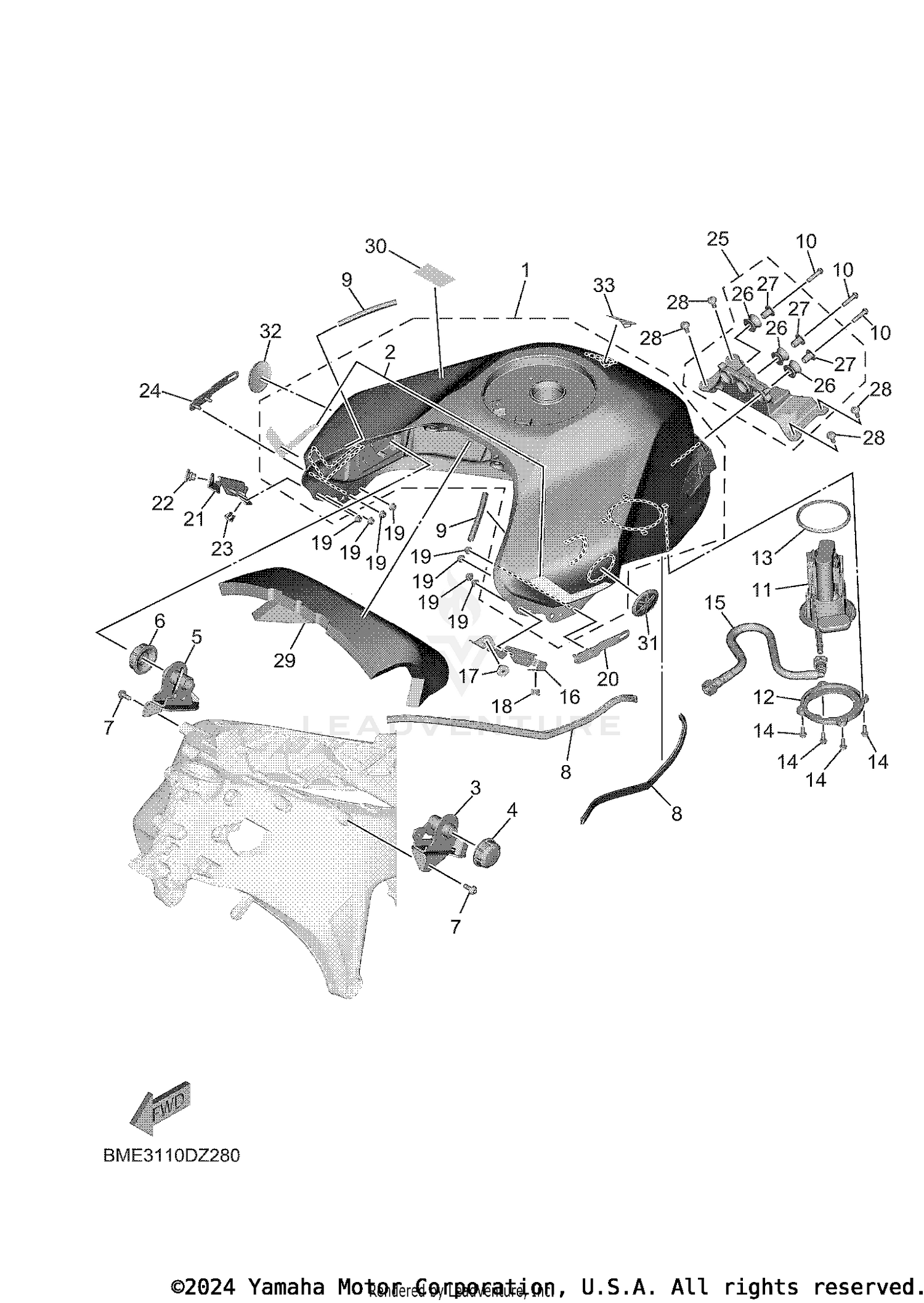

| Ref | Part Number | Description |
|---|
| 3 |
BME-24191-00-00 |
BRACKET, FUEL TANK 1 Price: $68.99 |
| 4 |
BME-24181-00-00 |
DAMPER, LOCATING 1 Price: $12.99 |
| 5 |
BME-24192-00-00 |
BRACKET, FUEL TANK 2 Price: $84.99 |
| 6 |
BME-24181-00-00 |
DAMPER, LOCATING 1 Price: $12.99 |
| 7 |
90111-06059-00 |
BOLT, HEX. SOCKET BUTTON Price: $5.49 |
| 8 |
BME-24188-00-00 |
MOLD, FUEL TANK Price: $16.49 |
| 9 |
BAG-24188-00-00 |
MOLD, FUEL TANK Price: $11.49 |
| 10 |
92012-06025-00 |
BOLT, BUTTON HEAD Price: $3.40 |
| 11 |
1RC-13907-20-00 |
FUEL PUMP COMP. Price: $461.99 |
| 12 |
1RC-24491-00-00 |
BRACKET, FUEL PUMP Price: $30.99 |
| 13 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 14 |
90110-05028-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 15 |
B7N-13971-00-00 |
PIPE, FUEL 1 Price: $63.99 |
| 16 |
BME-2411F-00-00 |
PLATE, FITTING Price: $26.99 |
| 17 |
90179-05525-00 |
NUT Price: $9.49 |
| 18 |
2RP-21719-00-00 |
GROMMET Price: $0.85 |
| 19 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 20 |
BME-2412J-00-00 |
STAY, RR. LH. Price: $19.49 |
| 21 |
BME-2411L-00-00 |
HOOK TANK FITTING Price: $26.99 |
| 22 |
90179-05525-00 |
NUT Price: $9.49 |
| 23 |
2RP-21719-00-00 |
GROMMET Price: $0.85 |
| 24 |
BME-2412K-00-00 |
STAY, RR. RH. Price: $18.49 |
| 25 |
BME-24105-00-00 |
TANK BRACKET ASSY 2 Price: $139.99 |
| 27 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 28 |
90111-06029-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 29 |
BME-2414H-00-00 |
DAMPER, PLATE 1 Price: $26.99 |
| 30 |
29P-2816R-01-00 |
LABEL, WARNING GENER Price: $3.65 |
| 31 |
BME-2413B-01-00 |
EMBLEM This part replaces BME-2413B-00-00. Price: $31.99 |
| 32 |
BME-2414B-01-00 |
EMBLEM This part replaces BME-2414B-00-00. Price: $31.99 |
