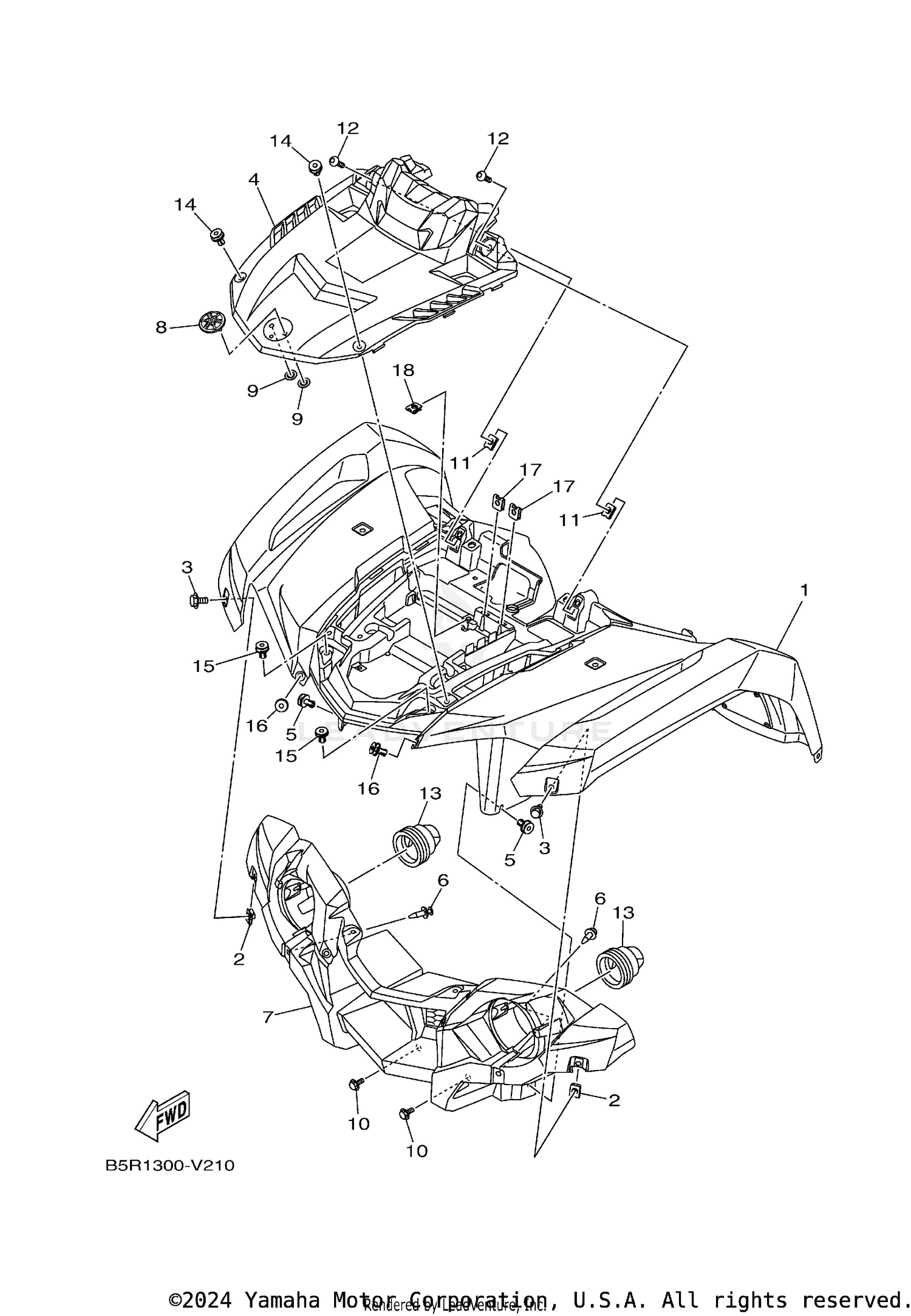

FRONT FENDER
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BB5-F1500-M1-00 | FRONT FENDER ASSY Price: $290.99 |
| 2 | 90183-06069-00 | NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 3 | 90119-06226-00 | BOLT, WITH WASHER Price: $2.80 |
| 4 | BB5-F3391-00-00 | PANEL, FRONT Price: $25.99 |
| 5 | 90269-07010-00 | RIVET Price: $4.70 |
| 6 | 90269-06800-00 | RIVET Price: $1.70 |
| 7 | BB5-F8309-00-00 | GRILLE, FRONT Price: $48.99 |
| 8 | 1XD-F175B-01-00 | TUNING FORK MARK Price: $15.49 |
| 9 | 90183-06071-00 | NUT, SPRING Price: $0.80 |
| 10 | 90109-06043-00 | BOLT Price: $3.00 |
| 11 | 90183-06069-00 | NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 12 | 90111-06084-00 | BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 13 | 5UH-F8349-00-00 | CAP Price: $15.49 |
| 14 | 90269-07010-00 | RIVET Price: $4.70 |
| 15 | 90269-07010-00 | RIVET Price: $4.70 |
| 16 | 90269-07010-00 | RIVET Price: $4.70 |
| 17 | 90183-05008-00 | NUT, SPRING Price: $10.49 |
