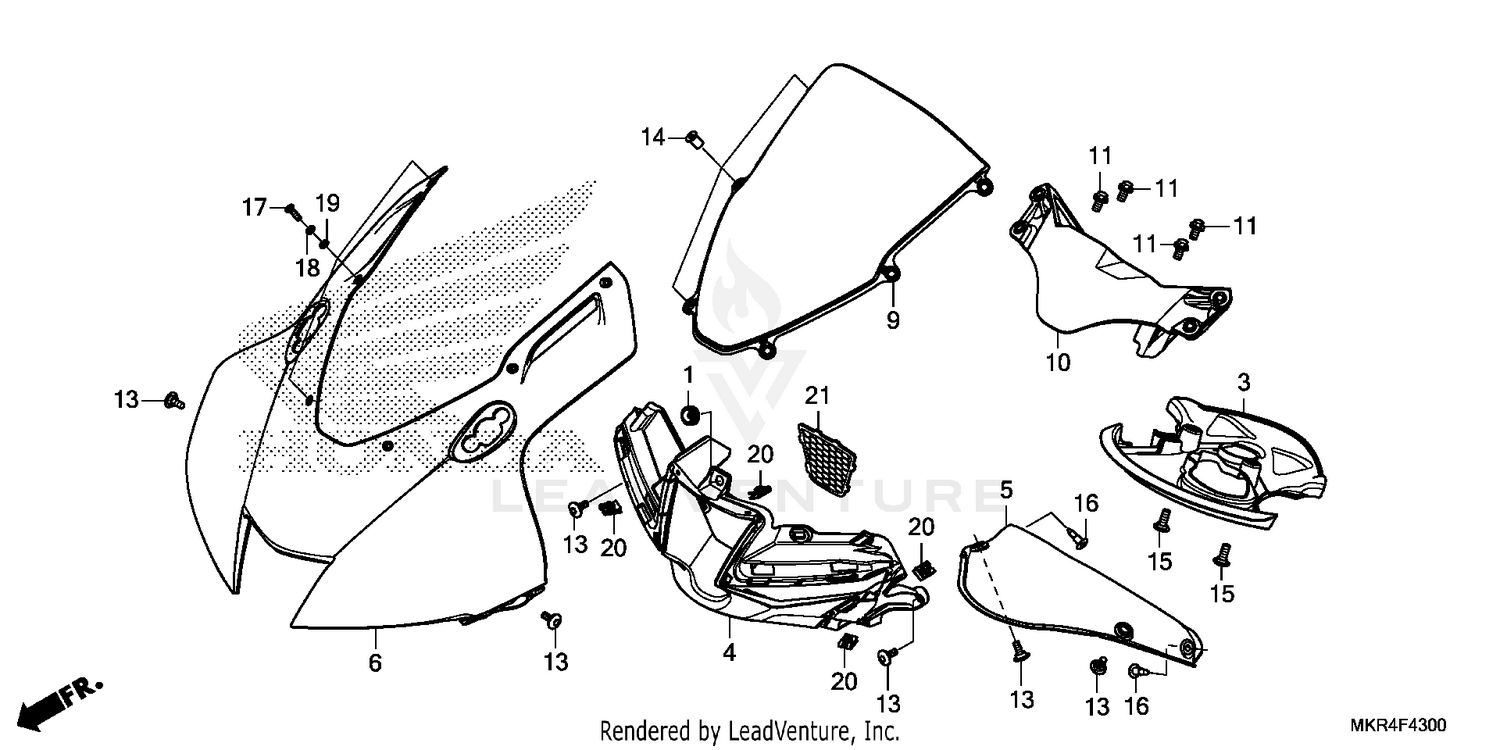

| Ref | Part Number | Description |
|---|
| 1 |
53133-KR1-760 |
GROMMET, IGNITION COVER Price: $5.54 |
| 3 |
61403-MKR-D10 |
PROTECTOR, WIND Price: $23.98 |
| 4 |
64125-MKR-D10ZC |
COVER, IN. (LOWER) (TYPE1) Price: $125.96 |
| 5 |
64130-MKR-D10 |
PANEL, IN. (LOWER) Price: $10.87 |
| 6 |
64200-MKR-D40ZB |
COWL SET, FR. (UPPER) (TYPE1) (WL) Price: $296.80 |
| 9 |
64250-MKR-D10ZA |
WINDSCREEN SET (TYPE1) (WL) Price: $219.82 |
| 10 |
64501-MKR-D10 |
STAY ASSY., COWL (UPPER) Price: $90.84 |
| 11 |
90026-GHB-610 |
BOLT, FLANGE (6X10) Price: $2.55 |
| 13 |
90102-MKA-D80 |
SCREW, SPECIAL (5X14) Price: $3.31 |
| 14 |
90110-MGB-Y00 |
NUT, WELL (4MM) Price: $5.26 |
| 15 |
90116-MFL-D20 |
SCREW, SPECIAL (6X16) Price: $2.96 |
| 16 |
90116-SP0-003 |
CLIP, BUMPER SEAL Price: $5.93 |
| 17 |
90118-MKR-D10 |
BOLT, SPECIAL (4X14) Price: $2.56 |
| 18 |
90505-MKR-D10 |
WASHER, THRUST (4MM) Price: $1.60 |
| 19 |
90506-MKR-D10 |
WASHER, SCREEN SETTING Price: $1.55 |
| 20 |
90677-KAN-961 |
NUT, CLIP (5MM) Price: $5.11 |
