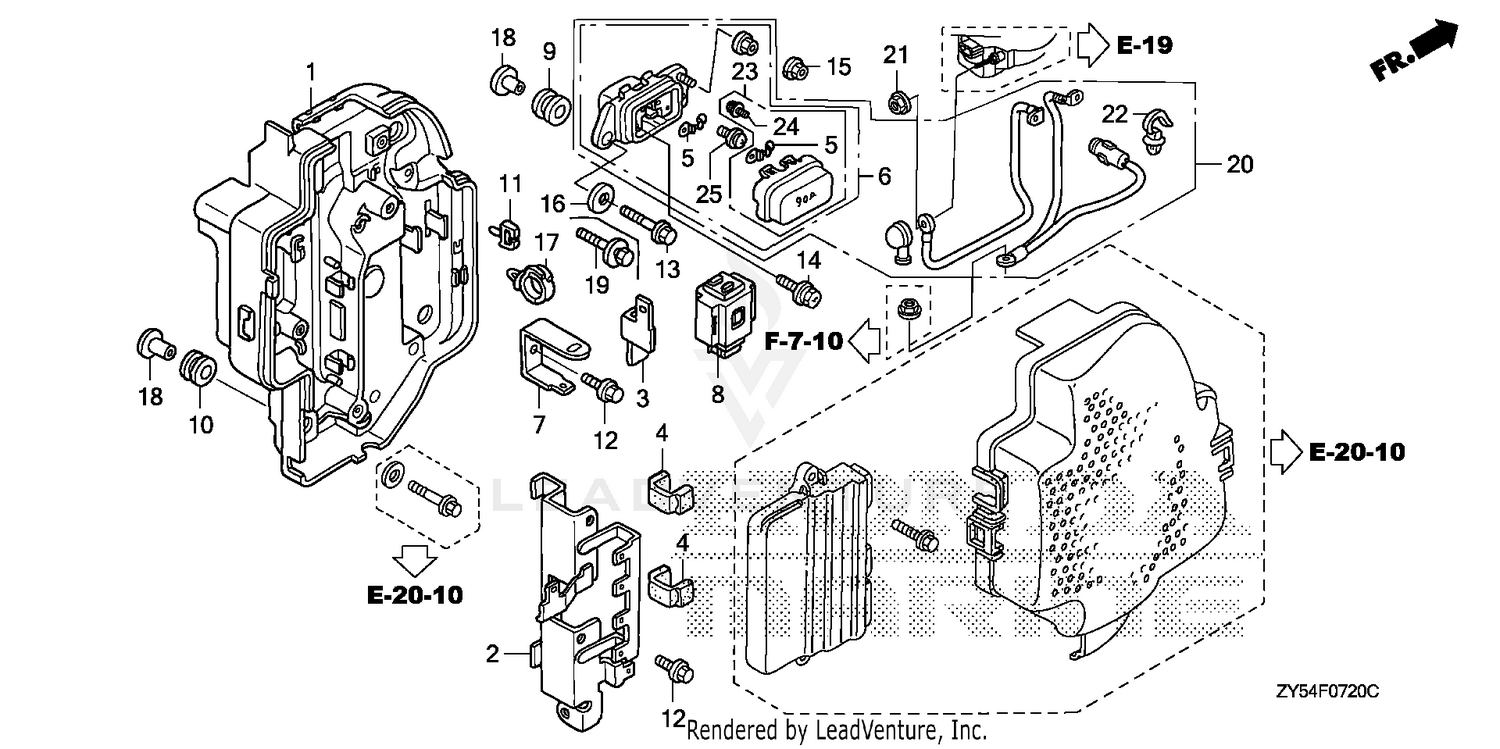

| Ref | Part Number | Description |
|---|
| 1 |
30416-ZY6-010 |
SEE PART DETAILS - PRI; CASE, ELECTRONIC PARTS Price: $62.78 |
| 2 |
32102-ZY6-000 |
BRACKET B, CONNECTOR Price: $84.82 |
| 3 |
32103-ZY6-000 |
BRACKET C, CONNECTOR Price: $10.76 |
| 4 |
34751-ZY6-000 |
SUSPENSION, ECU UNIT Price: $5.70 |
| 5 |
38201-ZW5-003 |
FUSE (90A) Price: $15.10 |
| 6 |
38210-ZY6-003 |
BOX ASSY., FUSE (90A) Price: $75.57 |
| 7 |
38217-ZY6-000 |
BRACKET, FUSE BOX Price: $11.28 |
| 8 |
38543-ZY6-003 |
RELAY ASSY., AIR FUEL SENSOR Price: $89.10 |
| 9 |
38551-ZW1-000 |
GROMMET, RELAY Price: $9.02 |
| 10 |
40102-ZV5-000 |
GROMMET, CASE (LOWER) Price: $3.62 |
| 11 |
80111-KE5-000 |
E-CLIP, WIRE HARNESS Price: $3.50 |
| 12 |
90103-ZZ0-M01 |
BOLT, FLANGE (6X10) Price: $1.80 |
| 14 |
90108-ZY3-000 |
BOLT-WASHER (6X16) Price: $1.38 |
| 15 |
90304-ZY3-000 |
NUT-WASHER (6MM) Price: $1.22 |
| 17 |
90681-763-A01 |
CLIP, WIRE HARNESS Price: $11.04 |
| 18 |
91553-ZV5-010 |
SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI) Price: $3.66 |
| 20 |
32435-ZY6-000 |
CABLE ASSY., ALTERNATOR FUSE Price: $229.50 |
| 21 |
90304-ZY3-000 |
NUT-WASHER (6MM) Price: $1.22 |
| 22 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.98 |
| 23 |
38216-ZY6-003 |
COVER ASSY., FUSE (90A) Price: $12.08 |
| 24 |
90105-ZW5-003 |
SCREW-WASHER (3X7) Price: $3.00 |
