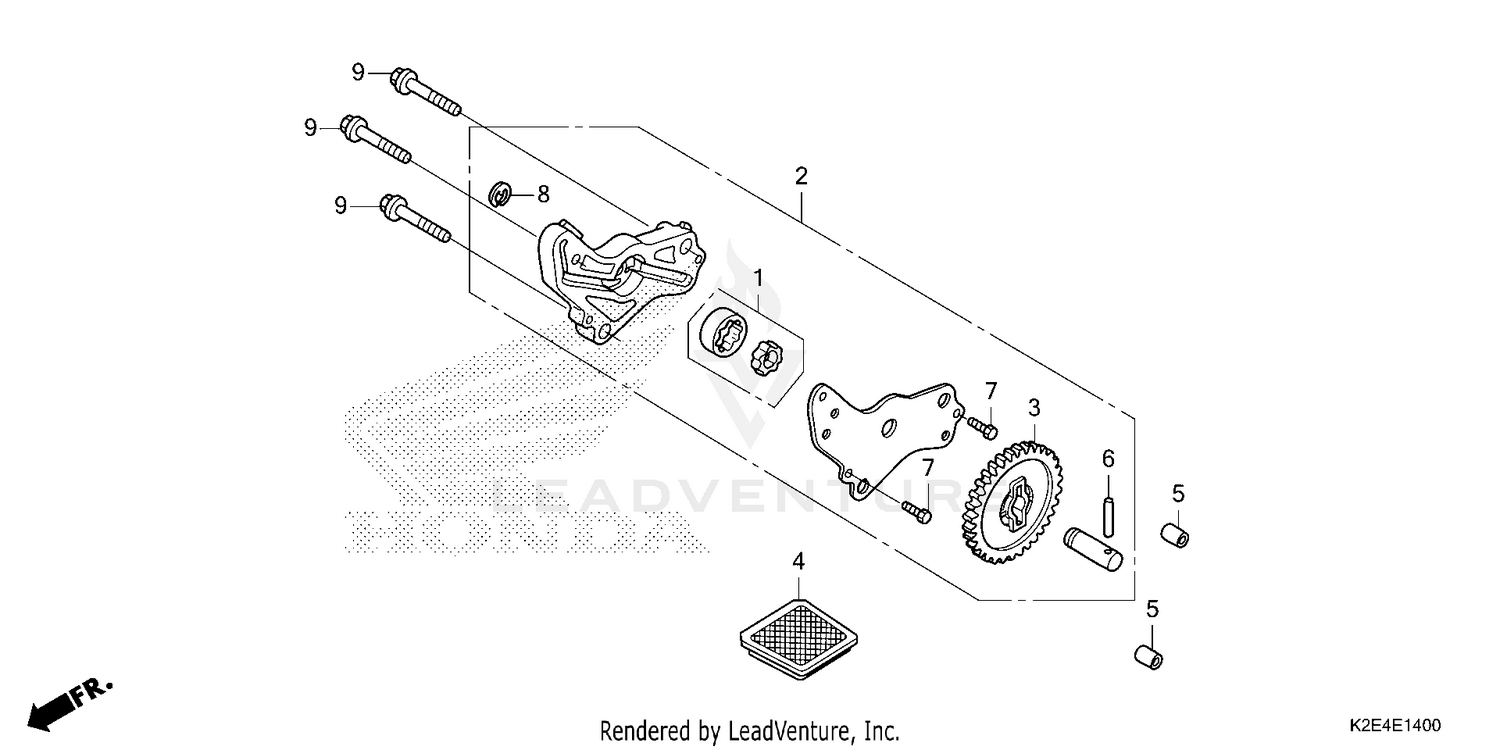

OIL PUMP
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 15021-GF6-000 | ROTOR SET, OIL PUMP Price: $25.09 |
| 2 | 15100-KTM-D20 | PUMP ASSY., OIL Price: $23.31 |
| 3 | 15133-KTM-D20 | GEAR, OIL PUMP DRIVEN (30T) Price: $27.35 |
| 4 | 15421-KSP-910 | SCREEN, OIL FILTER Price: $4.58 |
| 5 | 90702-KFM-900 | PIN, DOWEL (8X12) Price: $0.76 |
| 6 | 91105-KTM-970 | ROLLER (4X23.8) Price: $0.64 |
| 6 | 96220-40238 | ROLLER (4X23.8) Price: $0.82 |
| 7 | 93301-05012-0J | BOLT, HEX. (5X12) Price: $1.07 |
| 8 | 94540-06018 | E-RING (6MM) Price: $3.02 |
