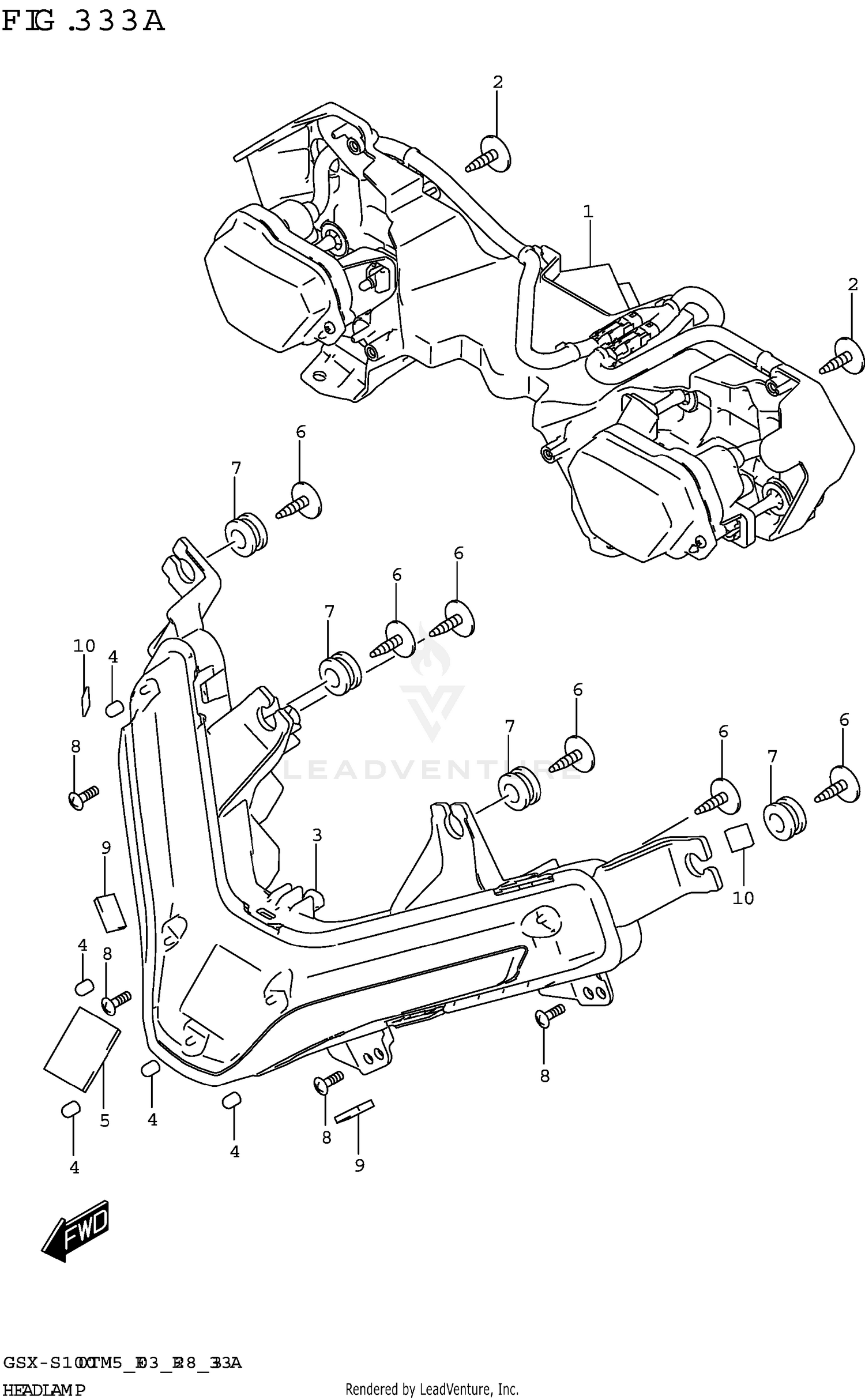

HEADLAMP
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35100-48KA3 | HEADLAMP ASSY Price: $901.36 |
| 2 | 09136-05062 | SCREW (5X15) Price: $2.64 |
| 3 | 36110-48KA0 | LAMP ASSY,FRONT POSITION Price: $178.71 |
| 4 | 44294-43H11 | CUSHION,FUEL TANK COVER Price: $2.67 |
| 6 | 09136-05062 | SCREW (5X15) Price: $2.64 |
| 7 | 09320-09016 | CUSHION (9X18X9.5) Price: $2.37 |
| 8 | 03541-0412B | SCREW Price: $1.50 |
| 9 | 33652-19B00 | CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00. Price: $7.65 |
