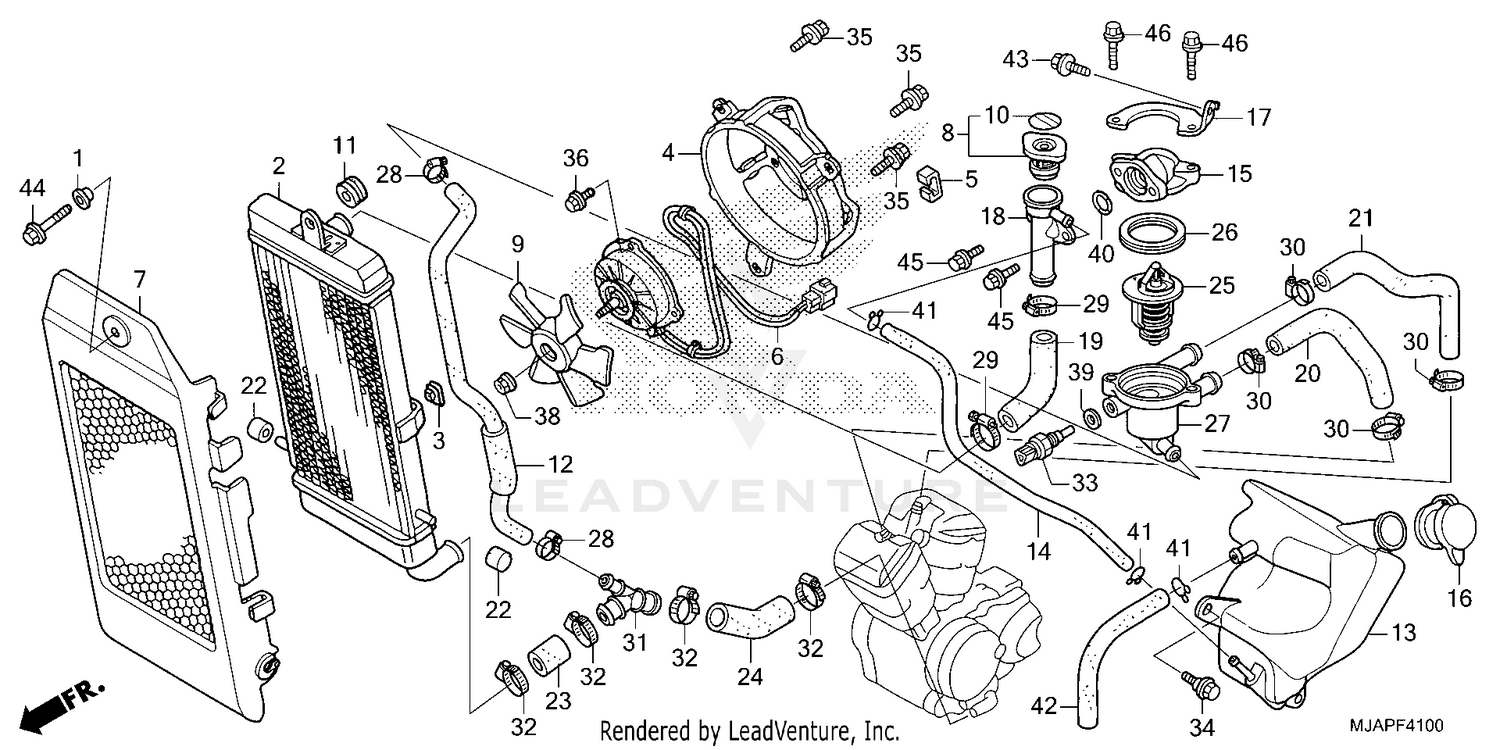

| Ref | Part Number | Description |
|---|
| 1 |
17216-HA7-670 |
COLLAR, AIR CLEANER SETTING Price: $7.73 |
| 2 |
19010-MFE-305 |
RADIATOR (COO) Price: $564.02 |
| 3 |
19014-KEA-003 |
NUT, SETTING (6MM) Price: $3.89 |
| 4 |
19015-MBA-305 |
SHROUD (COO) This part replaces 19015-MBA-003. Price: $61.44 |
| 5 |
19017-PK1-004 |
CLIP, HARNESS (T.RAD) Price: $10.10 |
| 6 |
19030-MFE-641 |
MOTOR ASSY., FAN Price: $294.89 |
| 7 |
19032-MEG-000 |
GRILLE, RADIATOR Price: $69.16 |
| 8 |
19037-GEE-710 |
CAP, RADIATOR Price: $36.69 |
| 9 |
19040-MF5-751 |
FAN, COOLING (TOYO) Price: $72.22 |
| 10 |
19046-PAA-A00 |
LABEL, RADIATOR CAP Price: $3.50 |
| 11 |
19051-KA3-710 |
RUBBER, RADIATOR MOUNTING Price: $6.35 |
| 12 |
19071-MFE-640 |
HOSE, BYPASS Price: $27.27 |
| 13 |
19101-MEG-000 |
TANK, RESERVE Price: $34.38 |
| 14 |
19102-MEG-000 |
HOSE, RESERVE TANK Price: $9.95 |
| 15 |
19103-MBA-000 |
CAP, THERMOSTAT Price: $56.22 |
| 16 |
19104-MB0-700 |
CAP, RESERVE TANK Price: $14.73 |
| 17 |
19105-MFE-640 |
STAY, THERMOSTAT CASE Price: $4.80 |
| 18 |
19106-MFE-641 |
NECK, FILLER Price: $37.27 |
| 19 |
19107-MFE-640 |
HOSE, RADIATOR (UPPER) Price: $11.16 |
| 20 |
19108-MFE-640 |
HOSE, FR. OUTLET WATER Price: $12.91 |
| 21 |
19110-MFE-640 |
HOSE, RR. OUTLET WATER Price: $15.56 |
| 22 |
19112-MF5-840 |
MOUNT, RADIATOR (LOWER) Price: $6.42 |
| 23 |
19115-MEG-A60 |
HOSE A, RADIATOR (LOWER) Price: $14.51 |
| 24 |
19116-MEG-A60 |
HOSE B, RADIATOR (LOWER) Price: $18.15 |
| 25 |
19300-MCH-A00 |
THERMOSTAT ASSY. Price: $57.89 |
| 26 |
19305-KV3-010 |
RUBBER, THERMOSTAT Price: $7.62 |
| 27 |
19311-MFE-640 |
CASE, THERMOSTAT Price: $65.85 |
| 28 |
19504-KY1-003 |
CLAMP, WATER HOSE (25MM) Price: $12.47 |
| 29 |
19505-ML3-770 |
CLAMP, WATER HOSE Price: $8.89 |
| 30 |
19506-KS6-700 |
CLAMP B, WATER HOSE Price: $9.42 |
| 31 |
19507-MFE-640 |
JOINT, THREE WAY HOSE Price: $7.05 |
| 32 |
19509-MM5-003 |
CLAMP, R. RADIATOR HOSE Price: $16.45 |
| 33 |
37870-KRJ-901 |
SENSOR ASSY., WATER TEMPERATURE Price: $37.25 |
| 34 |
90111-162-000 |
BOLT, FLANGE (6MM) Price: $3.29 |
| 35 |
90120-KCR-003 |
BOLT-WASHER (6X16) Price: $5.51 |
| 36 |
90196-MBB-003 |
BOLT, FLANGE (5X10) Price: $3.04 |
| 38 |
90315-MK3-003 |
NUT, SERRATE (5MM) Price: $2.65 |
| 39 |
90454-MC7-000 |
WASHER, SPECIAL (12MM) Price: $2.98 |
| 40 |
94608-30000 |
O-RING (23X2.4) Price: $1.36 |
| 41 |
95002-70000 |
CLIP, TUBE (C11) Price: $1.72 |
| 42 |
95005-70003-30M |
BULK HOSE, VACUUM (7X3000) (7X730) Price: $28.40 |
| 43 |
95701-06012-00 |
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) Price: $1.70 |
| 44 |
95701-06028-07 |
BOLT, FLANGE (6X28) Price: $1.29 |
| 45 |
96001-06012-00 |
BOLT, FLANGE (6X12) Price: $1.88 |
