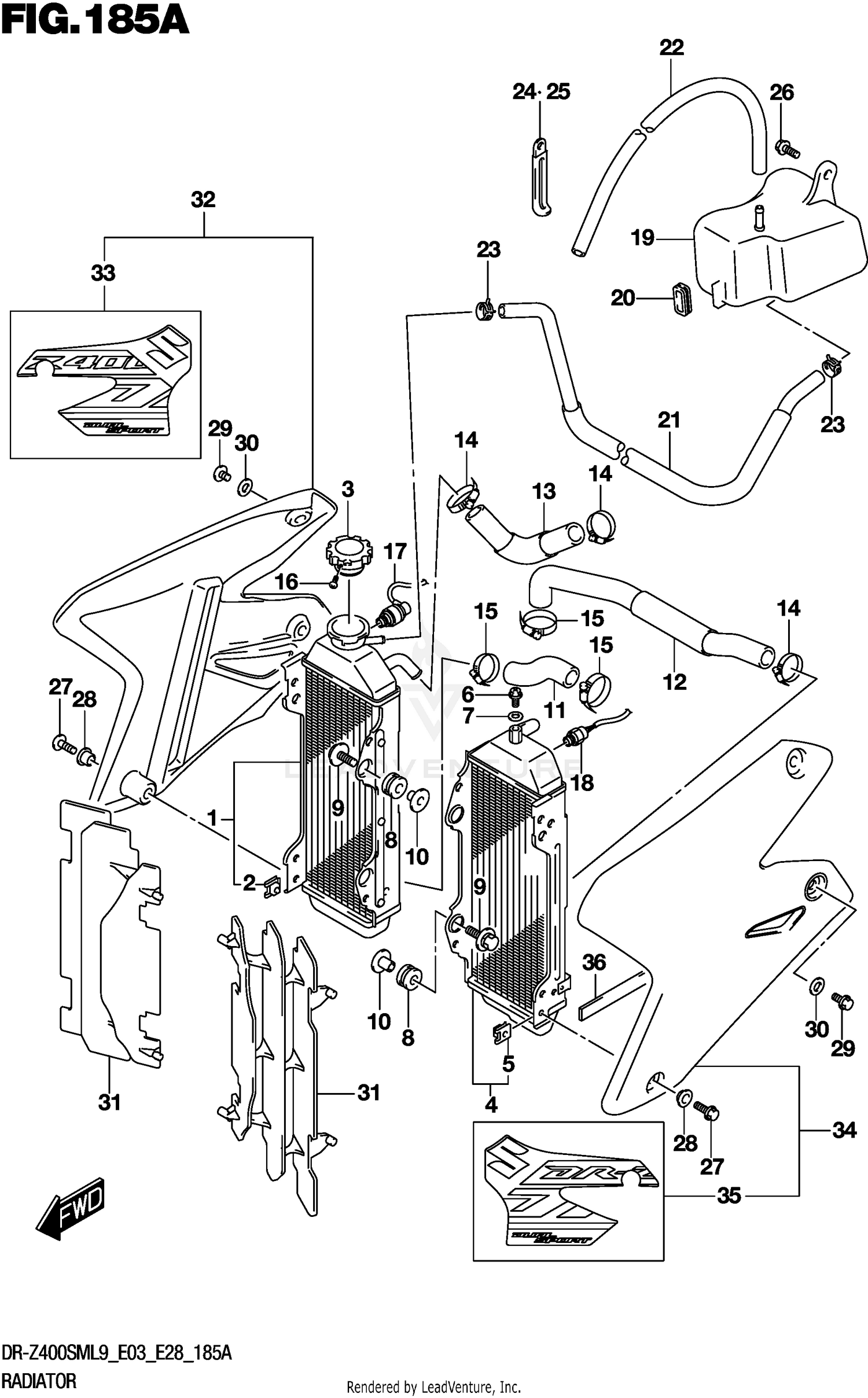

RADIATOR
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 17710-29F40 | RADIATOR WATER R Price: $630.45 |
| 3 | 17730-19D11 | CAP RADIATOR (1.1) Price: $52.28 |
| 4 | 17720-29F40 | RADIATOR WATER L Price: $655.34 |
| 6 | 17568-50F00 | UNION BOLT,AIR VENT Price: $6.05 |
| 7 | 09168-06026 | GASKET (6.4X11.5X0.84) Price: $3.78 |
| 8 | 17787-19A00 | CUSHION, RADIATOR SPRT Price: $4.40 |
| 9 | 09116-06147 | BOLT (6X25) Price: $3.95 |
| 10 | 09180-06243 | SPACER (6.5X10.5X14.1) Price: $6.64 |
| 11 | 17851-29F10 | HOSE RADIATOR INLET Price: $17.56 |
| 12 | 17852-29F30 | HOSE RADIATOR OUTLET Price: $54.34 |
| 13 | 17853-29F10 | HOSE RADIATOR JOINT Price: $28.83 |
| 14 | 09402-28513 | CLAMP Price: $8.51 |
| 15 | 09402-32512 | CLAMP Price: $13.50 |
| 16 | 17733-03D10 | SCREW,RADIATOR CAP Price: $2.85 |
| 17 | 34850-29F00 | SWITCH ASSY WATER TEMP Price: $134.23 |
| 18 | 17680-24A30 | SWITCH FAN Price: $133.91 |
| 19 | 17911-29F11 | TANK RESERVOIR Price: $61.63 |
| 20 | 17913-29F00 | CUSHION RESERVOIR TANK Price: $4.79 |
| 21 | 17981-29F01 | HOSE RESERVOIR TANK INLET Price: $22.73 |
| 23 | 09401-08411 | CLIP (ID:8.6) Price: $2.15 |
| 24 | 09404-08211 | CLAMP (L:45) This part replaces 09404-08205. Price: $2.35 |
| 25 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 26 | 01550-0612A | BOLT Price: $2.37 |
| 27 | 09103-06274 | BOLT (6X16) Price: $2.45 |
| 28 | 09169-06053 | WASHER Price: $1.35 |
| 29 | 09103-06275 | BOLT (6X8) Price: $2.50 |
| 30 | 09160-06125 | WASHER (6.5X14X1.6) Price: $2.30 |
| 31 | 17831-37E11 | LOUVER RADIATOR Price: $23.56 |
