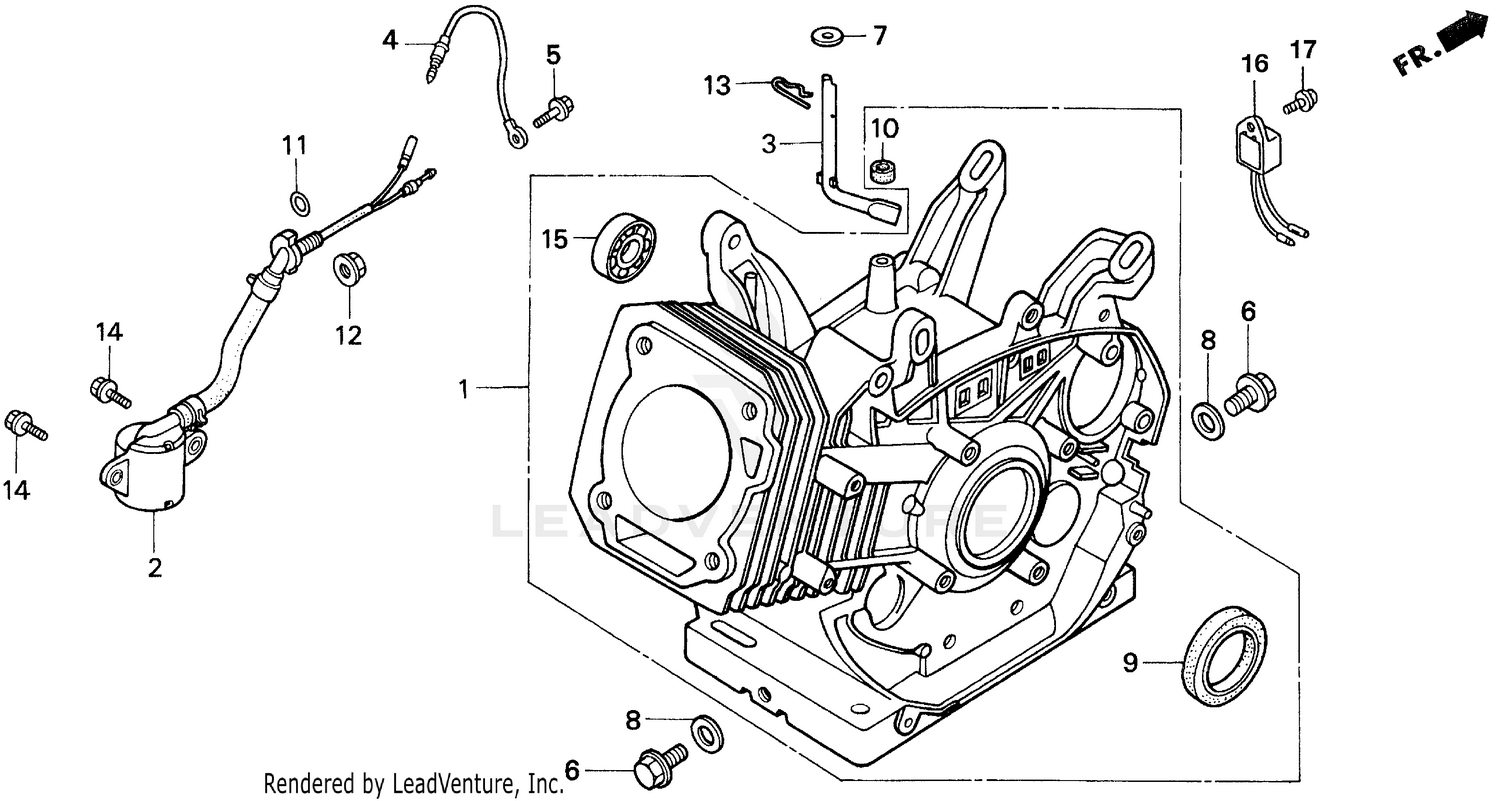

| Ref | Part Number | Description |
|---|
| 1 |
12000-ZE3-416 |
SEE PART DETAILS - PRI; CYLINDER ASSY. (ALERT) Price: $799.68 |
| 3 |
16541-ZE3-010 |
SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM (Honda Code 4717393). Price: $15.38 |
| 6 |
90131-896-650 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231). Price: $2.76 |
| 7 |
90446-KE1-000 |
WASHER (8.2X17X0.8) (Honda Code 2027134). Price: $2.22 |
| 8 |
94109-12000 |
SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868). Price: $1.54 |
| 9 |
91201-ZE3-004 |
OIL SEAL (35X52X8) (Honda Code 2108595). Price: $10.94 |
| 10 |
91201-ZE9-003 |
SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713). Price: $5.26 |
| 11 |
91353-671-003 |
SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254. Price: $3.60 |
| 12 |
94050-10000 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867). Price: $1.94 |
| 13 |
94251-10000 |
PIN, LOCK (10MM) (Honda Code 0159269). Price: $1.50 |
| 14 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 15 |
96100-62020-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941). Price: $11.68 |
| 16 |
34150-ZH7-023 |
SEE PART DETAILS - PRI; ALERT UNIT, OIL Price: $52.34 |
