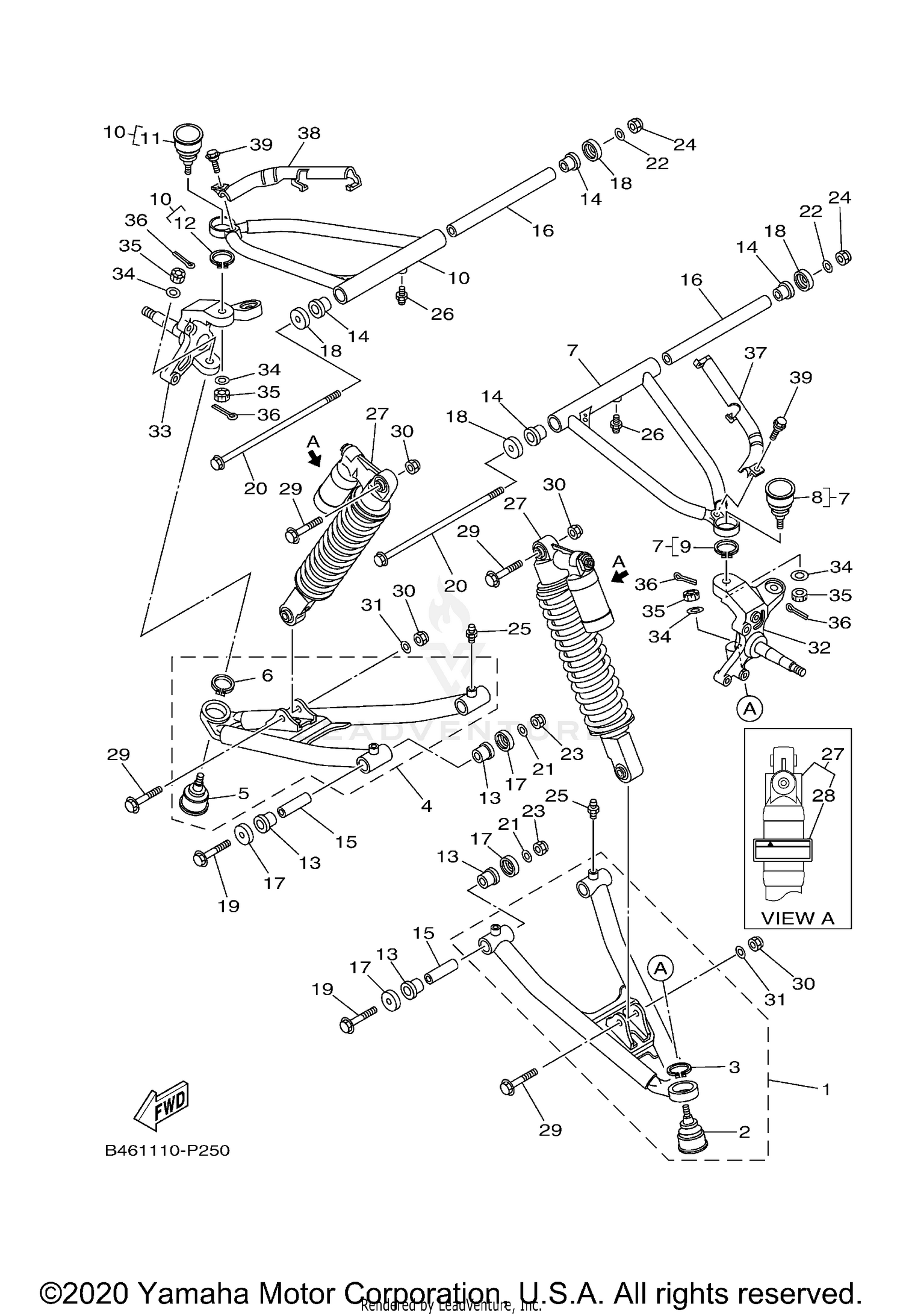

| Ref | Part Number | Description |
|---|
| 2 |
5LP-23579-00-00 |
BALL JOINT 2 Price: $71.99 |
| 3 |
99009-30400-00 |
CIRCLIP Price: $9.49 |
| 5 |
5LP-23579-00-00 |
BALL JOINT 2 Price: $71.99 |
| 6 |
99009-30400-00 |
CIRCLIP Price: $9.49 |
| 8 |
5LP-23579-00-00 |
BALL JOINT 2 Price: $71.99 |
| 9 |
99009-30400-00 |
CIRCLIP Price: $9.49 |
| 11 |
5LP-23579-00-00 |
BALL JOINT 2 Price: $71.99 |
| 12 |
99009-30400-00 |
CIRCLIP Price: $9.49 |
| 13 |
90381-15088-00 |
BUSH, SOLID Price: $23.99 |
| 14 |
90381-15088-00 |
BUSH, SOLID Price: $23.99 |
| 15 |
90387-101R3-00 |
COLLAR Price: $21.99 |
| 16 |
90387-100Y6-00 |
COLLAR Price: $36.99 |
| 17 |
1UY-23517-01-00 |
COVER, THRUST 1 Price: $7.49 |
| 18 |
1UY-23517-01-00 |
COVER, THRUST 1 Price: $7.49 |
| 19 |
90105-10135-00 |
BOLT, FLANGE Price: $6.49 |
| 20 |
90105-10651-00 |
BOLT, FLANGE This part replaces 90105-10132-00. Price: $12.49 |
| 21 |
90201-10037-00 |
WASHER, PLATE Price: $8.49 |
| 22 |
90201-10037-00 |
WASHER, PLATE Price: $8.49 |
| 23 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 24 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 25 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 26 |
93700-06M03-00 |
NIPPLE, GREASE This part replaces 93700-06004-00. Price: $8.25 |
| 27 |
B46-F3390-61-00 |
SHOCK ABSORBER ASSY 2 This part replaces B46-F3390-60-00. Price: $582.99 |
| 28 |
1HP-F2259-01-00 |
LABEL, WARNING Price: $23.99 |
| 29 |
90105-10131-00 |
BOLT, FLANGE Price: $6.49 |
| 30 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 31 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 32 |
1S3-23501-01-00 |
STEERING KNUCKLE ASSY (LEFT) Price: $361.99 |
| 33 |
1S3-23502-01-00 |
STEERING KNUCKLE ASSY (RIGHT) Price: $367.99 |
| 34 |
90209-10229-00 |
WASHER Price: $8.49 |
| 35 |
90171-10001-00 |
NUT, CASTLE Price: $3.55 |
| 36 |
91490-20025-00 |
PIN, COTTER This part replaces 91402-20020-00. Price: $1.99 |
| 37 |
2LS-F5875-00-00 |
HOLDER, BRAKE HOSE 1 Price: $4.45 |
| 38 |
2LS-F5876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $4.45 |
