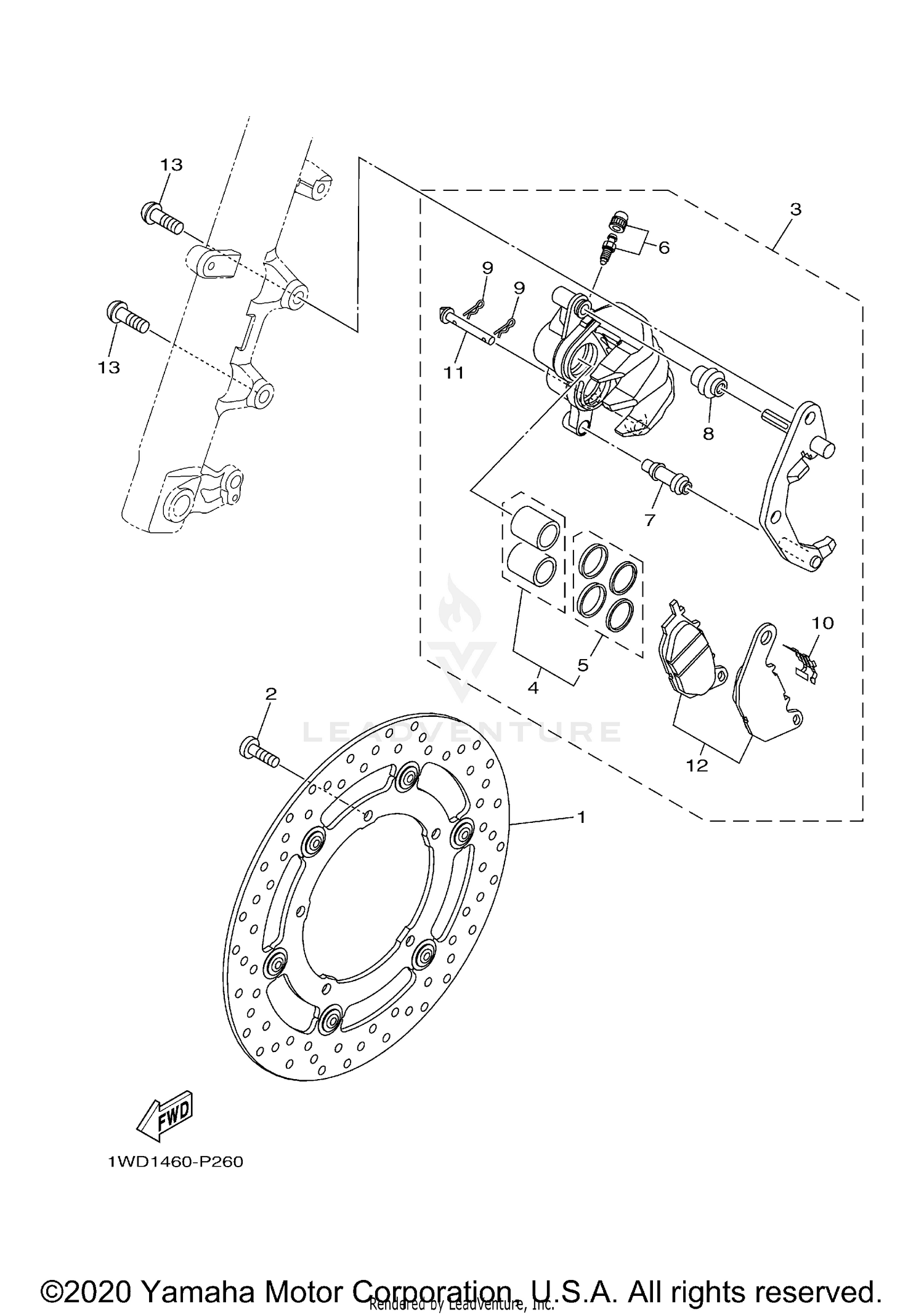

FRONT BRAKE CALIPER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1WD-F581U-01-00 | DISK BRAKE ASSY (RIG Price: $172.99 |
| 2 | 90111-08084-00 | BOLT,HEX. SOCKET BUT This part replaces 90111-08087-00. Price: $6.49 |
| 3 | 1WD-F580U-01-00 | CALIPER ASSY (RIGHT) Price: $200.99 |
| 4 | 1WD-25802-00-00 | PISTON ASSY, CALIPER Price: $32.99 |
| 5 | 1WD-25803-00-00 | CALIPER SEAL KIT Price: $14.99 |
| 6 | 15B-W0048-00-00 | BLEED SCREW KIT This part replaces 4C9-W0048-00-00. Price: $21.99 |
| 7 | 5YP-F5937-00-00 | BOOT 2 Price: $3.70 |
| 8 | 5YP-F5917-00-00 | BOOT, CALIPER Price: $3.50 |
| 9 | 5YP-F5925-01-00 | CLIP Price: $0.60 |
| 10 | 1WD-F5919-00-00 | SUPPORT, PAD Price: $4.55 |
| 11 | 5YP-F5924-00-00 | PIN, PAD Price: $3.60 |
| 12 | 1WD-25805-00-00 | BRAKE PAD KIT Price: $67.99 |
