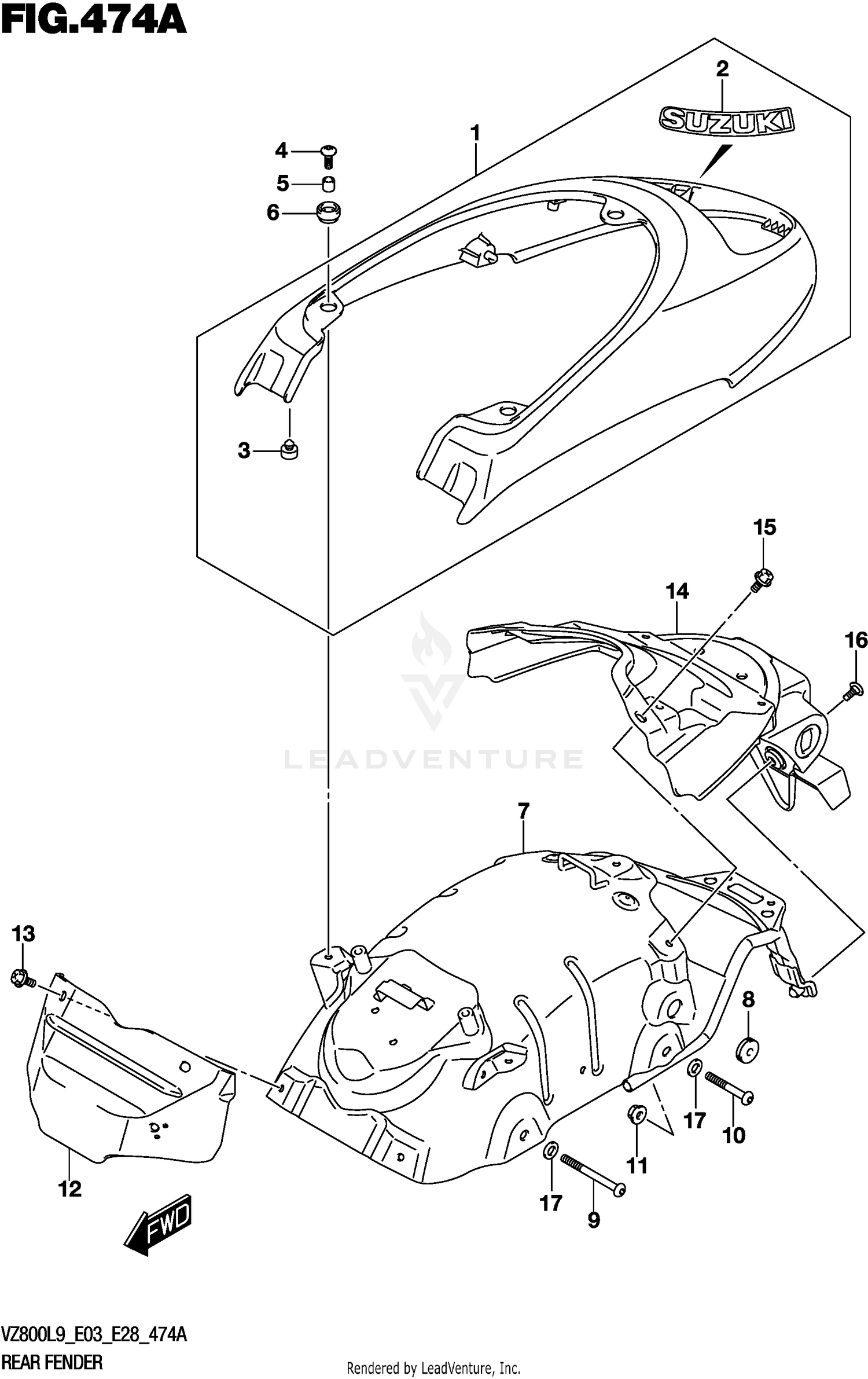

REAR FENDER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63110-39G51-PGZ | FENDER COMP,REA This part replaces 63110-39G50-PGZ. Price: $276.63 |
| 2 | 68641-19F01-AHW | EMBLEM,"SUZUKI" This part replaces 68641-19F00-AHW. Price: $11.05 |
| 3 | 09250-06017 | PLUG (OD:10) This part replaces 09250-06012. Price: $3.20 |
| 4 | 09136-06105 | SCREW (6X20) Price: $2.41 |
| 5 | 09180-06283 | SPACER (6.5X10X7) Price: $2.30 |
| 7 | 63140-39G00 | BRACE Price: $410.62 |
| 8 | 09320-08029 | CUSHION Price: $2.83 |
| 9 | 09106-08182 | BOLT (8X70) Price: $5.16 |
| 10 | 09106-08183 | BOLT (8X50) Price: $4.56 |
| 11 | 08316-1008A | NUT Price: $2.99 |
| 12 | 63112-39G50 | FENDER Price: $10.92 |
| 13 | 09111-06107 | BOLT (6X12) Price: $3.02 |
| 14 | 63311-39G01 | EXTENSION Price: $65.22 |
| 15 | 09111-06107 | BOLT (6X12) Price: $3.02 |
| 16 | 09139-06144 | SCREW (6X12) Price: $3.02 |
