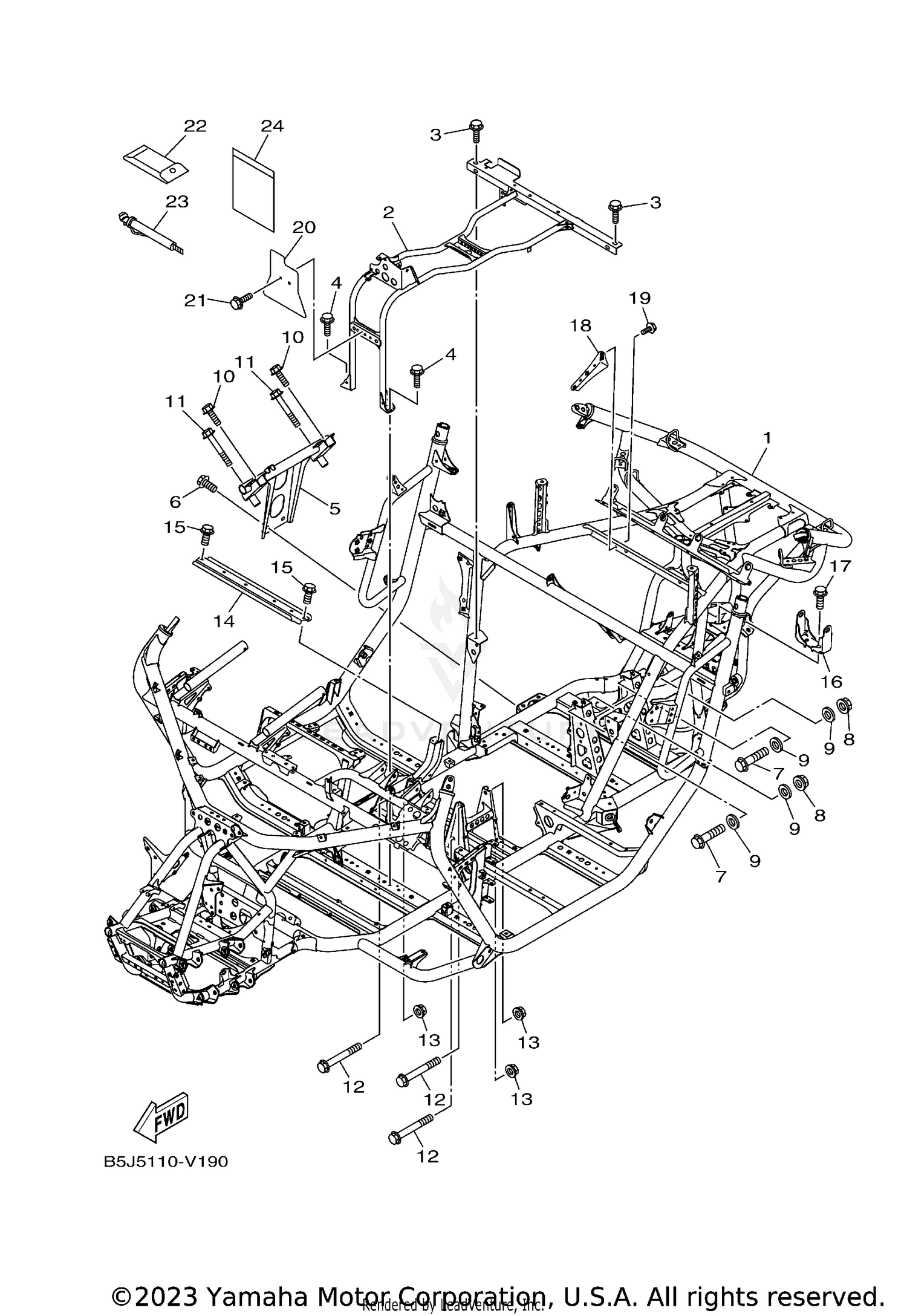

| Ref | Part Number | Description |
|---|
| 1 |
BAS-F1110-10-00 |
FRAME COMP. Price: $5,365.99 |
| 2 |
B5J-F111B-00-00 |
FRAME SUB COMP. Price: $280.99 |
| 3 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 4 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 5 |
B5H-F110A-10-00 |
ENG. MOUNT COMP. Price: $115.99 |
| 6 |
95812-10016-00 |
BOLT, FLANGE Price: $10.49 |
| 7 |
95812-12070-00 |
BOLT, FLANGE Price: $5.49 |
| 8 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 9 |
92990-12200-00 |
WASHER, PLAIN This part replaces 92902-12200-00. Price: $9.49 |
| 10 |
95812-08020-00 |
BOLT, FLANGE Price: $2.80 |
| 11 |
95817-08055-00 |
BOLT, FLANGE This part replaces 95812-08055-00. Price: $4.21 |
| 12 |
90105-10176-00 |
BOLT, FLANGE Price: $13.49 |
| 13 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 14 |
2HC-F1349-11-00 |
BRACKET, SEAT This part replaces 2HC-F1349-10-00. Price: $17.99 |
| 15 |
95817-08025-00 |
BOLT, FLANGE This part replaces 95812-08025-00. Price: $9.49 |
| 16 |
2HC-F194J-00-00 |
STAY, MUFFLER Price: $19.99 |
| 17 |
95812-10016-00 |
BOLT, FLANGE Price: $10.49 |
| 18 |
B5H-F115C-00-00 |
BRACKET Price: $8.49 |
| 19 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 20 |
B5H-F286H-01-00 |
COVER, FRONT This part replaces B5H-F286H-00-00. Price: $18.49 |
| 21 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 Price: $1.75 |
| 22 |
5B4-F8100-00-00 |
TOOL KIT Price: $47.99 |
| 23 |
1XD-F811A-00-00 |
GAUGE, AIR Price: $7.49 |
