| Ref | Part Number | Description |
|---|
| 4 |
32100-V15-S60 |

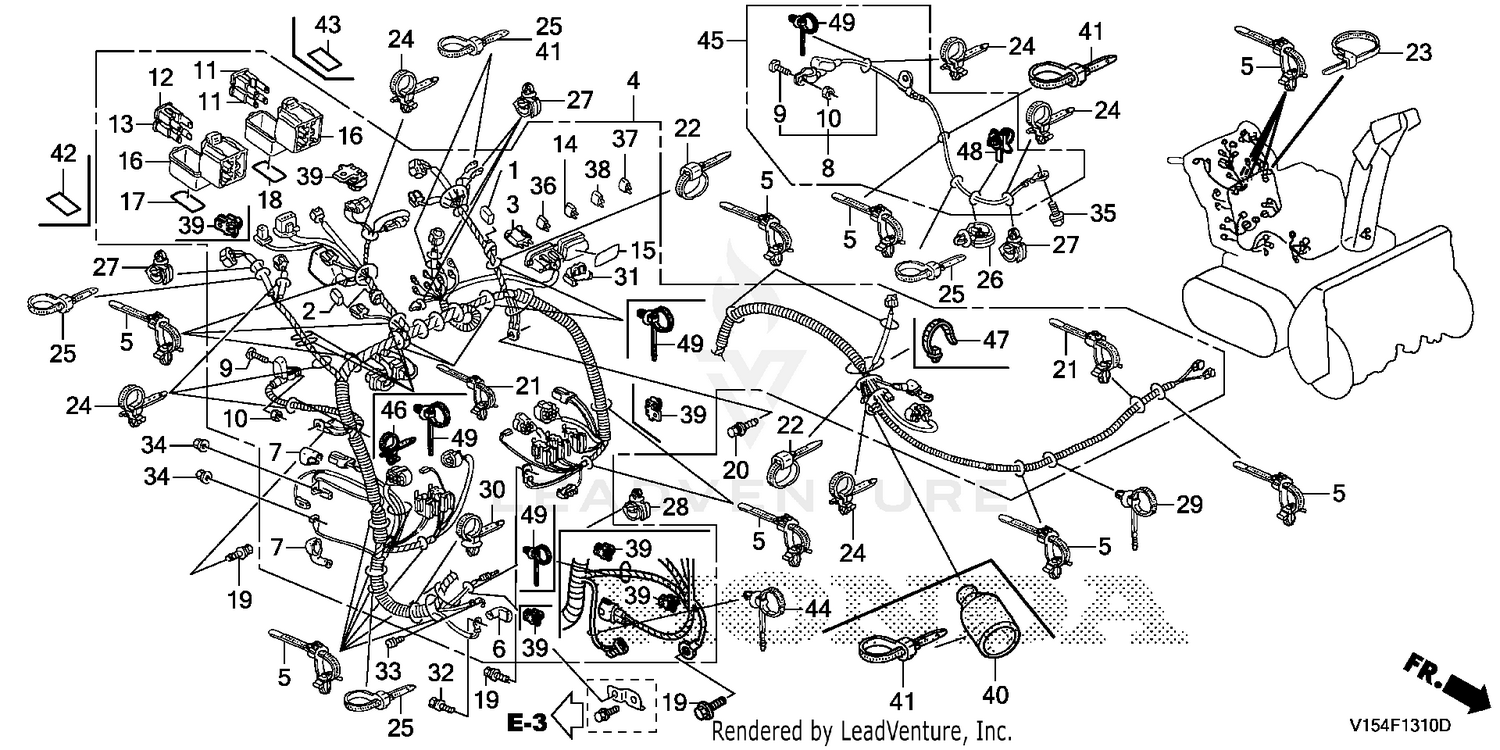

WIRE HARNESS ASSY., MAIN Price: $722.84 |
| 5 |
32161-V15-003 |
BAND, WIRE HARNESS Price: $4.78 |
| 9 |
32601-SK7-900 |
SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL Price: $11.88 |
| 10 |
32602-SK7-900 |
NUT, BATTERY TERMINAL Price: $7.28 |
| 11 |
38201-V15-003 |
FUSE (80A) (BLOCK) Price: $9.58 |
| 12 |
38202-762-003 |
FUSE, BLOCK (70A) Price: $12.80 |
| 15 |
38219-V15-N00 |
LABEL, BLADE FUSE Price: $6.96 |
| 16 |
38221-762-003 |
CASE, MAIN FUSE Price: $25.82 |
| 17 |
87117-V15-N00 |
MARK, MAIN FUSE Price: $7.94 |
| 18 |
87118-V15-000 |
MARK, MOTOR FUSE Price: $7.56 |
| 19 |
90148-SE0-003 |
BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN) Price: $10.86 |
| 20 |
90148-759-013 |
BOLT (6X19 SN) Price: $2.26 |
| 21 |
90649-SC2-003 |
BAND, WIRE HARNESS (150MM) (NATURAL) DUAL QTY = (2) (SINGLE) Price: $8.76 |
| 22 |
90650-KV6-003 |
BAND, WIRE (95MM) Price: $4.30 |
| 24 |
90672-SB2-003 |
STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK) Price: $7.22 |
| 25 |
90679-SG9-E01 |
BAND, SUCTION HOSE (BLACK) Price: $4.68 |
| 27 |
90683-SA0-003 |
CLIP, WIRE HARNESS (25MM) (Honda Code 1226265). Price: $12.48 |
| 31 |
91565-SH3-003 |
CLIP, CONNECTOR HOLDER (BROWN) Price: $7.54 |
| 35 |
95701-06010-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876). Price: $1.58 |
| 36 |
98200-40500 |
FUSE, MINI (5A) Price: $1.52 |
| 37 |
98200-41500 |
FUSE, MINI (15A) Price: $1.52 |
| 39 |
91565-S0X-003 |
CLIP, CONNECTOR (DARK GREEN) Price: $4.56 |
| 40 |
32108-KFG-000 |
COVER, CONNECTOR (NOT AVAILABLE) Price: $4.46 |
| 41 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $4.38 |
| 45 |
32600-V15-S50 |
CABLE, BATTERY GROUND Price: $30.78 |
| 46 |
90672-SA0-003 |
STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK) Price: $9.42 |
| 47 |
91507-SNA-003 |
CLIP, HARNESS BAND (164.5MM) (BROWN) Price: $0.72 |
| 48 |
91540-SYY-003 |
CLIP, BAND HARNESS (162.7MM) Price: $8.92 |
